447-426

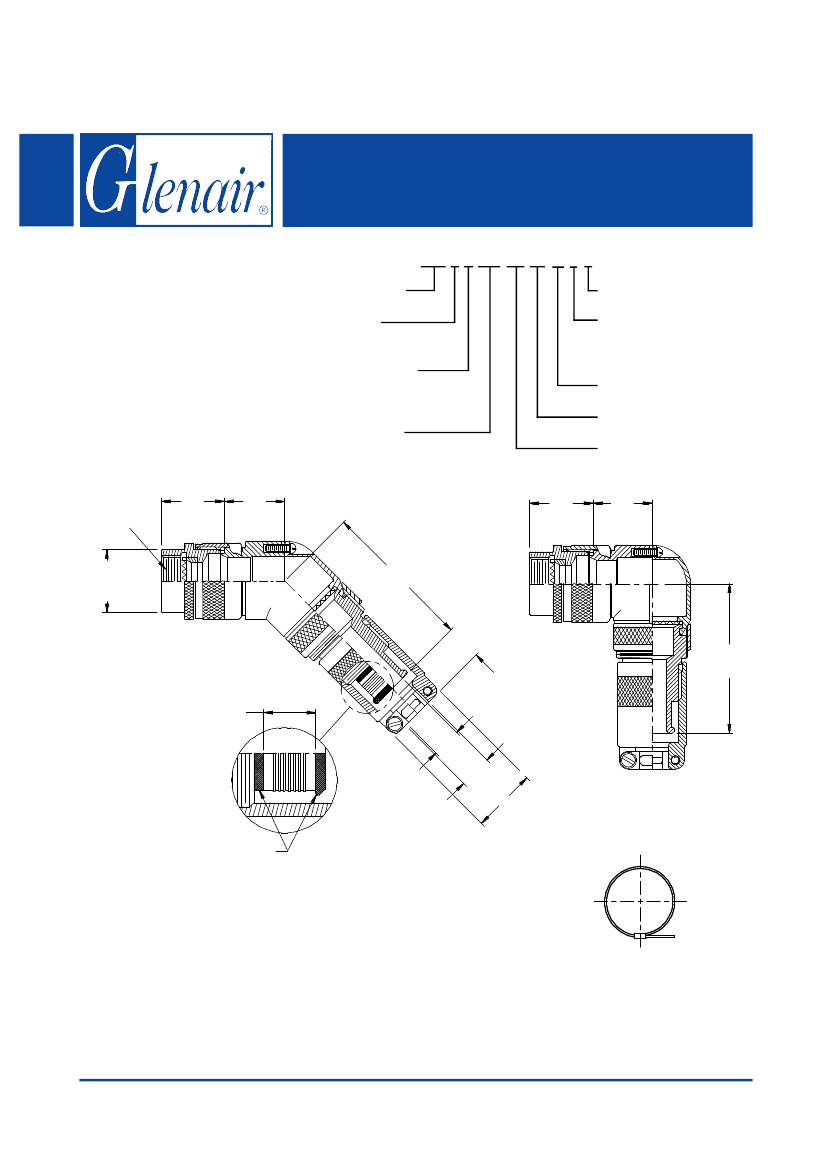

EMI/RFI Non-Environmental Band-in-a-Can Backshell
with Cable Clamp Strain-Relief
Direct Coupling - Split Shell
447 F D 426 NF 16 12 K P
447
A-B -C-D-E-F
G-H-J-K-L-S
* Conn. Desig. B See Note 2
CONNECTOR
DESIGNATORS
*
Product Series
Connector
Designator
Angle and Profile
D = Split 90
F = Split 45
Basic Part No.
Polysulfide (Omit for none)
B = Band
K = Precoiled Band
(Omit for none)
Cable Range (Table V)
Shell Size (Table I)
Finish (Table II)
DIRECT COUPLING
A Thread
(Table I)
J
(Table III)
E
(Table IV)
J
G
(Table III) (Table IV)
B Typ.
(Table I)
F (Table IV)
Split 45°
Split 90°
.500 (12.7)
Max
H
(Table IV)
Termination Area
Free of Cadmium
Knurl or Ridges
Mfr's Option
K*
Cable
Range
L*
* (Table V)
Polysulfide Stripes
P Option
Band Option
(K Option Shown -
See Note 3)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 447 - Page 14
with Cable Clamp Strain-Relief
Direct Coupling - Split Shell
See inside back cover fold-out or
pages 13 and 14 for Tables I and II.
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
D-B-G-K
J-H-L-S
C
1.180 (30.0) 1.250 (31.8)
1.180 (30.0) 1.250 (31.8)
1.180 (30.0) 1.250 (31.8) 1.735 (44.1)
1.180 (30.0) 1.250 (31.8) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
Elbow
Size
10/12
14
16/18
20
22
24
28
32
TABLE IV: ELBOW DIMENSIONS
E
F
G
Max
Max
Max
.500 (12.7) 1.870 (47.5) .750 (19.1)
.560 (14.2) 1.940 (49.3) .810 (20.6)
.680 (17.3) 2.070 (52.6) .930 (23.6)
.750 (19.1) 2.130 (54.1) 1.000 (25.4)
.820 (20.8) 2.190 (55.6) 1.060 (26.9)
.880 (22.4) 2.250 (57.2) 1.120 (28.4)
.940 (23.9) 3.100 (78.7) 1.180 (30.0)
.990 (25.1) 2.400 (61.0) 1.340 (34.0)
H
Max
1.810 (46.0)
1.880 (47.8)
2.010 (51.1)
2.070 (52.6)
2.130 (54.1)
2.190 (55.6)
2.250 (57.2)
2.410 (61.2)
Dash
No.
10
12
14
16
18
20
22
24
28
32
K
±.030
.220
.310
.440
.560
.630
.750
.880
1.000
1.060
1.190
TABLE V: CABLE RANGE
Cable Range
L
Max
Min
±(.8)
Max
.130 (3.3) .250 (6.4)
(5.6) 1.000 (25.4)
.250 (6.4) .380 (9.7)
(7.9) 1.250 (31.8)
.310 (7.9) .440 (11.2)
(11.2) 1.340 (34.0)
.375 (9.5) .630 (16.0)
(14.2) 1.470 (37.3)
.560 (14.2) .690 (17.5)
(16.0) 1.560 (39.6)
.630 (16.0) .750 (19.1)
(19.1) 1.620 (41.1)
.750 (19.1) .880 (22.4)
(22.4) 1.750 (44.5)
.880 (22.4) 1.000 (25.4)
(25.4) 1.870 (47.5)
(26.9) 1.970 (50.0) 1.000 (25.4) 1.130 (28.7)
(30.2) 2.090 (53.1) 1.130 (28.7) 1.250 (31.8)
1. Metric dimensions (mm) are indicated in parentheses.
2. When using Connector Designator B refer to pages 18
and 19 for part number development.
3. Backshells supplied with 600-052-* band, see Glenair
Series 600 Tool Catalog for installation.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 447 - Page 15
