447-427

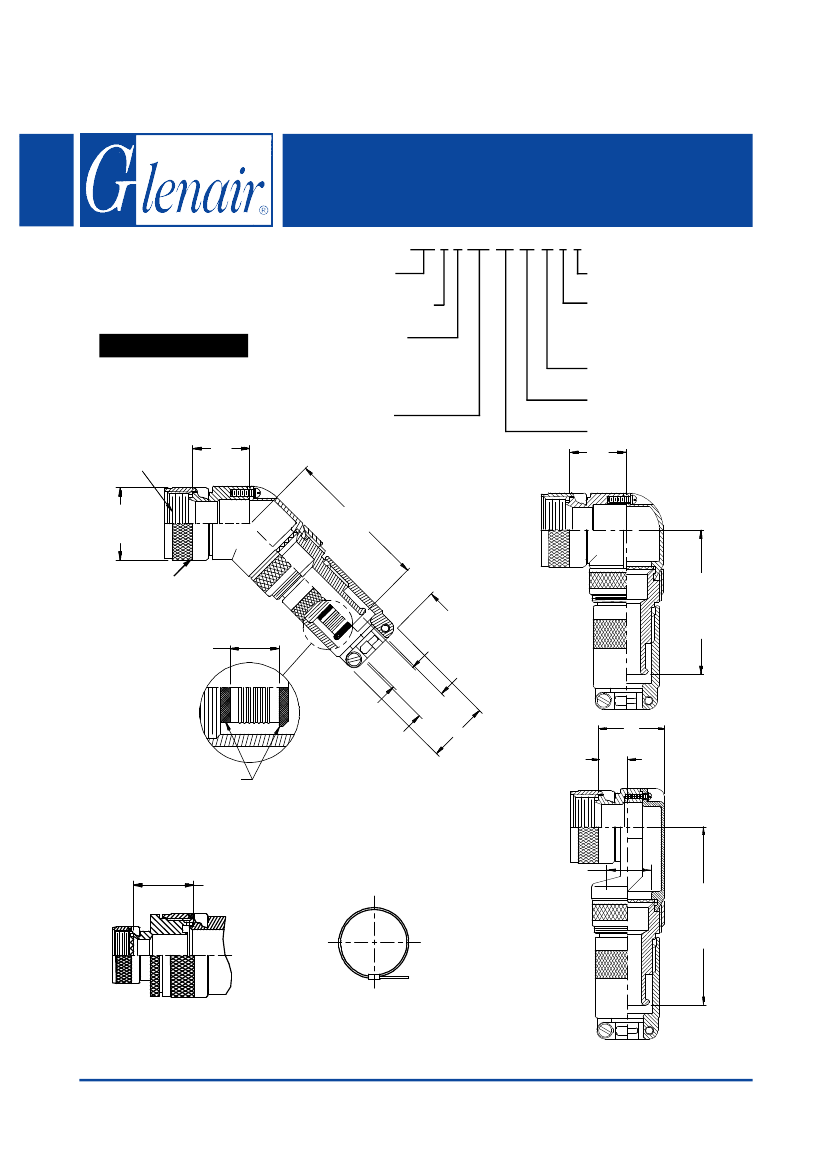

EMI/RFI Non-Environmental Band-in-a-Can Backshell
with Cable Clamp Strain-Relief
Self-Locking Rotatable Coupling - Split Shell
447 F D 427 NF 16 12 K P
447
CONNECTOR
DESIGNATORS
Product Series
Connector Designator
Angel and Profile
C = Low Profile Split 90
D = Split 90
F = Split 45
Basic Part No.
Polysulfide (Omit for none)
B = Band
K = Precoiled Band
(Omit for none)
Cable Range (Table IV)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
A Thread
(Table I)
F
(Table III)
H
(Table III)
E Typ.
(Table I)
G (Table III)
Anti-Rotation
Device (Typ.)
Split 90°
Split 45°
.500 (12.7)
Max
N **
Cable
Range
J
(Table
III)
Termination Area
Free of Cadmium
Knurl or Ridges
Mfr's Option
P **
** (Table IV)
Polysulfide Stripes
P Option
K (Table III)
M
(Table III)
1.00 (25.4)
Max
Max Wire
Bundle
(Table III,
Note 1)
L
(Table
III)
STYLE 2
(See Note 1)
© 2005 Glenair, Inc.
Band Option
(K Option Shown -
See Note 3)
CAGE Code 06324
Ultra Low-
Profile Split
90°
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 447 - Page 20
with Cable Clamp Strain-Relief
Self-Locking Rotatable Coupling - Split Shell
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
F
Shell
Max
Size
08/09 .596 (15.1)
10/11 .656 (16.7)
12/13 .716 (18.2)
14/15 .776 (19.7)
16/17 .836 (21.2)
18/19 .906 (23.0)
20/21 .976 (24.8)
22/23 1.036 (26.3)
24/25 1.096 (27.8)
G
Max
1.840 (46.7)
1.900 (48.3)
1.970 (50.0)
2.000 (50.8)
2.100 (53.3)
2.160 (54.9)
2.220 (56.4)
2.280 (57.9)
2.340 (59.4)
H
Max
.836 (21.2)
.906 (23.0)
.966 (24.5)
1.026 (26.1)
1.086 (27.6)
1.156 (29.4)
1.216 (30.9)
1.276 (32.4)
1.336 (33.9)
J
Max
1.780 (45.2)
1.840 (46.7)
1.910 (48.5)
1.940 (49.3)
2.040 (51.8)
2.100 (53.3)
2.160 (54.9)
2.220 (56.4)
2.280 (57.9)
K
Ref
.496 (12.6)
.426 (10.8)
.426 (10.8)
.436 (11.1)
.576 (14.6)
.796 (20.2)
.796 (20.2)
.696 (17.7)
.696 (17.7)
L
Max
2.120 (53.8)
2.280 (57.9)
2.280 (57.9)
2.350 (59.7)
2.400 (61.0)
2.430 (61.7)
2.430 (61.7)
2.580 (65.5)
2.580 (65.5)
Function C Max
M
Wire Bundle
Max
.250 (6.4)
.837 (21.3)
.375 (9.5)
.887 (22.5)
.375 (9.5)
.887 (22.5)
.500 (12.7)
.987 (25.1)
.625 (15.9)
1.137 (28.9)
.625 (15.9)
1.337 (34.0)
.625 (15.9)
1.337 (34.0)
.750 (19.1)
1.337 (34.0)
.750 (19.1)
1.337 (34.0)
Dash
No.
10
12
14
16
18
20
22
24
28
32
TABLE IV: CABLE RANGE
N
Cable Range
P
±.030 ±(.8)
Min
Max
Max
.220 (5.6) 1.000 (25.4)
.130 (3.3) .250 (6.4)
.310 (7.9) 1.250 (31.8)
.250 (6.4) .380 (9.7)
.440 (11.2) 1.340 (34.0)
.310 (7.9) .440 (11.2)
.375 (9.5) .630 (16.0)
.560 (14.2) 1.470 (37.3)
.630 (16.0) 1.560 (39.6)
.560 (14.2) .690 (17.5)
.750 (19.1) 1.620 (41.1)
.630 (16.0) .750 (19.1)
.880 (22.4) 1.750 (44.5)
.750 (19.1) .880 (22.4)
1.000 (25.4) 1.870 (47.5)
.880 (22.4) 1.000 (25.4)
1.060 (26.9) 1.970 (50.0) 1.000 (25.4) 1.130 (28.7)
1.190 (30.2) 2.090 (53.1) 1.130 (28.7) 1.250 (31.8)
1. When maximum cable entry (page 21) is exceeded, Style 2 will be
supplied. Dimensions F, G, H, and J will not apply. Please
consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Backshells supplied with 600-052-* band, see Glenair Series 600
Tool Catalog for installation.
4. Angular function "C", low-profile split elbow, not available with "S"
connector designator.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 447 - Page 21
