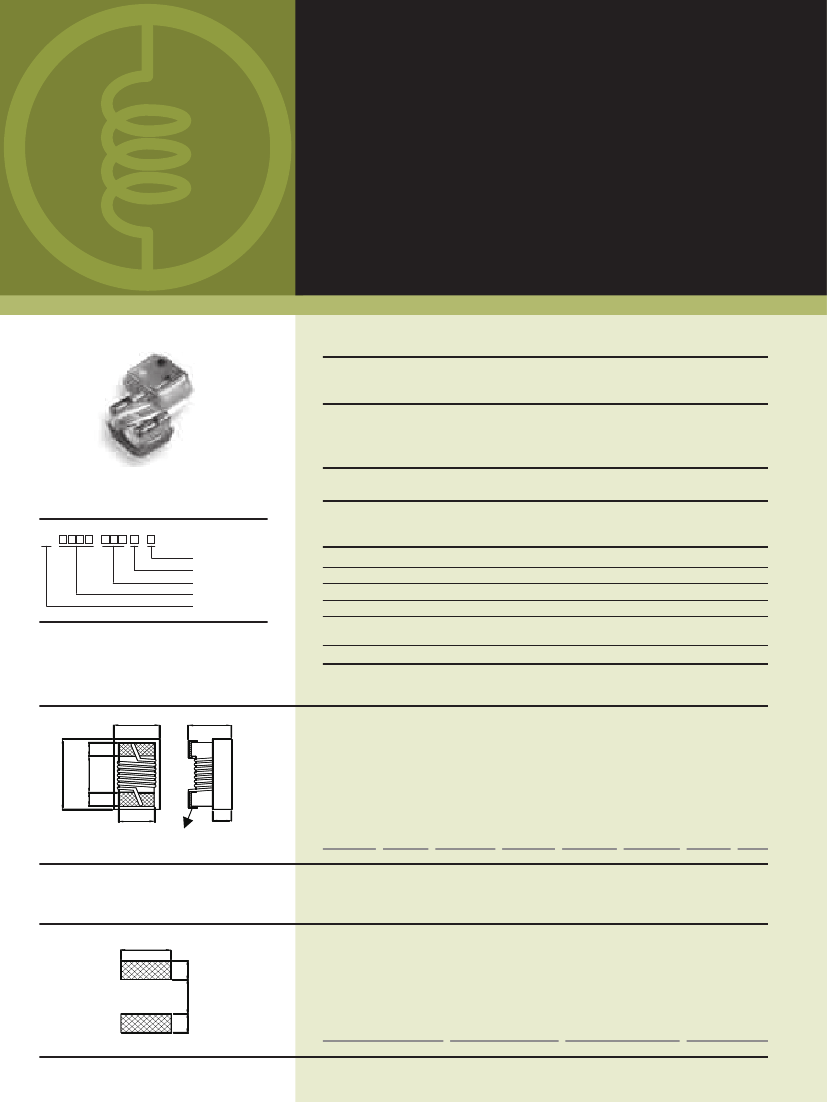

YAGEO CORPORATION
SMD INDUCTOR / BEADS
Wire Wound Ceramic
Chip Inductors
CT Series
Lead-free / Open Type Wire Wound Chip Inductors
Due to technical expertise of accurately wounding skill,these chip inductors are designed as
filtering,impedance matching, resonance and choke circuits for RF designer. The stand series as well
as customer design to meet your needs of telecom & wireless products.
applICaTIOns
pROduCT IdenTIFICaTIOn
CT
-
-
Intemal No.
Tolerance
Inductance
Dimensions
Product Symbol
RF products for cellular phone,GPS receiver,Base Station,Repeater,Wireless LAN/ Mouse/ Key-
board/ earphone,remote control,security system and other RF modules.
FeaTuRes
Meet SONY SS-00259's criteria for lead-free product.
Ceramic body and wire wound construction provide highest SRFs.
These ultra-compact inductors provided exceptional Q values, even at high frequencies.
Their ceramic construction delivers the highest possible SRFs as well as excellent Q values.
The non-magnetic coil form also assures the utmost in thermal stability,predictability and betch con-
sistency.
Atjust 1.02mm high,CT0805 is the lowest profile SMD inductor among 0805 series.
Tolerance :G=±2%, J=±5%, K=±10%
shapes and dIMensIOns
B
F
C
Dimensions : mm
A
F
E
G
Terminal
D
Terminal wraparound:
Approx. 0.20mm both ends
TYpe
CT0805
a
2.35
+0
B
1.73
+0
C
1.02
+0
d
0.35Ref
e
1.02
F
0.44
g
1.27
RECOMMENDED PATTERN
A
B
Pad
Layout
C
B
TYpe
CT0805
a
1.78
B
1.02
C
Dimensions : mm
0.76
133

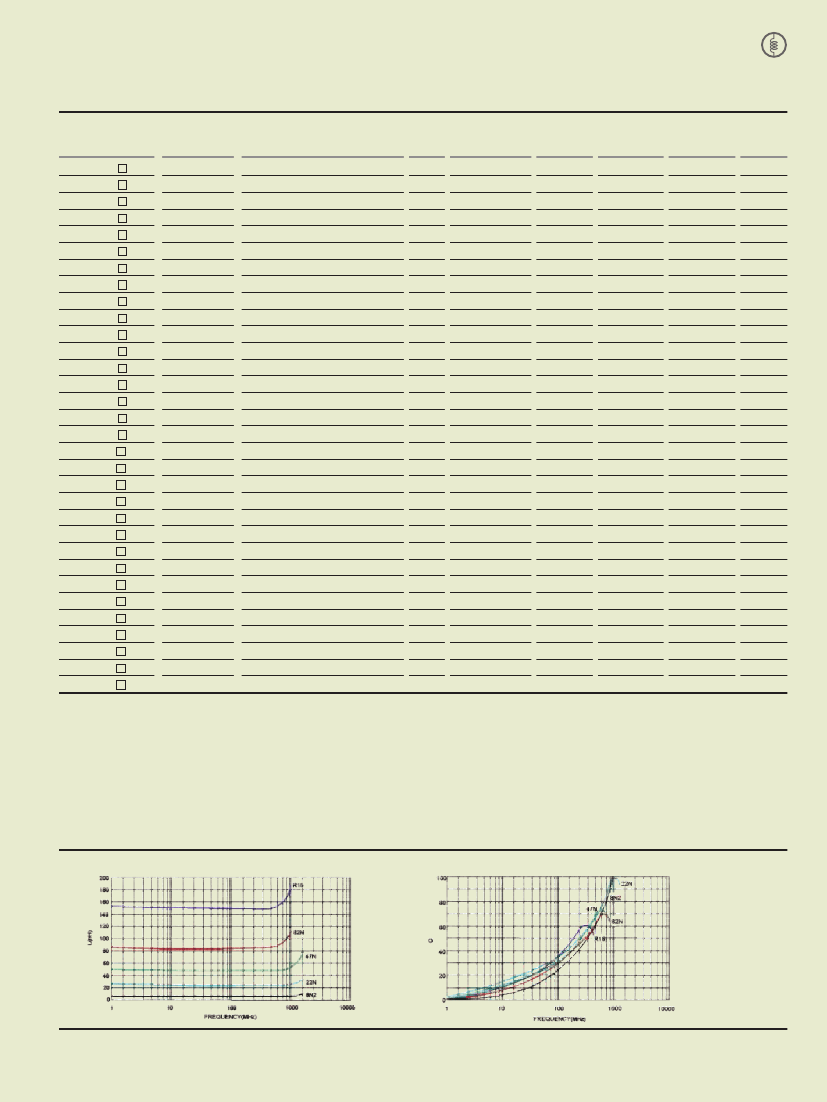

eleCTRICal ChaRaCTeRIsTICs : lead-FRee & ROhs COMplIanCe
paRT nO.
CT0805-1N8
CT0805-3N9
CT0805-4N7
CT0805-6N8
CT0805-8N2
CT0805-10N
CT0805-12N
CT0805-15N
CT0805-18N
CT0805-22N
CT0805-27N
CT0805-33N
CT0805-39N
CT0805-47N
CT0805-56N
CT0805-68N
CT0805-82N
CT0805-R10
CT0805-R12
CT0805-R15
CT0805-R18
CT0805-R22
CT0805-R27
CT0805-R33
CT0805-R39
CT0805-R47
CT0805-R56
CT0805-R62
CT0805-R68
CT0805-R75
CT0805-R82
CT0805-1R0
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
Inductance
(nH)
1.8
3.9
4.7
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
620
680
750
820
1000
T Frequency
est
(MHz)
250
250
250
250
250
250
250
250
250
250
250
250
250
200
200
200
150
150
150
150
150
150
150
100
100
50
25
25
25
25
25
25
T
olerance
(±%)
10
10
10/5
10/5
10/5
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5/2
10/5
q
Min
55
50
50
50
50
55
55
50
50
50
50
55
55
50
50
50
50
50
40
40
40
40
40
40
35
25
18
18
18
18
18
17
T Frequency
est
(MHz)
1500
1000
1000
1000
1000
750
750
500
500
500
500
500
500
500
500
500
500
500
250
250
250
250
250
250
250
100
50
50
50
50
50
50
sRF Min
(MHz)
9400
6100
5500
5500
4800
3300
3800
2950
3100
2900
2450
2350
2200
2000
1850
1500
1500
1200
1150
1050
950
900
850
800
700
600
550
450
420
400
400
330
RdC MaX
(Ω)
0.03
0.06
0.06
0.08
0.08
0.08
0.10
0.10
0.13
0.15
0.23
0.28
0.33
0.39
0.39
0.40
0.44
0.64
0.68
0.80
0.90
0.98
1.30
1.45
1.60
1.80
1.90
2.00
2.10
2.20
2.50
3.10
Irms Max
(mA)
800
800
800
800
800
800
800
800
800
800
600
600
600
600
500
500
500
400
300
300
300
300
300
300
300
300
300
300
300
300
300
300
Color
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
• When ordering, please specify tolerance and packaging code. Ex :CT0805-1R0J-N
• Tolerance : G =±2% , J =±5% , K =±10%
• Packaging : Clear Tape and Reel (Standard)
• L/Q : Agilent / HP4291A+Agilent / HP16193A
• SRF : Agilent/HP8753D / Agilent/HP4291A
• RDC : CH502BC HP4338B
• Irms for a 15°C rise above 25°C ambient
• Operating Temperature Range from -40°C to 125°C
TesT InsTRuMenTs :
hp4291a MaTeRIal / IMpedanCe analYZeR
Typical L vs Frequency
Typical Q vs Frequency
134

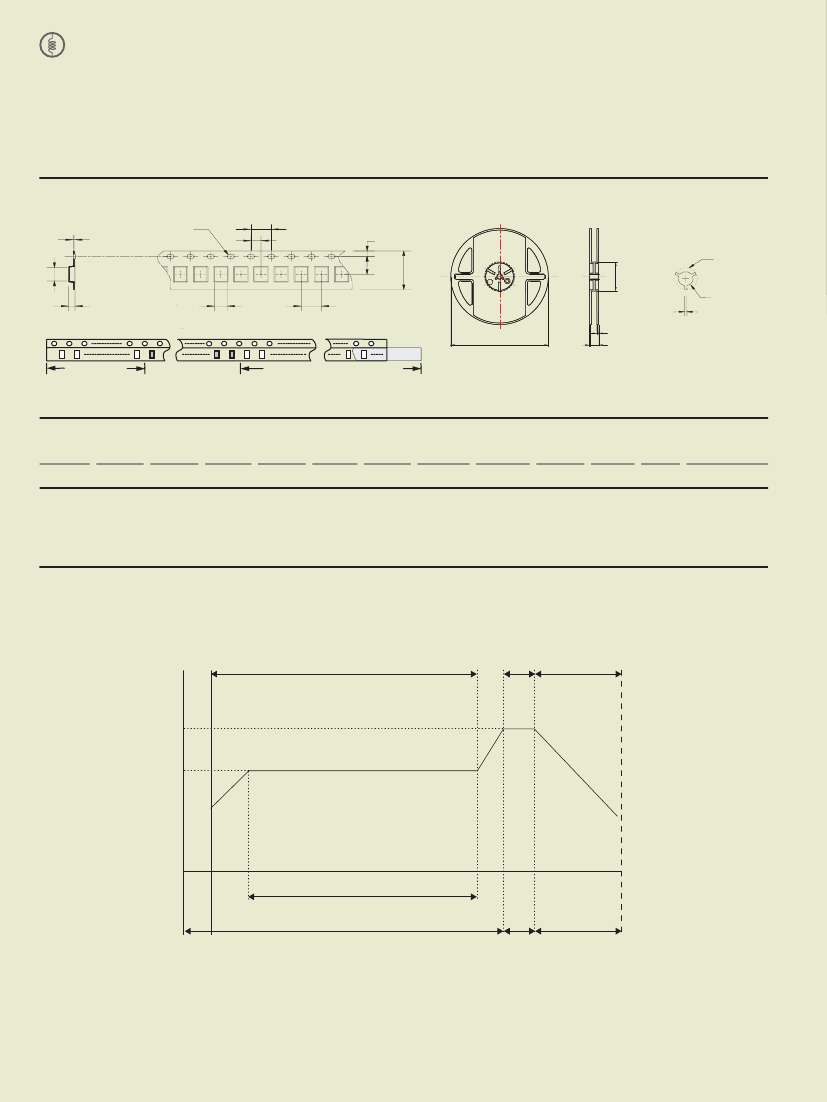

paCKagIng speCIFICaTIOns
Tape Dimensions
Reel Dimensions
1.5 +0.1/-0.0
4.0 ± 0.1
2.0 ± 0.05
1.75 ± 0.1
T
B
K
Trailer
F
W
D: 21±0.5
B
D: 13 ±0.5
2±0.5
A
P
C
A
D
c
Blank part(160mm min.)
Blank Compartments with Cover Tape
and Leader (330mm min.)
Dimensions : mm
TYpe
Tape dIMensIOns
a
CT0805
1.85
B
2.45
T
0.23
W
8
p
4
F
3.5
K
1.00
Reel dIMensIOns
a
178
B
60
C
12
d
1.5
2000
quanTITY/Reel
ReCOMMend sOldeRIng COndITIOns
for:CS/ CT/ LCN/ HC/ HQ/ CMM/ NL (open type)/ NLC (open type)/ LS
temperature °C
pre-heating
soldering
natural cooling
230 °C
150 °C
time:second
60 second
120 second
5~10 second
80 second
Test/Measurement
