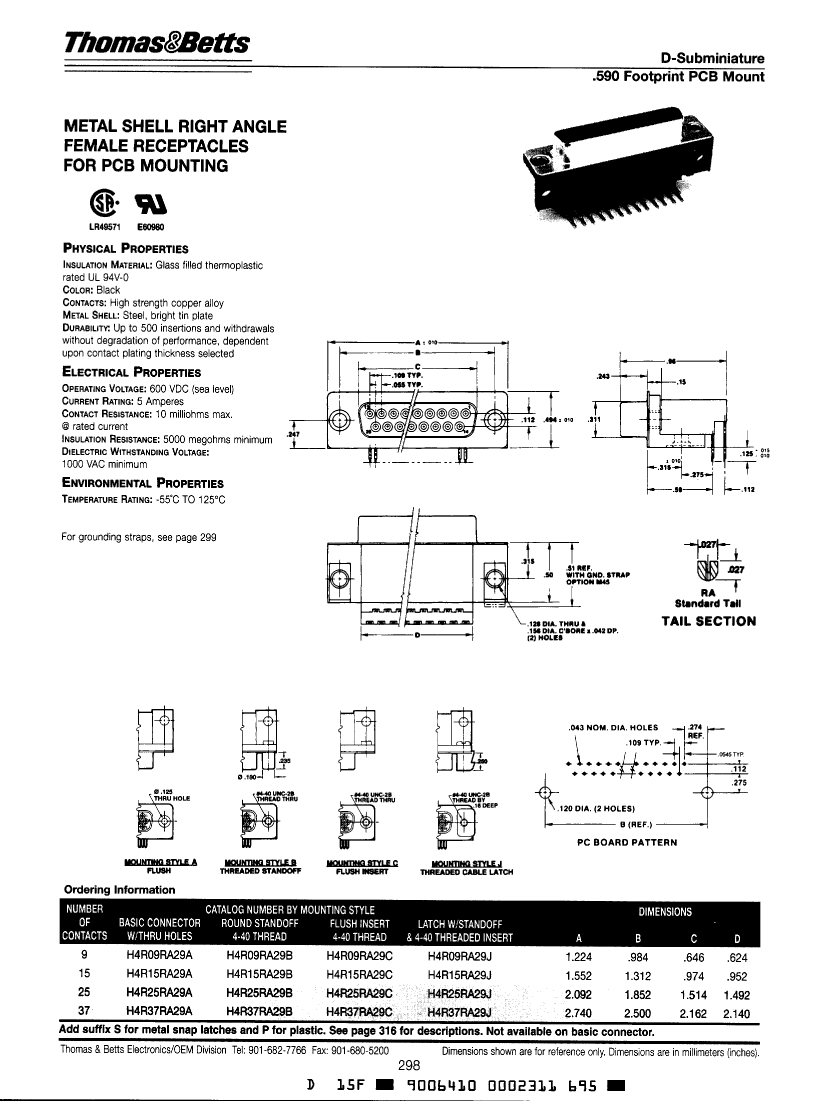

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
| Parameter Name | Attribute value |
| Maker | Thomas & Betts Corporation |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| body width | 0.494 inch |
| subject depth | 0.702 inch |
| body length | 2.092 inch |
| Body/casing type | PLUG |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | STAGGERED |
| Contact resistance | 10 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED THERMOPLASTIC |
| Manufacturer's serial number | H4R |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Installation option 1 | #4-40 |
| Installation option 2 | CABLE LATCH |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Rated current (signal) | 5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| Base Number Matches | 1 |
