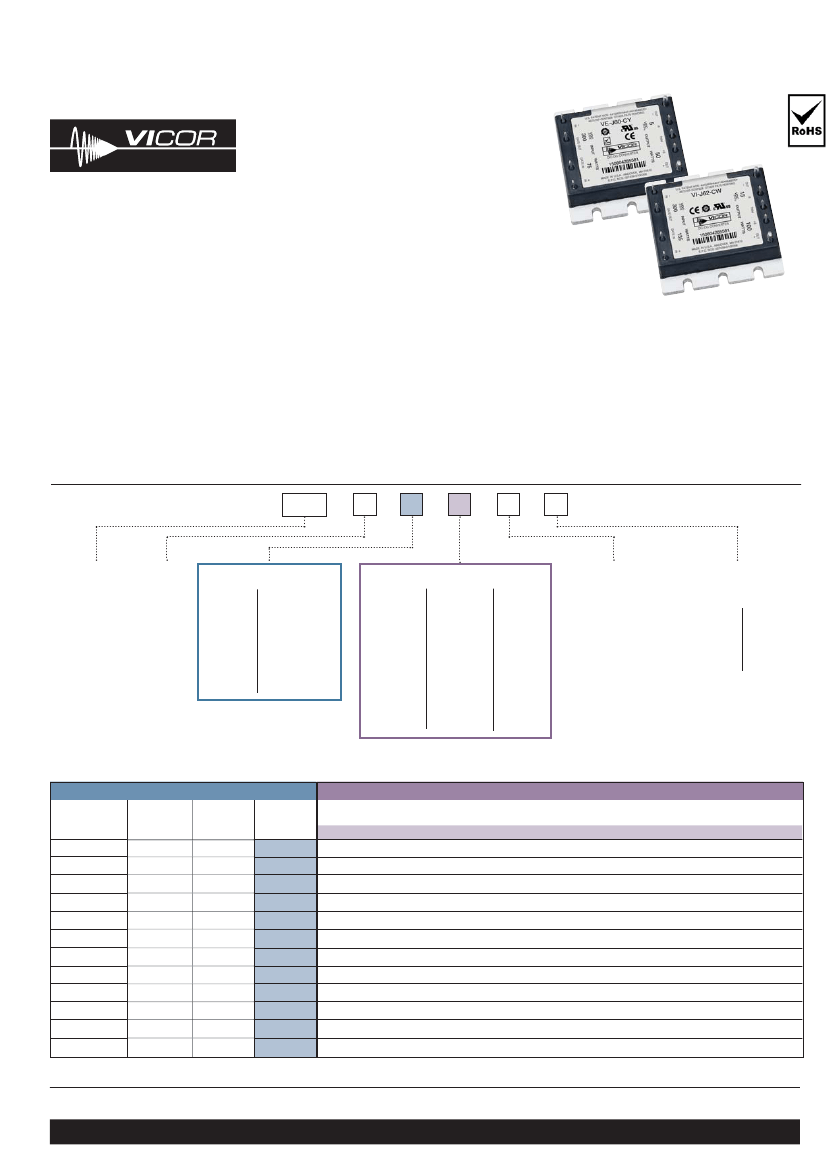

Data Sheet

VI-J00, VE-J00

Features

•

RoHS compliant (VE versions)

Up to 50 Watts per cubic inch

cULus, cTÜVus

CE Marked

Up to 90% efficiency

Size: 2.28" x 2.4" x 0.5"

(57,9 x 61,0 x 12,7)

Remote sense and current limit

Logic disable

Wide range output adjust

ZCS power architecture

Low noise FM control

Isolated output

Half Brick

DC-DC Converters

25 to 100 Watts

Product Highlights

The VI-J00 MiniMod family established a new standard in component-level DC-DC converters.

This “junior” size complement to the higher power VI-200 family offers up to 100 W of isolated

and regulated power in a board mounted package. With thousands of input/output/power

combinations, and with a maximum operating temperature rating of 100˚C, the MiniMod

provides nearly unlimited flexibiliy for power system designers to meet demanding time to

market requirements.

Utilizing Vicor’s “zero-current-switching” forward converter technology, proven by an installed

base of over 8 million units, the MiniMod family combines state of the art power density with

the efficiency, low noise and reliability required by next generation power systems.

Part Numbering

—

Family

= Non-RoHS

= RoHS

Series

= J00

= 24 V

= 36 V

= 48 V

Input

= 12 V

= 48 V

= 72 V

= 110 V

= 150 V

= 300 V

= 150/300 V

= 2V

= 3.3 V

= 5V

= 5.2 V

= 5.5 V

= 5.8 V

= 6.5 V

= 7.5 V

Output

= 10 V

= 12 V

= 13.8 V

= 15 V

= 18.5 V

= 24 V

= 28 V

= 36 V

= 40 V

= 48 V

= 52 V

= 72 V

= 85 V

= 95 V

Grade

= –10 to 100°C

= –25 to 100°C

= – 40 to 100°C

= –55 to 100°C

≥

Power

= 20 A

= 15 A

= 10 A

=5A

= 100 W

= 75 W

= 50 W

= 25 W

Note: For

additional

packaging options,

please see page 4.

Maximum Power Available for VI-Jxx-xx

Input

Voltage

Nom. (Range)

12 (10-20)

24 (10-36)

24 (21-32)

24 (18-36)

36 (21-56)

48 (42-60)

48 (36-76)

72 (55-100)

110 (66-160)

150 (100-200)

150 (100-375)

300 (200-400)

[a]

Output

Vin

Transient

[a]

Designators

n/a

110

n/a

215

n/a

425

3.3

5.2 5.5 5.8 6.5 7.5 10

X W V T

R M

Vout Designators

12 13.8 15 18.5 24 28

2 N

3 L

36 40

J K

72 85

F D

Low Line

75%

Max Power

n/a

170

Transient voltage for 1 second.

Vicor Corp.

Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715

VI-J00 MiniMod DC-DC Converters 25 to 100 Watts

Rev. 2.3

Page 1 of 5

Set your site on VICOR at vicorpower.com

Warranty

Vicor products are guaranteed for two years from date of shipment against defects in material or workmanship when in normal

use and service. This warranty does not extend to products subjected to misuse, accident, or improper application or

maintenance. Vicor shall not be liable for collateral or consequential damage. This warranty is extended to the original

purchaser only.

EXCEPT FOR THE FOREGOING EXPRESS WARRANTY, VICOR MAKES NO WARRANTY, EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE.

Vicor will repair or replace defective products in accordance with its own best judgement. For service under this warranty, the

buyer must contact Vicor to obtain a Return Material Authorization (RMA) number and shipping instructions. Products returned

without prior authorization will be returned to the buyer. The buyer will pay all charges incurred in returning the

product to the factory. Vicor will pay all reshipment charges if the product was defective within the terms of this warranty.

Information published by Vicor has been carefully checked and is believed to be accurate; however, no responsibility is assumed

for inaccuracies. Vicor reserves the right to make changes to any products without further notice to improve reliability, function,

or design. Vicor does not assume any liability arising out of the application or use of any product or circuit; neither does it con-

vey any license under its patent rights nor the rights of others. Vicor general policy does not recommend the use of its compo-

nents in life support applications wherein a failure or malfunction may directly threaten life or injury. Per Vicor Terms and

Conditions of Sale, the user of Vicor components in life support applications assumes all risks of such use and indemnifies Vicor

against all damages.

Vicor’s comprehensive line of power solutions includes high density AC-DC and DC-DC

modules and accessory components, fully configurable AC-DC and DC-DC power supplies,

and complete custom power systems.

Information furnished by Vicor is believed to be accurate and reliable. However, no responsibility is assumed by Vicor for its

use. Vicor components are not designed to be used in applications, such as life support systems, wherein a failure or

malfunction could result in injury or death. All sales are subject to Vicor’s Terms and Conditions of Sale, which are available

upon request.

Specifications are subject to change without notice.

Intellectual Property Notice

Vicor and its subsidiaries own Intellectual Property (including issued U.S. and Foreign Patents and pending patent

applications) relating to the products described in this data sheet. Interested parties should contact Vicor's Intellectual

Property Department.

Vicor Corporation

25 Frontage Road

Andover, MA, USA 01810

Tel: 800-735-6200

Fax: 978-475-6715

Customer Service: custserv@vicorpower.com

Technical Support: apps@vicorpower.com

Vicor Corp.

Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715

VI-J00 MiniMod DC-DC Converters 25 to 100 Watts

Rev. 2.3

8/09

Set your site on VICOR at vicorpower.com
