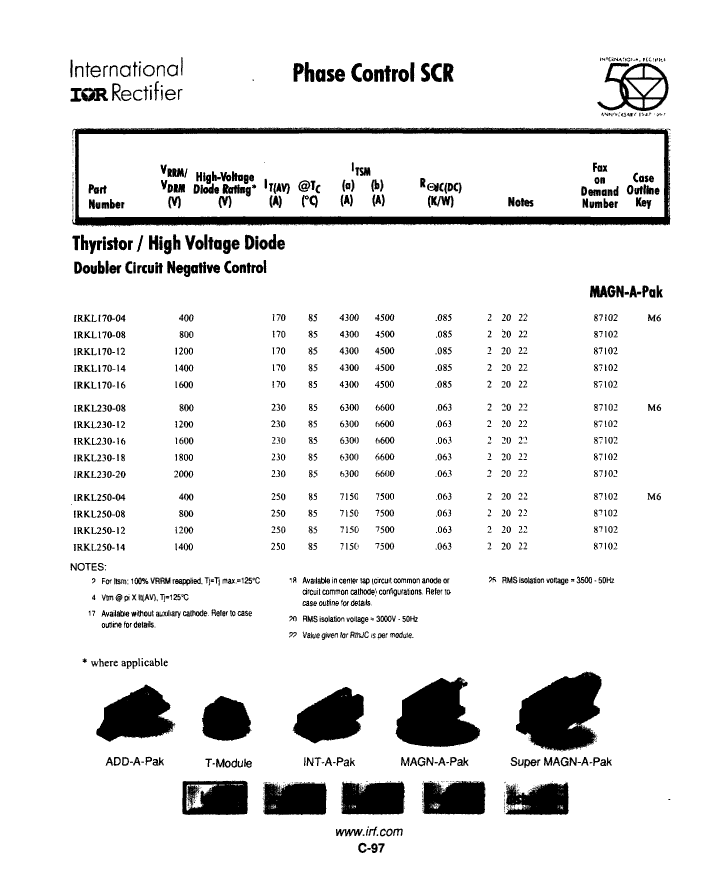

IRKL230-16PBF: DescriptionSilicon Controlled Rectifier, 510A I(T)RMS, 1600V V(DRM), 1600V V(RRM), 1 Element, POWER, MAGN-A-PAK-5; CategoryAnalog mixed-signal IC Trigger device; File Size33KB，1 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

IRKL230-16PBF Overview

Silicon Controlled Rectifier, 510A I(T)RMS, 1600V V(DRM), 1600V V(RRM), 1 Element, POWER, MAGN-A-PAK-5

IRKL230-16PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-PUFM-D3
Contacts	5
Reach Compliance Code	compliant
Other features	UL APPROVED
Shell connection	ISOLATED
Nominal circuit commutation break time	150 µs
Configuration	SINGLE WITH BUILT-IN FREE-WHEELING DIODE
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	500 mA
JESD-30 code	R-PUFM-D3
Number of components	1
Number of terminals	3
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum rms on-state current	510 A
Maximum repetitive peak off-state leakage current	50000 µA
Off-state repetitive peak voltage	1600 V
Repeated peak reverse voltage	1600 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

IRKL230-16PBF Related Products

	IRKL230-16PBF	IRKL250-12PBF	IRKL250-08PBF	IRKL250-14PBF	IRKL170-16PBF	IRKL230-12PBF
Description	Silicon Controlled Rectifier, 510A I(T)RMS, 1600V V(DRM), 1600V V(RRM), 1 Element, POWER, MAGN-A-PAK-5	Silicon Controlled Rectifier, 555A I(T)RMS, 1200V V(DRM), 1200V V(RRM), 1 Element, POWER, MAGN-A-PAK-5	Silicon Controlled Rectifier, 555A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, POWER, MAGN-A-PAK-5	Silicon Controlled Rectifier, 555A I(T)RMS, 1400V V(DRM), 1400V V(RRM), 1 Element, POWER, MAGN-A-PAK-5	Silicon Controlled Rectifier, 377A I(T)RMS, 1600V V(DRM), 1600V V(RRM), 1 Element, POWER, MAGN-A-PAK-5	Silicon Controlled Rectifier, 510A I(T)RMS, 1200V V(DRM), 1200V V(RRM), 1 Element, POWER, MAGN-A-PAK-5
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-PUFM-D3	FLANGE MOUNT, R-PUFM-D3	FLANGE MOUNT, R-PUFM-D3	FLANGE MOUNT, R-PUFM-D3	FLANGE MOUNT, R-PUFM-D3	FLANGE MOUNT, R-PUFM-D3
Contacts	5	5	5	5	5	5
Reach Compliance Code	compliant	compliant	compliant	compliant	compli	compli
Other features	UL APPROVED	UL APPROVED	UL APPROVED	UL APPROVED	UL APPROVED	UL APPROVED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Nominal circuit commutation break time	150 µs	150 µs	150 µs	150 µs	150 µs	150 µs
Configuration	SINGLE WITH BUILT-IN FREE-WHEELING DIODE	SINGLE WITH BUILT-IN FREE-WHEELING DIODE	SINGLE WITH BUILT-IN FREE-WHEELING DIODE	SINGLE WITH BUILT-IN FREE-WHEELING DIODE	SINGLE WITH BUILT-IN FREE-WHEELING DIODE	SINGLE WITH BUILT-IN FREE-WHEELING DIODE
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V
Maximum holding current	500 mA	500 mA	500 mA	500 mA	500 mA	500 mA
JESD-30 code	R-PUFM-D3	R-PUFM-D3	R-PUFM-D3	R-PUFM-D3	R-PUFM-D3	R-PUFM-D3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	510 A	555 A	555 A	555 A	377 A	510 A
Maximum repetitive peak off-state leakage current	50000 µA	50000 µA	50000 µA	50000 µA	50000 µA	50000 µA
Off-state repetitive peak voltage	1600 V	1200 V	800 V	1400 V	1600 V	1200 V
Repeated peak reverse voltage	1600 V	1200 V	800 V	1400 V	1600 V	1200 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	40	40	40	40	40	40
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Lead free
