LSM5247-681

Description
General Purpose Inductor, 680uH, 30%, 1 Element, SMD
CategoryPassive components    inductor
File Size20KB,1 Pages
ManufacturerInductor Supply Inc
Download Datasheet Parametric View All

LSM5247-681 Overview

General Purpose Inductor, 680uH, 30%, 1 Element, SMD

LSM5247-681 Parametric

Parameter NameAttribute value
MakerInductor Supply Inc
Reach Compliance Codeunknown
ECCN codeEAR99
DC Resistance0.42 Ω
Nominal inductance(L)680 µH
Inductor ApplicationsFILTER CHOKE
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberLSM5247
Number of functions1
Number of terminals10
Maximum operating temperature130 °C
Minimum operating temperature-20 °C
Maximum rated current0.54 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL IN-LINE
Terminal shapeGULL WING
Tolerance30%
Base Number Matches1
Surface
Mount Inductor
6
.472
max
10
.525
max
.437
max
.079
typ
.028
1
5
.248
max

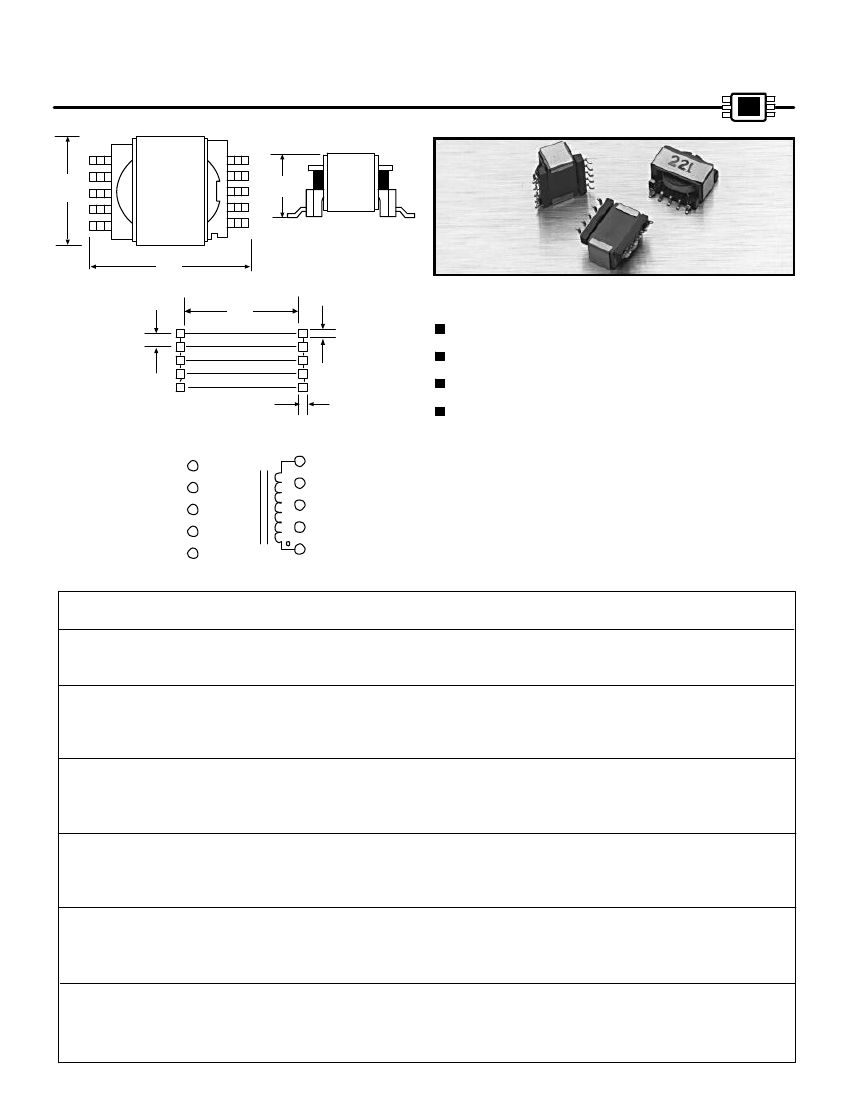

LSM5247
FEATURES
n
n
n
n
UL class B materials
Wide inductance range
Solderability per industry standards
Low DC resistance
FOOTPRINT DIAGRAM
6
7
8
9
10
SCHEMATIC
PART
NUMBER
LSM5247-150
LSM5247-221
LSM5247-331
LSM5247-471
LSM5247-681
LSM5247-102
LSM5247-152
LSM5347-222
LSM5247-332
LSM5247-472
LSM5247-682
LSM5247-103
LSM5247-153
LSM5247-223
LSM5247-333
LSM5247-473
LSM5247-683
.028
5
4
3
2
1
CHARACTERISTICS
INDUCTANCE RANGE From .15mh to 68mh.
TEMPERATURE RANGE From -20°C to +130°C.
Notes:
(1) *DC current tha t will cr eate a maxim um temp. rise of 30°C when
a pplied a t + 25°C ambient.
(2) **DC current tha t will typically r educe the initial inductance by 20%.
(3) Packaging: Bulk or Tape and Reel.
INDUCT ANCE
mH ± 30%
.15
.22
.33
.47
.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
DC RESISTANCE
OHMS
MAXIMUM (Ω )
0.200
0.240
0.290
0.350
0.420
0.510
0.630
0.760
1.000
2.240
2.700
3.270
6.260
7.580
9.500
18.500
24.100
RATED DC
CURRENT
MAXIMUM (mA)*
0.790
0.720
0.650
0.590
0.540
0.490
0.440
0.400
0.350
0.240
0.210
0.190
0.140
0.130
0.110
0.080
0.070
SATURA TED
CURRENT
(A)**
0.075
0.062
0.050
0.042
0.035
0.029
0.024
0.020
0.018
0.013
0.011
0.009
0.008
0.006
0.005
0.004
0.003
