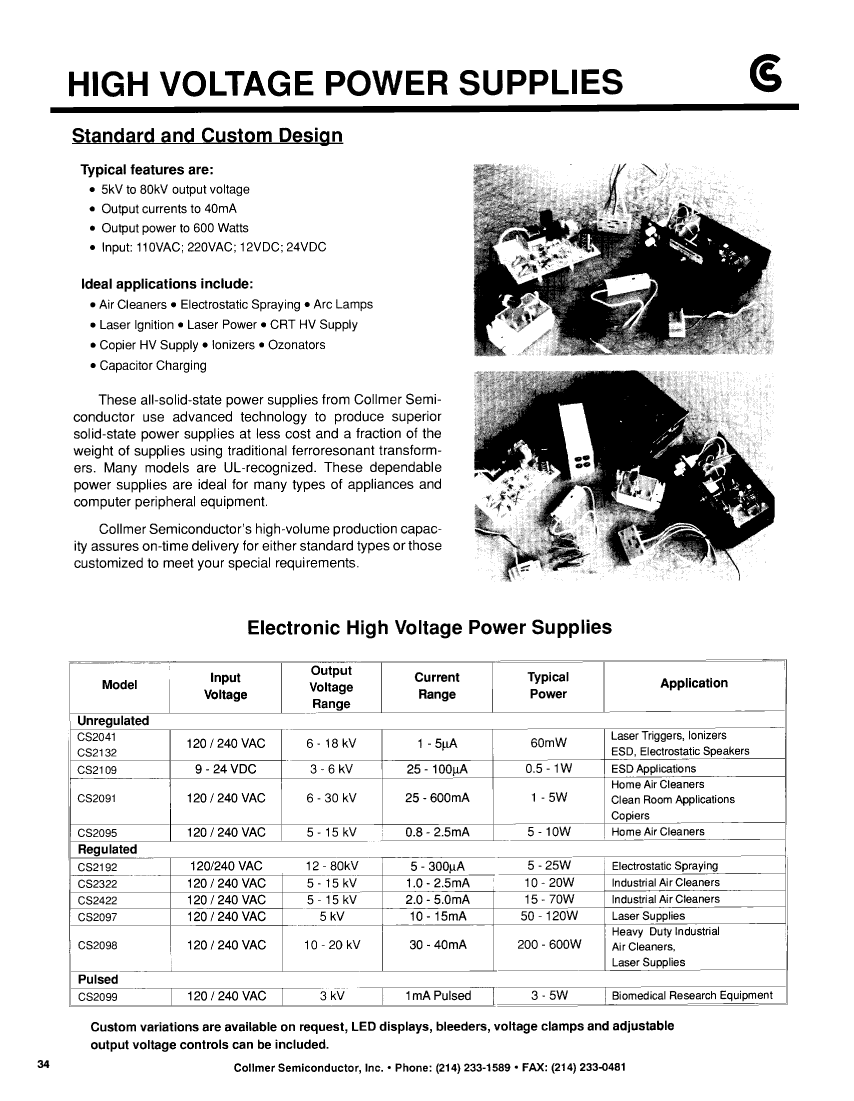

CS2091: DescriptionAC-DC Unregulated Power Supply Module, 1 Output; CategoryPower/power management The power supply circuit; File Size157KB，1 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric Compare View All

CS2091 Overview

AC-DC Unregulated Power Supply Module, 1 Output

CS2091 Parametric

Parameter Name	Attribute value
Maker	Fuji Electric Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CAN ALSO BE OPERATED USING 240V
Analog Integrated Circuits - Other Types	AC-DC UNREGULATED POWER SUPPLY MODULE
Nominal input voltage	120 V
JESD-30 code	X-XXMA-X
Number of functions	1
Output times	1
Maximum output voltage	30000 V
Minimum output voltage	6000 V
Package body material	UNSPECIFIED
Package shape	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

CS2091 Related Products

	CS2091	CS2099	CS2098	CS2097	CS2095	2N7002KA_18	CS2041
Description	AC-DC Unregulated Power Supply Module, 1 Output	AC-DC Regulated Power Supply Module, 1 Output	AC-DC Regulated Power Supply Module, 1 Output, 600W	AC-DC Regulated Power Supply Module, 1 Output	AC-DC Regulated Power Supply Module, 1 Output	N Channel MOSFET ESD Protected 2000V	AC-DC Unregulated Power Supply Module, 1 Output
Maker	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.	-	-	Fuji Electric Co., Ltd.	-	Fuji Electric Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	-	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
Other features	CAN ALSO BE OPERATED USING 240V	CAN ALSO BE OPERATED USING 240V	CAN ALSO BE OPERATED USING 240V	CAN ALSO BE OPERATED USING 240V	CAN ALSO BE OPERATED USING 240V	-	CAN ALSO BE OPERATED USING 240V
Analog Integrated Circuits - Other Types	AC-DC UNREGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	-	AC-DC UNREGULATED POWER SUPPLY MODULE
Nominal input voltage	120 V	120 V	120 V	120 V	120 V	-	120 V
JESD-30 code	X-XXMA-X	X-XXMA-X	X-XXMA-X	X-XXMA-X	X-XXMA-X	-	X-XXMA-X
Number of functions	1	1	1	1	1	-	1
Output times	1	1	1	1	1	-	1
Maximum output voltage	30000 V	-	20000 V	-	15000 V	-	18000 V
Minimum output voltage	6000 V	-	10000 V	-	5000 V	-	6000 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED
Package shape	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
surface mount	NO	NO	NO	NO	NO	-	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	-	NO
Base Number Matches	1	1	1	1	-	-	-
