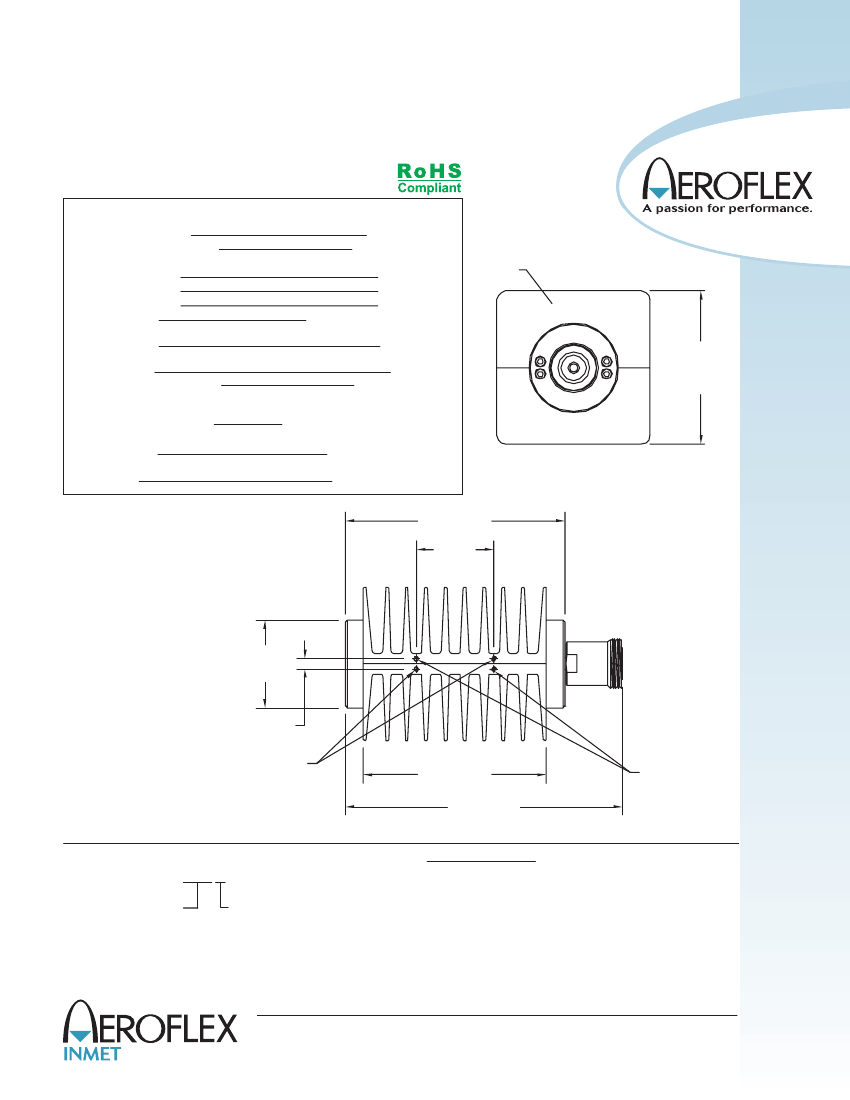

TERMINATIONS
7/16 DIN, DC - 4.0 GHz, 150 Watts
SPECIFICATIONS:
Models: TDXXXM - 150W & TDXXXF - 150W
Electrical:
Frequency Range
Standard Freq. Values
VSWR
DC - 1.5 GHz
1.5 - 2.5 GHz
2.5 - 4.0 GHz
Input Power
Peak Power
Impedance
Operating Temp Range
DC - 4.0 GHz
1.5, 2.5 & 4 GHz
1.15:1 Max.
1.30:1 Max.
1.40:1 Max.
150 Watts Avg. @ +25°C
Derated Linearly to 30 Watts @ +125 C
o
Custom Mtg. hole Config.
may be Added to this
Surface.
2 kW Max.
(5uSec Pulse, .05% Duty Cycle)
50 Ohms
-55°C to +125°C
Silver Plated or White Bronze
Alloy Finished Brass
Silver or Gold Plated
Beryllium Copper or Brass
Anodized Aluminum
4.965 ±.025
[126 ±0.64]
1.75
[44.5]
3.46 [87.9]
SQ.
Mechanical:
7/16 - DIN Connectors
Mates with MIL-STD-348
Conductors
Housing
Model Number:
TDXXXF-150W
DIN - 7/16 Female Connector
Length: 6.26±.08 [159.0 ±2.0]
Pictured
Model Number:
TDXXXM-150W
DIN - 7/16 Male Connector
Length: 6.12 ±.08 [155.4 ±2.0]
Ø1.98 [50.3]
TYP.
END VIEW
TYPICAL
.23 [5.8]
M4x0.7 TAP
x .50 [12.7] DP.
4.125[105]
6.26 ±.08
[159.0 ±2.0]
8-32UNC-2B TAP
x .50 [12.7] DP.
Units must be Mounted in such a way as to
Allow for Free Air Flow Around fins to Assure
Performance
HOW TO ORDER:
Model Number:
TDXXXY-150W
Freq. Range
010 = DC - 1.5 GHz
020 = DC - 2.5 GHz
040 = DC - 4 GHz
Connector Configuration
F = Female
M = Male
Ordering Examples:
Model Number:
TD040M-150W
DC - 4 GHz, 7/16 - DIN Male CONN.
Model Number:
TD020F-150W
DC - 2.5 GHz, 7/16 - DIN Female CONN.
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design, specifications are subject to change without notice. Contact factory for technical
specifications before purchasing and/or use.
TDXXX-150W: REV E
