MSV358MGTR Overview

Basic information of MSV358MGTR amplifier:

MSV358MGTR is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are TSSOP, TSSOP8,.19

MSV358MGTR amplifier core information:

The minimum operating temperature of the MSV358MGTR is -20 °C and the maximum operating temperature is 85 °C.

The power of MSV358MGTR is NO. Its programmable power is NO.

The power supply range is: 3/5 V. The input offset voltage of MSV358MGTR is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of MSV358MGTR:

MSV358MGTR has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 0.635 mm.

MSV358MGTR amplifier additional information:

MSV358MGTR adopts the VOLTAGE-FEEDBACK architecture. It is not a low-bias amplifier. It does not belong to the low offset class of amplifiers. The frequency compensation status of MSV358MGTR is: YES. Its temperature grade is: OTHER.

It is a micropower amplifier. MSV358MGTR is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G8. The packaging code of MSV358MGTR is: TSSOP. MSV358MGTR packaging materials are mostly PLASTIC/EPOXY.

The package shape is RECTANGULAR. MSV358MGTR package pin forms are: SMALL OUTLINE, THIN PROFILE, SHRINK PITCH. Its terminal forms are: GULL WING.

MSV358MGTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MOSA
package instruction	TSSOP, TSSOP8,.19
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
frequency compensation	YES
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDSO-G8
low-bias	NO
low-dissonance	NO
micropower	YES
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP8,.19
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

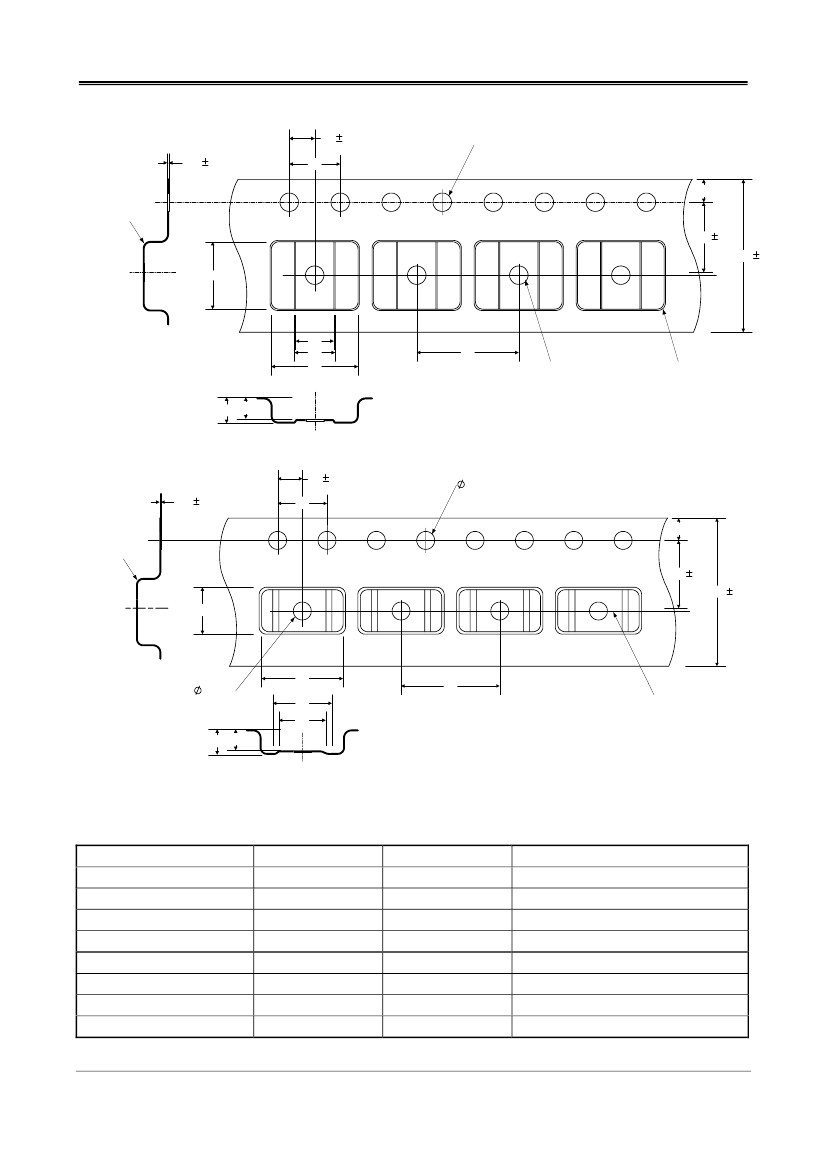

method of packing	TAPE AND REEL
power	NO
power supply	3/5 V
Programmable power	NO
Certification status	Not Qualified
Supply voltage upper limit	5.5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
broadband	NO
Base Number Matches	1

Preview

Download Datasheet

View All

MOSA

MSV358

General Purpose Dual Operational Amplifiers

Rail-to-Rail Output

Low Voltage, Low Supply current

General Purpose Dual OP Amps

FEATURES

‧CMOS

rail to rail output

‧2.7

to 5.5V single supply operation

‧Low

supply current : 112uA (per channel)

‧Gain-Bandwidth

Product : 1MHz

‧Slew

rate : 1V/

‧No

crossover distortion

‧Space

saving package SOP8, MSOP8

‧Cost

efficient

‧Pin

assignments is the same as the general-purpose

dual operational amplifiers

APPLICATIONS

‧Active

filters

‧Supply

current monitoring

‧Battery

monitoring

‧Voice

preamplifier

‧General

purpose low voltage applications

‧General

purpose portable devices

‧Cross-reference

LMV358

DESCRIPTION

The MSV358 is the most cost-effective solutions for

applications where low voltage operation. Each amplifier

has low supply current of 112uA. The IC designed to be

used for general purpose amplifier of general electronic

equipment for consumer appliances.

BLOCK DIAGRAM

OutA

-INA

+INA

OutB

-INB

+INB

PINNING

Symbol

OutA

-INA

+INA

+INB

-INB

OutB

Description

output A

inverting input A

non-inverting input A

negative supply

non-inverting input B

inverting input B

output B

positive supply

OUTA

-INA

+INA

MSV358

OUTB

-INB

+INB

Pin configuration

REV1

www.mosanalog.com.tw

MSV358MGTR Related Products

	MSV358MGTR	MSV358MGU	MSV358GU	MSV358MTR	MSV358MU
Description	Operational Amplifier, 2 Func, 5000uV Offset-Max, CMOS, PDSO8,	Operational Amplifier, 2 Func, 5000uV Offset-Max, CMOS, PDSO8,	Operational Amplifier, 2 Func, 5000uV Offset-Max, CMOS, PDSO8,	Operational Amplifier, 2 Func, 5000uV Offset-Max, CMOS, PDSO8,	Operational Amplifier, 2 Func, 5000uV Offset-Max, CMOS, PDSO8,
Is it Rohs certified?	conform to	conform to	conform to	incompatible	incompatible
Maker	MOSA	MOSA	MOSA	MOSA	MOSA
package instruction	TSSOP, TSSOP8,.19	TSSOP, TSSOP8,.19	SOP, SOP8,.25	TSSOP, TSSOP8,.19	TSSOP, TSSOP8,.19
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	YES	YES	YES
Maximum input offset voltage	5000 µV	5000 µV	5000 µV	5000 µV	5000 µV
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
low-bias	NO	NO	NO	NO	NO
low-dissonance	NO	NO	NO	NO	NO
micropower	YES	YES	YES	YES	YES
Number of functions	2	2	2	2	2
Number of terminals	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	SOP	TSSOP	TSSOP
Encapsulate equivalent code	TSSOP8,.19	TSSOP8,.19	SOP8,.25	TSSOP8,.19	TSSOP8,.19
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL	TUBE	TUBE	TAPE AND REEL	TUBE
power	NO	NO	NO	NO	NO
power supply	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V
Programmable power	NO	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Supply voltage upper limit	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	1.27 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
broadband	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1
