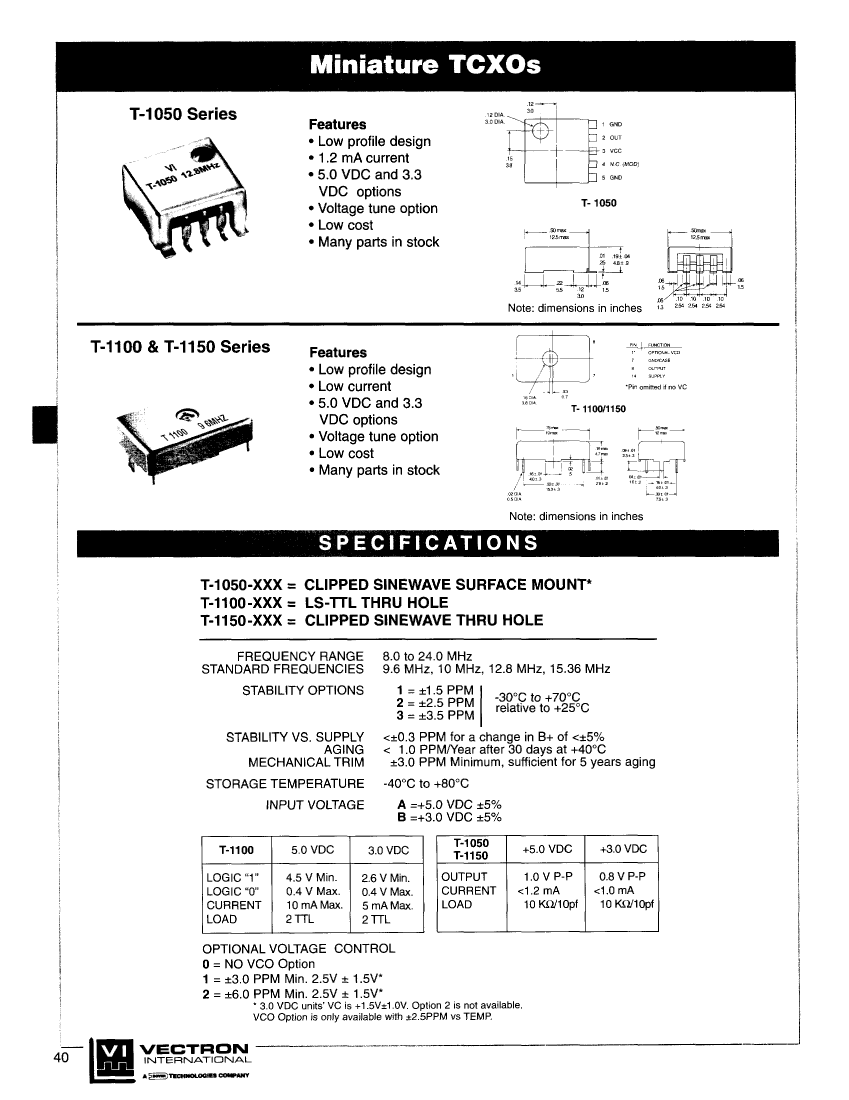

T-1150-2B115.36MHZ datasheet, PDF

T-1150-2B115.36MHZ: DescriptionClipped Sine Output Oscillator, 8MHz Min, 24MHz Max, 15.36MHz Nom, LOW PROFILE, DIP-4; CategoryPassive components oscillator; File Size69KB，1 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

T-1150-2B115.36MHZ Overview

Clipped Sine Output Oscillator, 8MHz Min, 24MHz Max, 15.36MHz Nom, LOW PROFILE, DIP-4

Parameter Name	Attribute value
Maker	Vectron International, Inc.
package instruction	DIP4/14,.3
Reach Compliance Code	compliant
Ageing	1 PPM/YEAR
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	YES
Frequency offset/pull rate	3 ppm
frequency stability	2.5%
Manufacturer's serial number	T-1150
Installation features	THROUGH HOLE MOUNT
Number of terminals	4
Maximum operating frequency	24 MHz
Minimum operating frequency	8 MHz
Nominal operating frequency	15.36 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DIP4/14,.3
physical size	19mm x 12mm x 4.7mm
power supply	3 V
Certification status	Not Qualified
Nominal supply voltage	3 V
surface mount	NO
Base Number Matches	1
