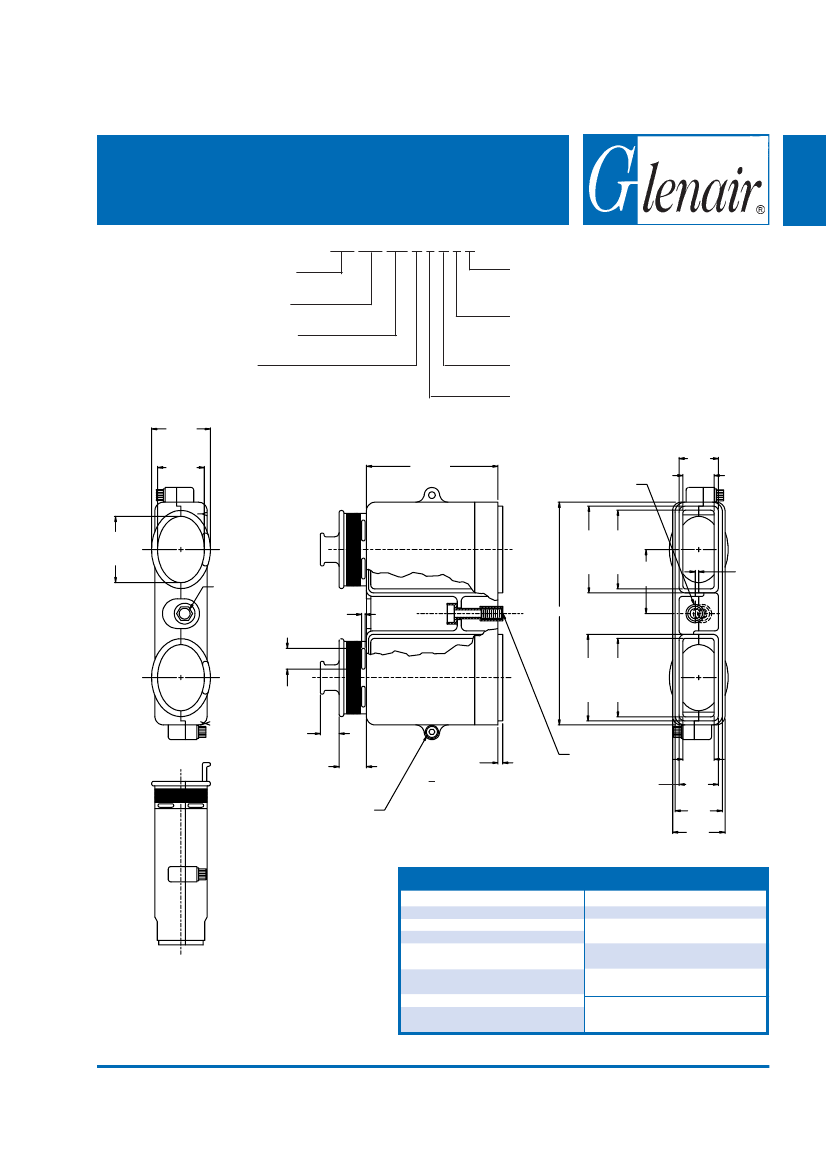

527-260
EMI/RFI Qwik-Ty
®
Elliptical Banding Backshell
for Boeing BACC65 Connector
527 260 ME B 6 A 6 B
Product Series
Basic Number
Finish (Table I)
Port "X"
Style A, B, S
.830
(21.1)
.690
(17.5)
B = Micro Band (2 Each)
(Omit for None)
Qwik-Ty
®
Position
(Style A & B Only)
Port "Y" (Style A, B or S)
Qwik-Ty
®
Position
(Style A & B Only)
.553
(14.0)
Max
Self-Locking
Hardware
Style S = Straight
(See Note 2)
2.000
(50.8)
.470
(11.9)
Min
1.000
(25.4)
1/4 Socket
Head
1.159 1.072
(29.4) (27.2)
Max Min
.823 (20.9)
+.010 (0.3)
.059
(1.5)
.080 (2.0)
+.015 ((0.4)
-.005 (0.1)
2.966 (75.3)
.340
(8.6)
8 Places
.320
(8.1)
.440
(11.2)
4-40 Class 3A Socket Head
(3/32 Socket) Captivated
Screw x 1.200 (30.5) long
with Vibratite (2 Places)
.051 (1.3)
+.005 (0.1)
1.159 1.072
(29.4) (27.2)
Max Min
M7 x .75
(19.05)
Thread
.470
(11.9)
Min
.553
(14.0)
Max
.718
(18.2)
.790
(20.1)
Max
TABLE I: FINISH OPTIONS
Symbol
B
C*
G*
J
LF
NOTES:
1. Metric dimensions (mm) are indicated in parentheses.
2. Straight Qwik-Ty
®
position for Port X & Y will be 6.
© 2004 Glenair, Inc.
M
N
Finish
Symbol Finish
Cadmium Plate/Olive Drab
NC
Zinc Cobalt/Dark Olive Drab
Cadmium Plate/Olive Drab over
Black Anodize
NF
Anodic Hard Coat
Electroless Nickel
Gold Iridite over Cadmium Plate
T
Cadmium Plate/Bright over
over Electroless Nickel
Electroless Nickel
Cadmium Plate/Black
Cadmium Plate/Bright over
U**
Electroless Nickel
ZN
Zinc-Nickel Alloy/Olive Drab
Electroless Nickel
*Anodize finish is not suitable for EMI shielding or grounding
Cadmium Plate/Olive Drab over
applications. to corrosion resisting steel backshells and
**Applicable
Electroless Nickel
accessories. Consult factory for other available finishes.
Printed in U.S.A.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com

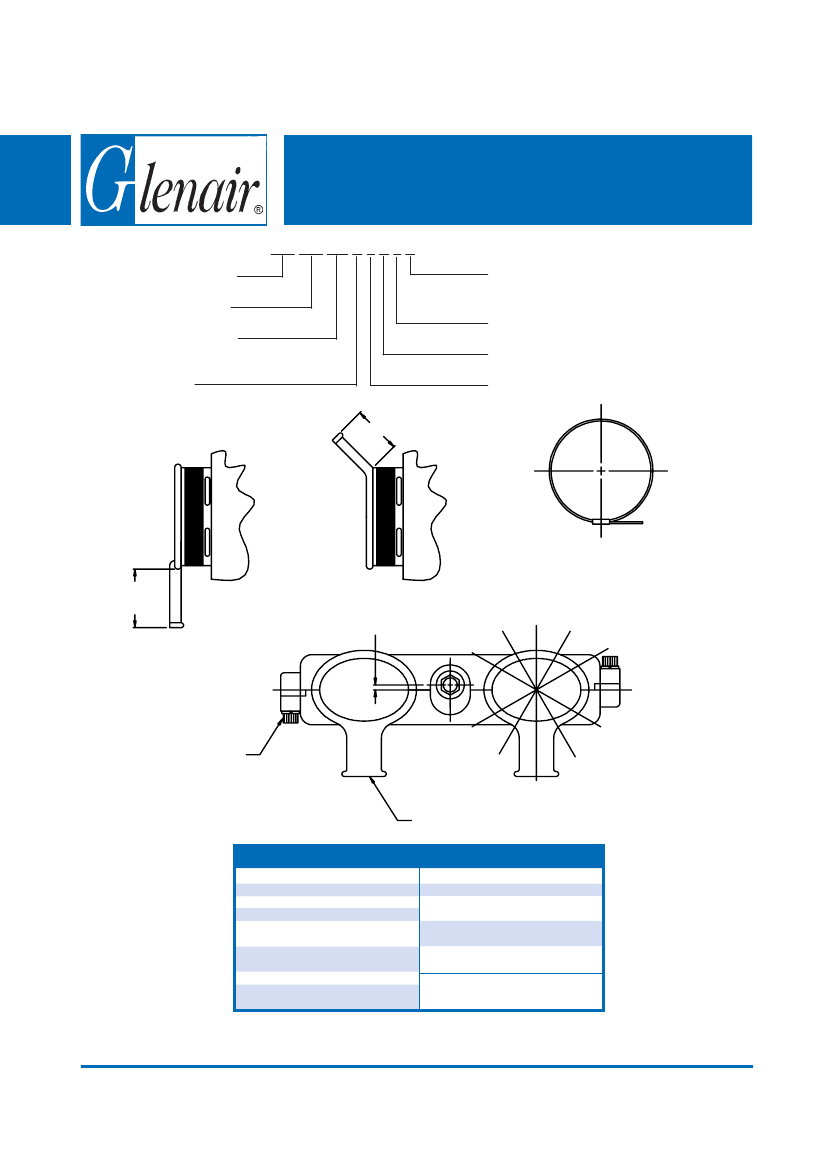

D-11
