527277JP5: DescriptionFeed Through Backshell Assembly & Adapters for Size 2 ARINC 600 Series Connectors; File Size46KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

527277JP5 Overview

Feed Through Backshell Assembly & Adapters for Size 2 ARINC 600 Series Connectors

Preview

Download Datasheet

View All

ARINC 600

Backshells

527-277

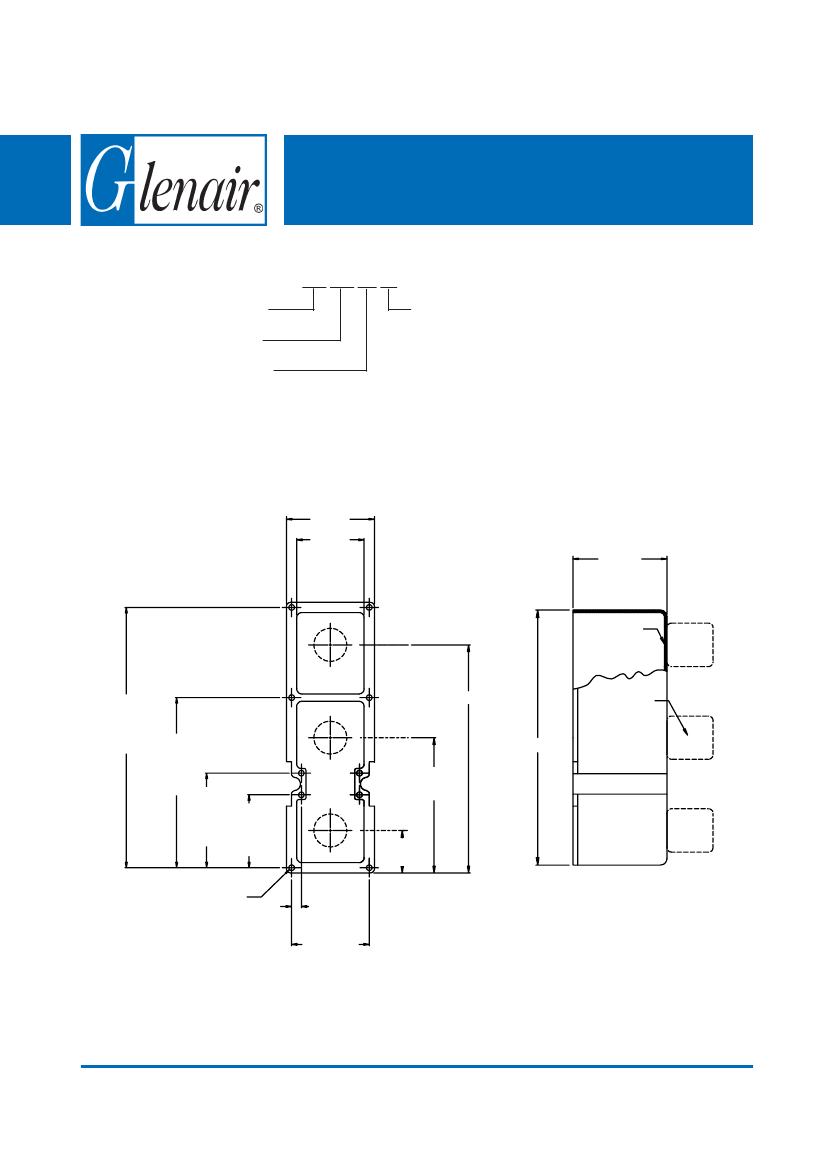

Feed Through Backshell Assembly & Adapters

for Size 2 ARINC 600 Series Connectors

527 277 NF P5

Product Series

Basic Number

Finish (Table I)

Connector Designator (See Note 2)

P = All manufacturers' Plug

and Receptacle Shells

except the following:

P1 = Cannon BKAD****322 Series Plug

P2 = Cannon BKAC & BKAE Series

Environmental Plug

P3 = Cannon/Boeing BACC66 Plug

P5 = Radiall/Boeing BACC66 Plug

1.790

(45.5)

1.082

1.067

(27.5)

(27.1)

2.090

(53.1)

1 1/16-18

UNEF-2B

3 Places

5.355

5.345

(136.0)

(135.8)

4.730 (120.1)

3.770

3.760

(95.8)

(95.5)

2.004

1.994

(50.9)

(50.6)

1.258

1.248

(32.0)

(31.7)

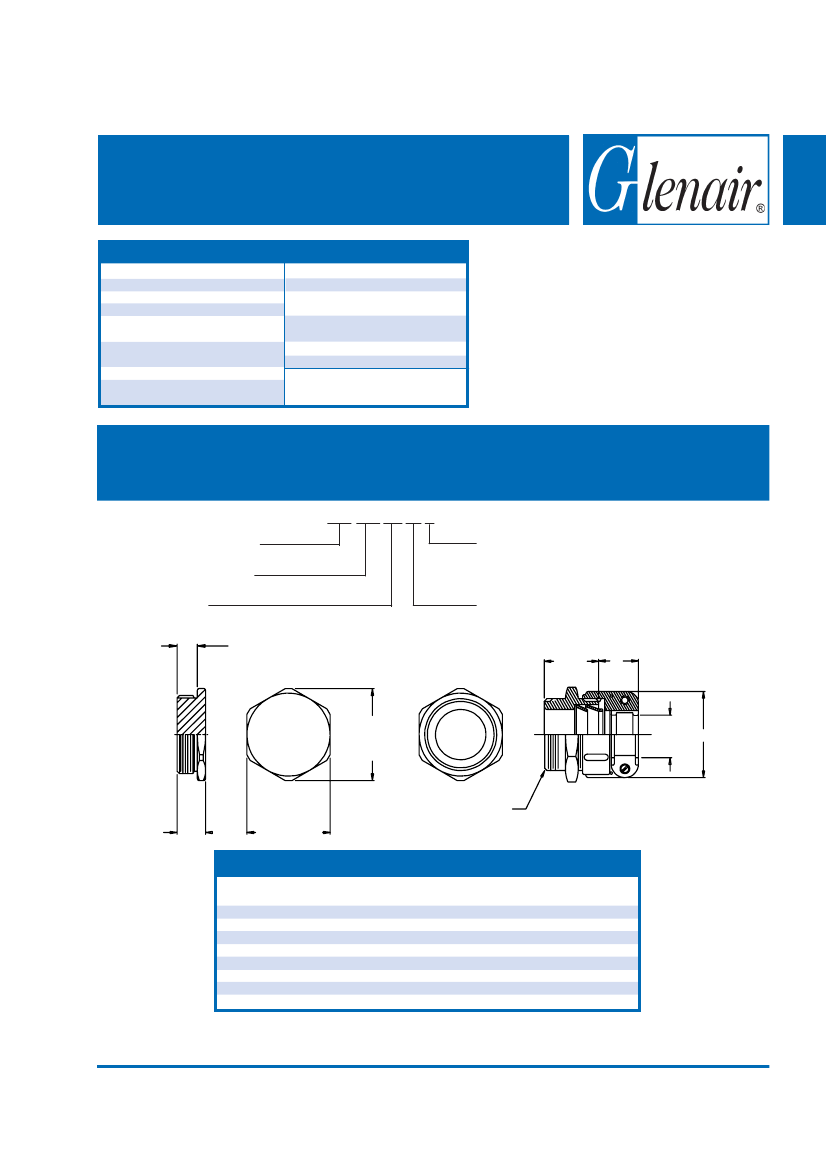

See

687-488 Series

Adapters on

Opposite

5.610 (142.5)

Page

2.945

(74.8)

.681

(17.3)

.125 (3.2) Dia

10 Places

.168 / .158

(4.3) / (4.0)

1.415 / 1.405

(35.9) / (35.7)

Metric dimensions (mm) are indicated in parentheses.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

F-14
