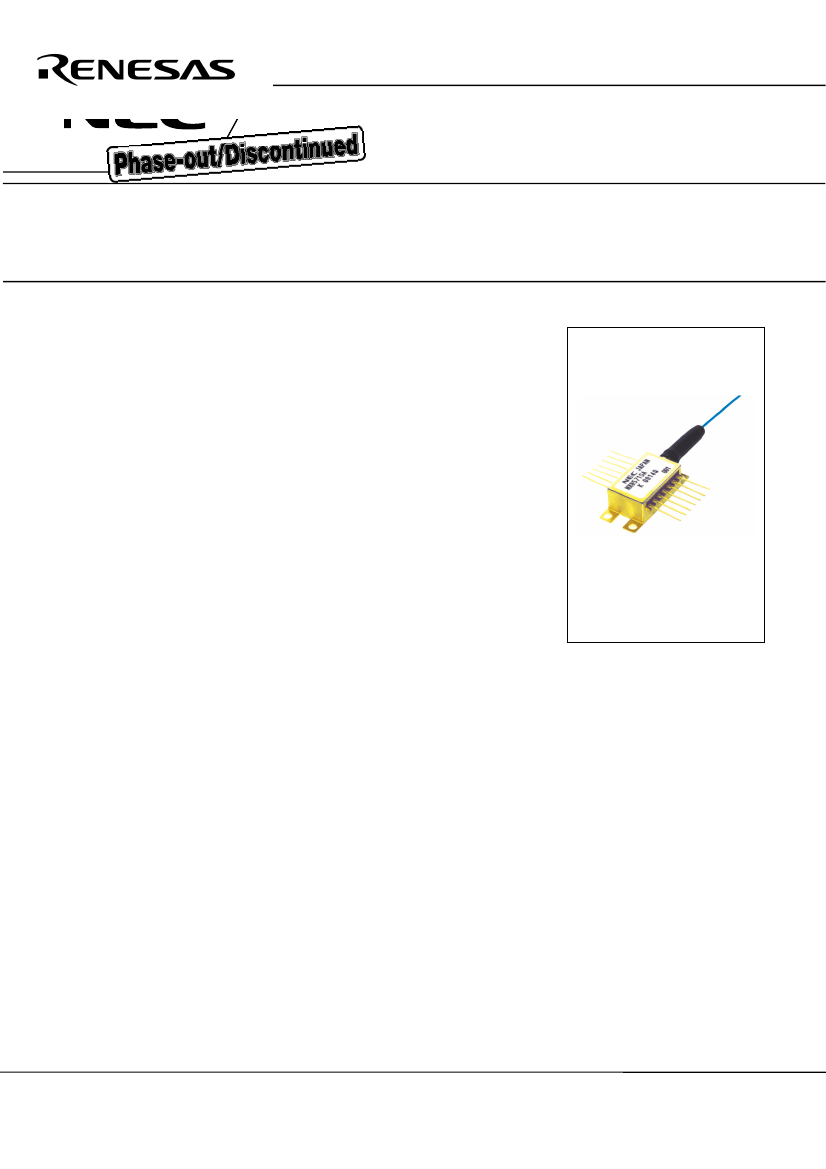

DATA SHEET
LASER DIODE
NX8571 Series
1 550 nm CW LIGHT SOURCE
InGaAsP MQW-DFB LASER DIODE MODULE
WITH WAVELENGTH MONITOR
DESCRIPTION
The NX8571 Series is a 1 550 nm Multiple Quantum Well (MQW)
structured Distributed Feed-Back (DFB) laser diode module with wavelength
monitor function.
This device is temperature tunable over 4
×
50 GHz
channels. Available at both C-band (1 530.334 to 1 565.087 nm) and L-band
(1 565.496 to 1 608.760 nm) ITU-T grid wavelengths.
This device is designed as CW light source and ideal for transmission
systems in which external modulators are used.
FEATURES
• Wavelength monitor function (Etalon Filter, Wavelength monitor PD)
• Optical output power : P
f
= 10 mW MIN.
• Available for DWDM wavelengths based on ITU-T recommendations
(50 GHz grid, please refer to the
ORDERING INFORMATION)
• 4 channel wavelength tunable capability for 50 GHz-spacing
(NX8571SC×××D)
• Internal thermo-electric cooler and isolator

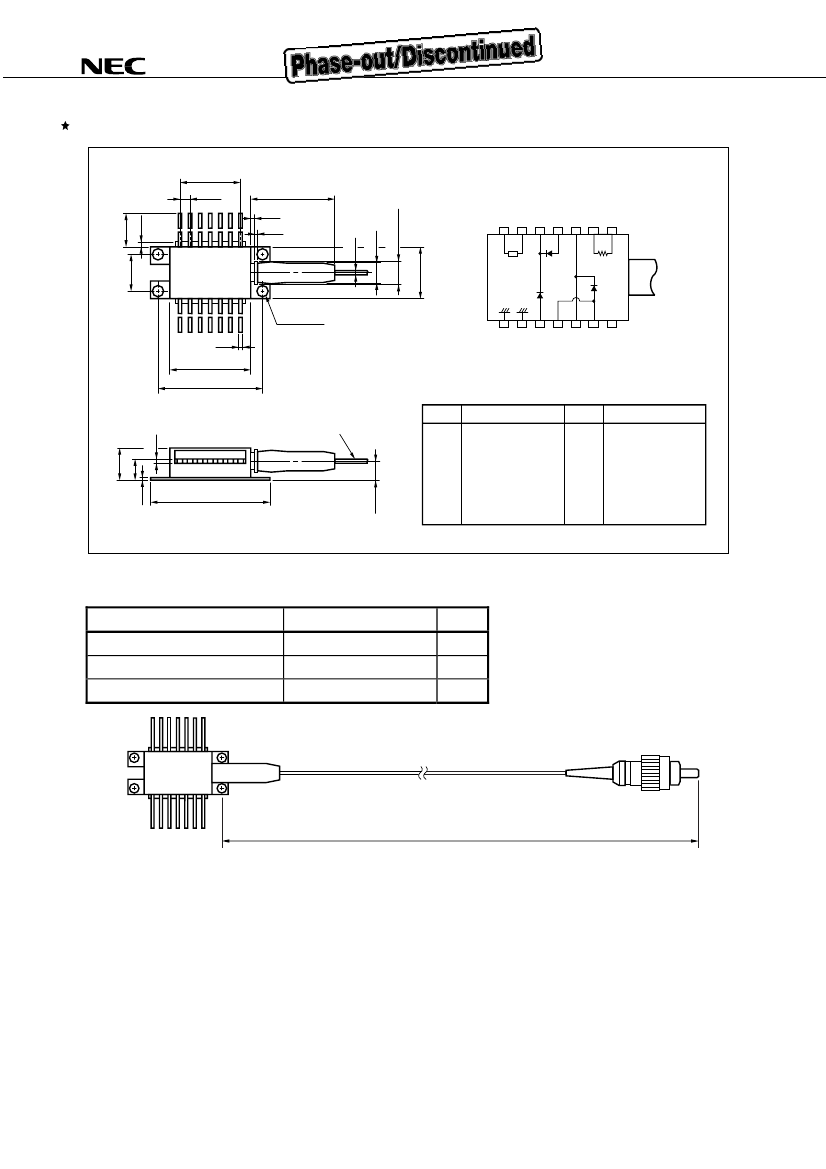

• Hermetically sealed 14-pin butterfly package
• Polarization maintain fiber pigtail
The information in this document is subject to change without notice. Before using this document, please confirm that
this is the latest version.
Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices
representative for availability and additional information.
Document No. PL10136EJ04V0DS (4th edition)
Date Published September 2005 CP(K)
Printed in Japan
The mark
shows major revised points.
NEC Compound Semiconductor Devices, Ltd. 2002, 2005
