UNISONIC TECHNOLOGIES CO., LTD
TIP41C
NPN EXPITAXIAL PLANAR
TRANSISTOR
DESCRIPTION
The UTC
TIP41C
is a NPN expitaxial planar transistor,
designed for using in general purpose amplifier and switching
applications.

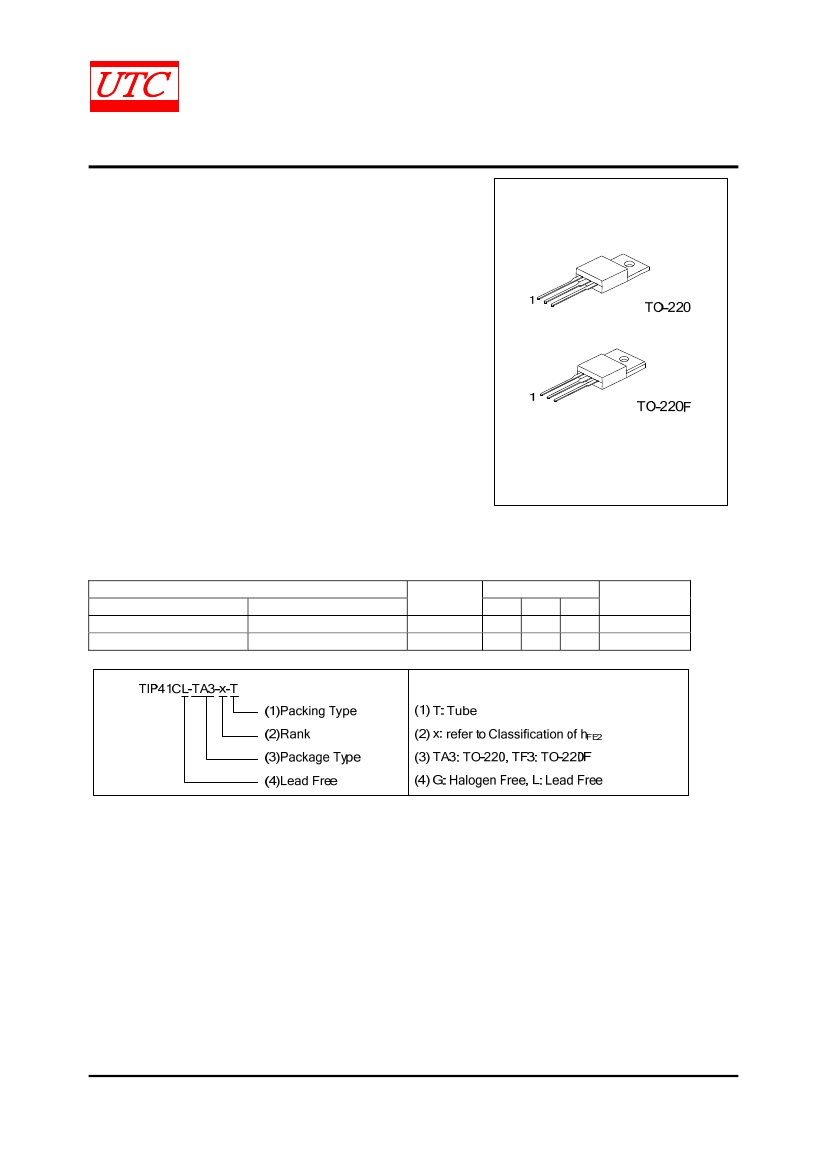

NPN PLANAR TRANSISTOR
FEATURE
* Complement to TIP42C
ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
TIP41CL-TA3-x-T
TIP41CG-TA3-x-T
TIP41CL-TF3-x-T
TIP41CG-TF3-x-T
Package
TO-220
TO-220F
Pin Assignment
1
2
3
B
C
E
B
C
E
Packing
Tube
Tube
www.unisonic.com.tw
Copyright © 2012 Unisonic Technologies Co., Ltd
1 of 3
QW-R203-008.E
TIP41C
PARAMETER
Collector Base Voltage
Collector to Emitter Voltage
Emitter-Base Voltage
SYMBOL
V
CBO
V
CEO
V
EBO
NPN PLANAR TRANSISTOR
ABSOLUTE MAXIMUM RATINGS
(T
C
=25°C, unless otherwise specified)
RATING
UNIT
100
V
100
V
5
V
DC
6
A
Collector Current
I
C
Pulse
10
A
Base Current
I
B
2
A
65
TO-220
T
C
=25°C
W
TO-220F
22
Collector Dissipation
P
C
TO-220
2
T
A
=25°C
W
TO-220F
0.7
Junction Temperature
T
J
150
°C
Storage Temperature
T
STG
-65 ~ +150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(T
C
=25°C, unless otherwise specified)
SYMBOL
V
CEO
I
CEO
I
CES
I
EBO
V
CE(SAT)
V
BE(ON)
h
FE1
DC Current Gain (Note)
h
FE2
Current Gain Bandwidth Product
f
T
Note: Pulse Test: P
W
≦300μs,
Duty Cycle≦2%
PARAMETER
Collector Emitter Sustaining Voltage (Note)
Collector Cutoff Current
Collector Cutoff Current
Emitter Cutoff Current
Collector-Emitter Saturation Voltage (Note)
Base-Emitter On Voltage (Note)
TEST CONDITIONS
I
C
=30mA, I
B
=0
V
CE
=60V, I
B
=0
V
CE
=100V, V
EB
=0
V
EB
=5V, I
C
=0
I
C
=6A, I
B
=600mA
I
C
=6A, V
CE
=4V
I
C
=300mA, V
CE
=4V
I
C
=3A, V
CE
=4V
V
CE
=10V, I
C
=500mA, f=1MHz
MIN
100
TYP MAX UNIT
V
0.7
mA
400
μA
1
mA
1.5
V
2.0
V
75
MHz
30
15
3
CLASSIFICATION OF h
FE2
RANK
RANGE
A
15~30
B
28~48
C
45~75
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R203-008.E
TIP41C

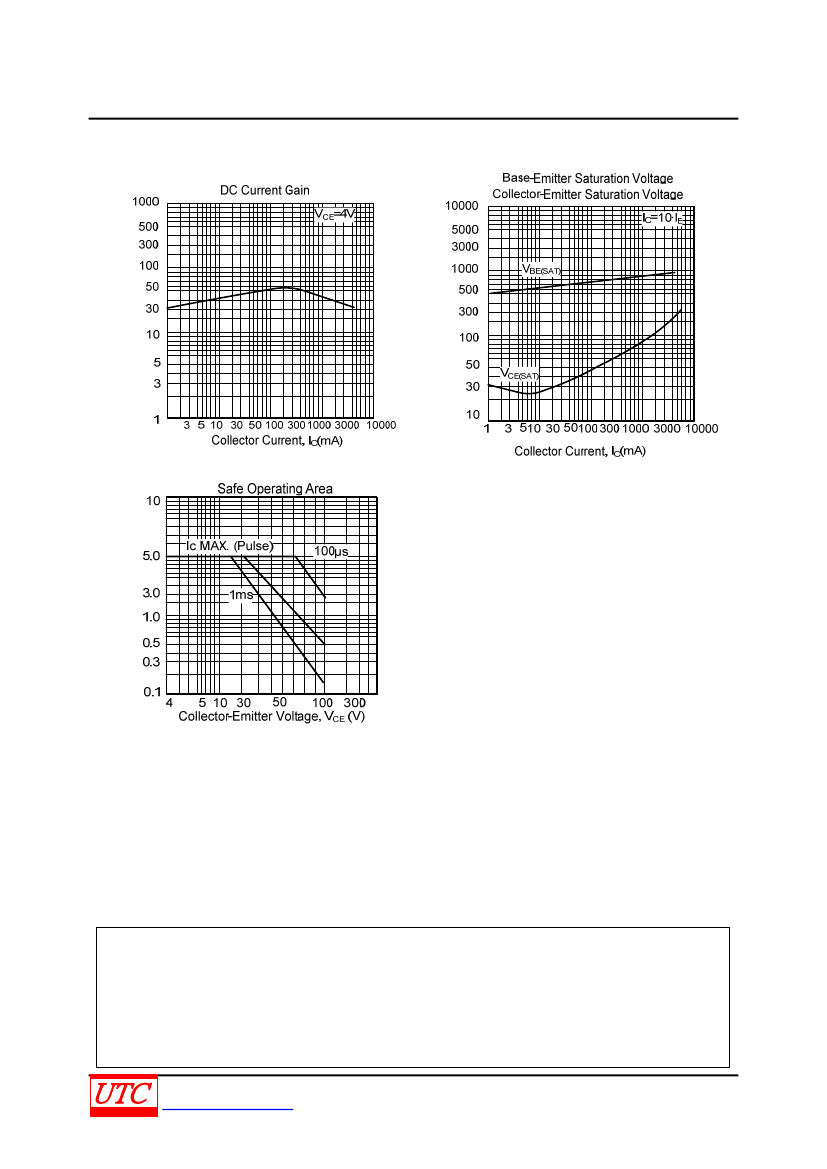

TYPICAL CHARACTERISTICS
NPN PLANAR TRANSISTOR
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
Collector Current, I
C
(A)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
Saturation Voltage, V
BE(SAT)
, V
CE(SAT)
(mV)
Dc Current Gain, h
FE
3 of 3
QW-R203-008.E
