SDC-14571-114 datasheet, PDF - EEWORLD Datasheet

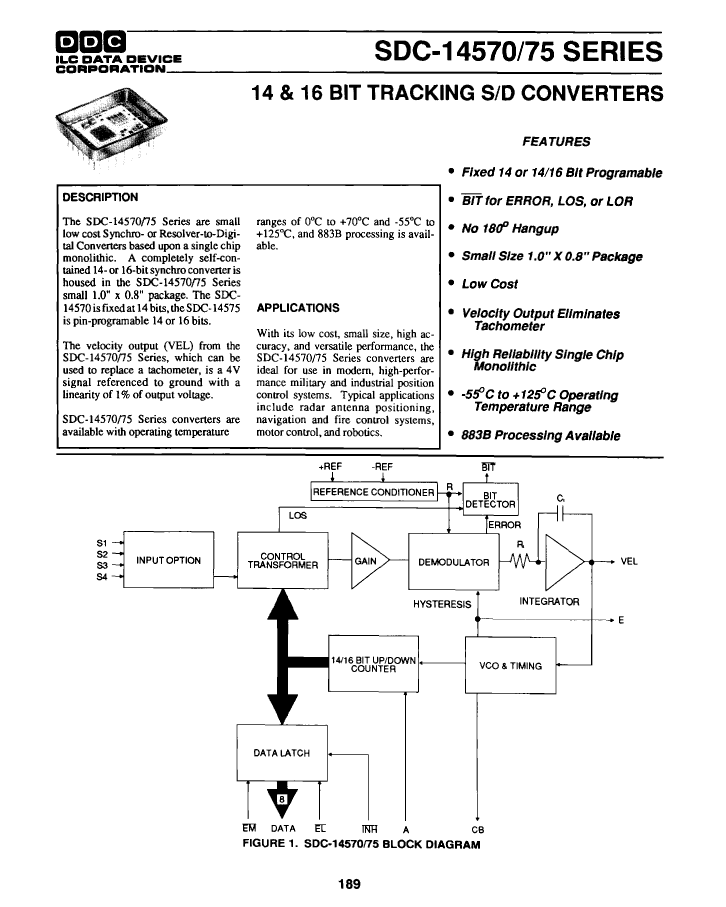

SDC-14571-114: DescriptionSynchro or Resolver to Digital Converter, Hybrid, 0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26; CategoryAnalog mixed-signal IC converter; File Size207KB，4 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

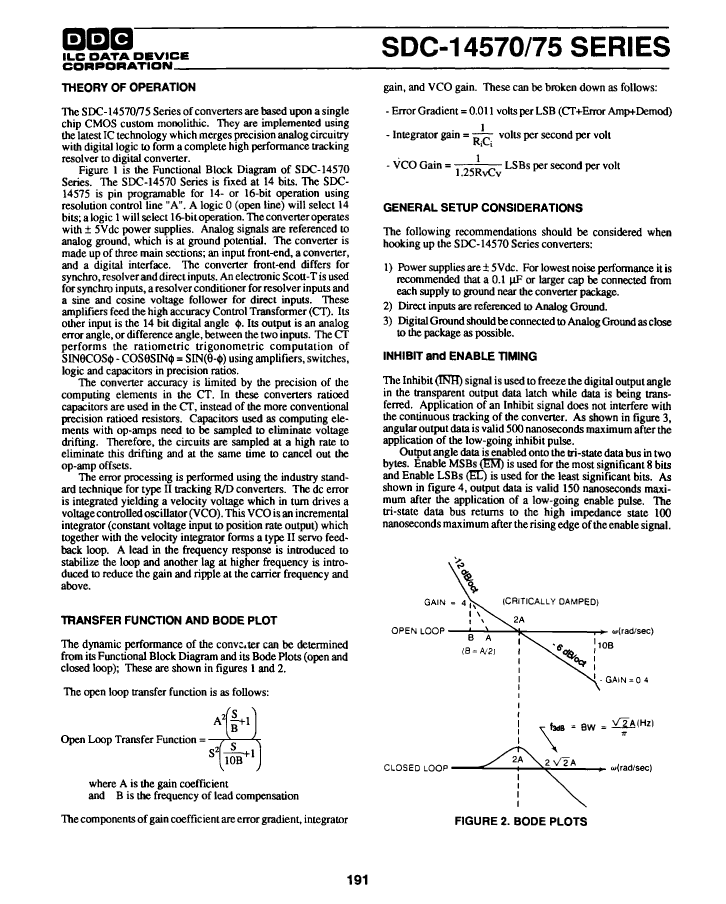

SDC-14571-114 Overview

Synchro or Resolver to Digital Converter, Hybrid, 0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26

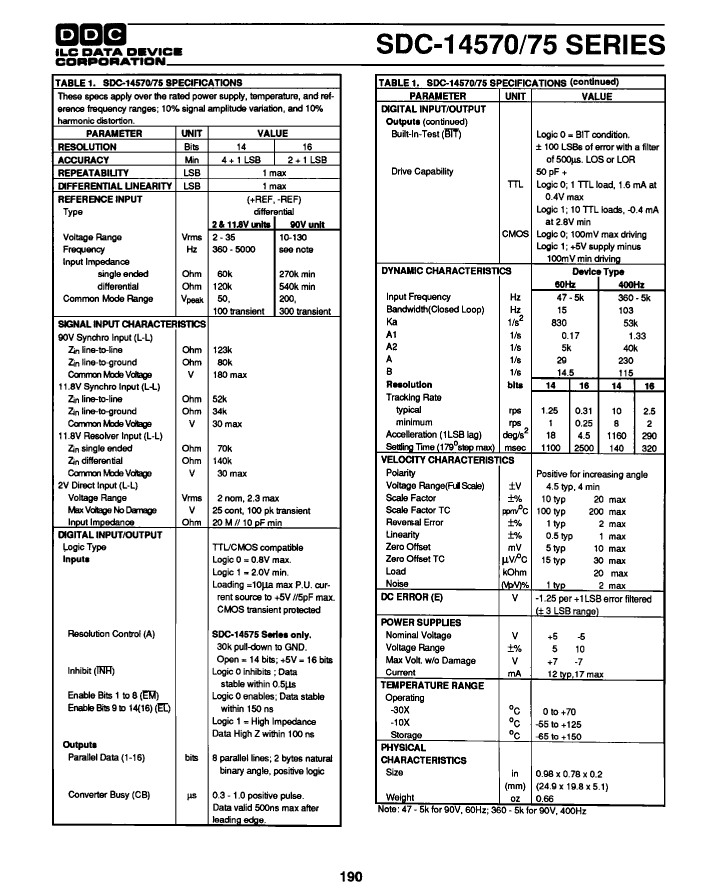

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	QFP

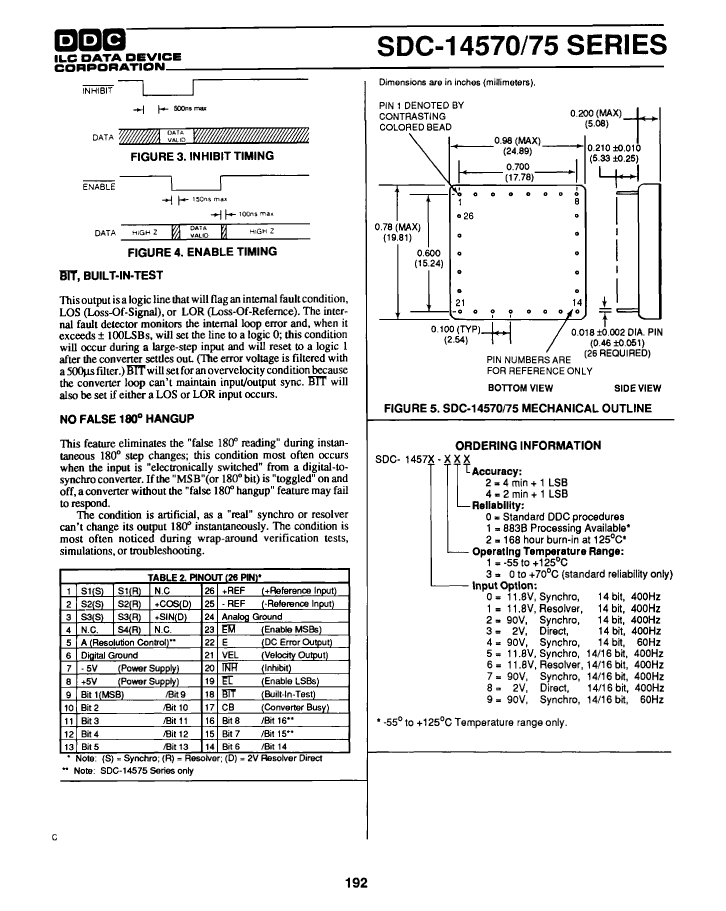

package instruction	0.980 X 0.780 INCH, 0.200 INCH HEIGHT, PACKAGE-26
Contacts	26
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN-TEST
Maximum analog input voltage	11.8 V
Maximum angular accuracy	2 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-XQIP-P26
Maximum negative supply voltage	-5.5 V
Minimum negative supply voltage	-4.5 V
Nominal negative supply voltage	-5 V
Number of digits	14
Number of functions	1
Number of terminals	26
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum stabilization time	140 µs
Signal/output frequency	5000 Hz
Maximum slew rate	17 mA
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
Maximum tracking rate	8 rps
width	15.24 mm
Base Number Matches	1
