LM285AYM-2.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LM285AYM-2.5

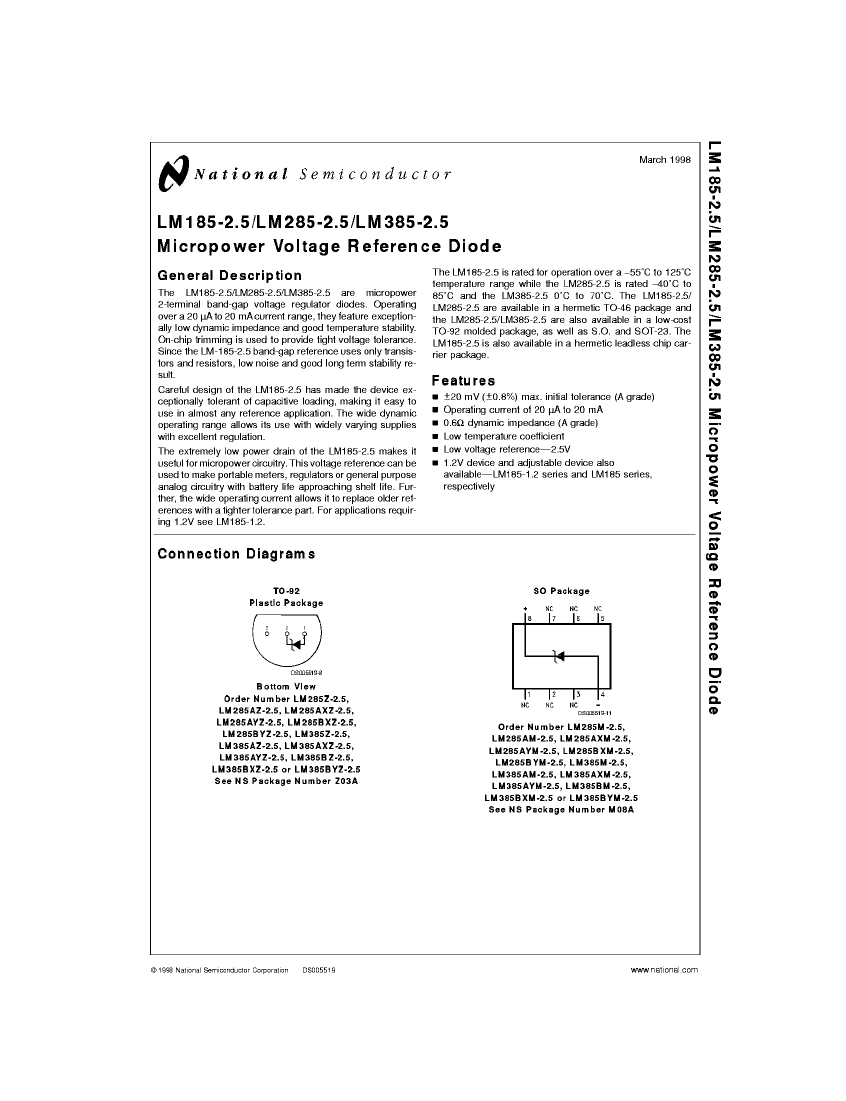

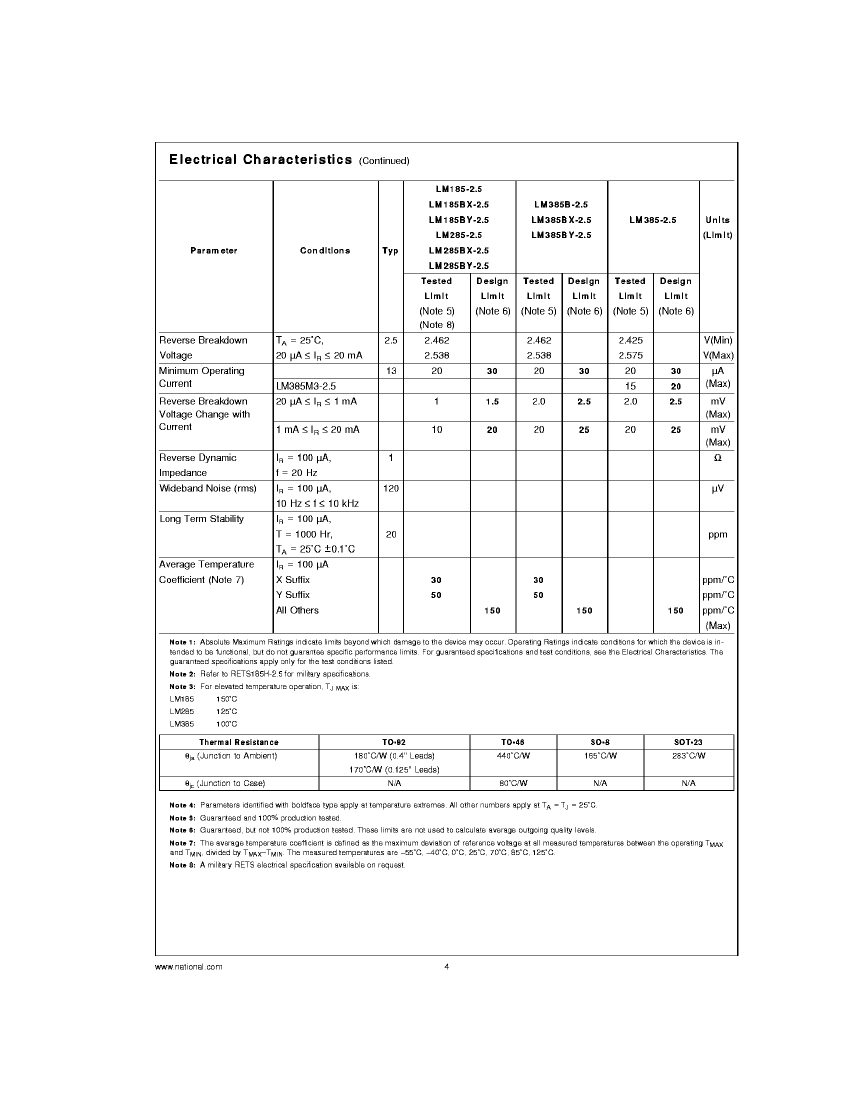

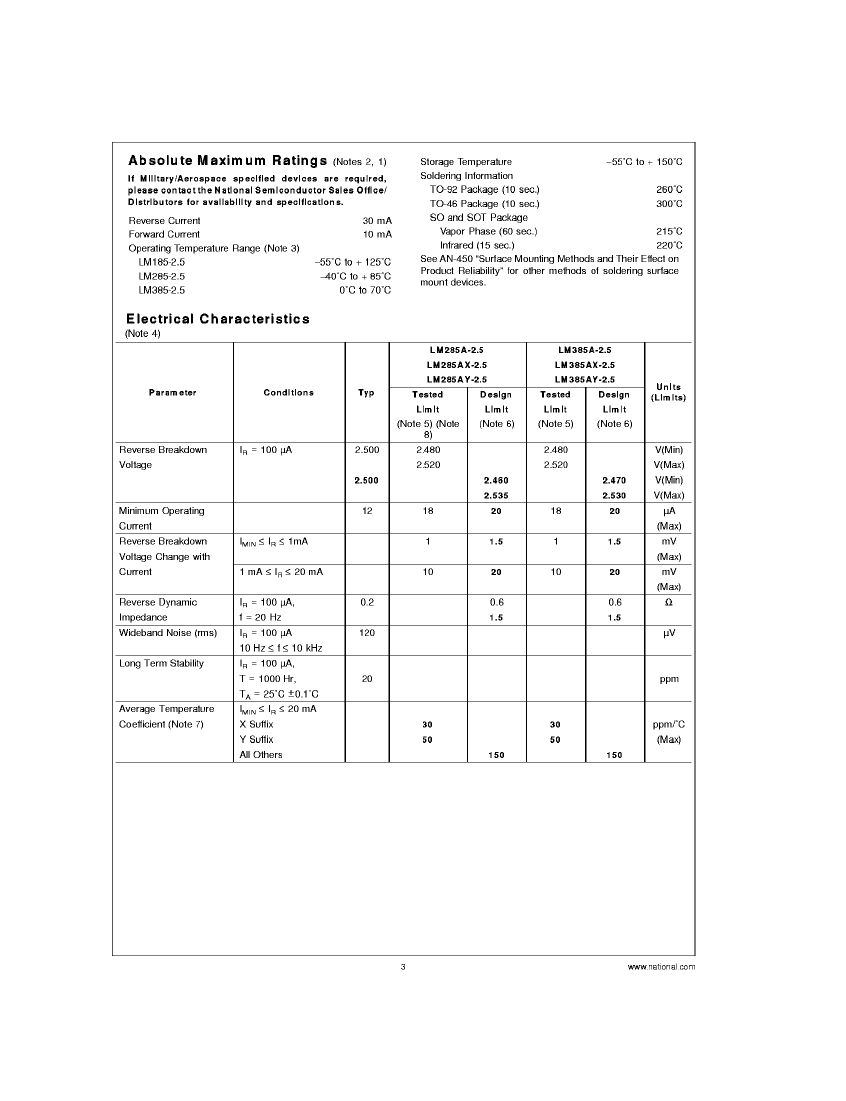

LM285AYM-2.5: Description1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5V, PDSO8, SOP-8; CategoryPower/power management The power supply circuit; File Size873KB，15 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

LM285AYM-2.5 Overview

1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5V, PDSO8, SOP-8

LM285AYM-2.5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	SOP-8
Contacts	8
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
Humidity sensitivity level	NOT SPECIFIED
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	2.52 V
Minimum output voltage	2.48 V
Nominal output voltage	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	COMMERCIAL
surface mount	YES
technology	BIPOLAR
Maximum voltage temperature coefficient	50 ppm/°C
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO
Base Number Matches	1
