The PLL is ensured stable given that the VCO is configured
to run between 200MHz to 500MHz. This allows a wide
range of output frequencies from 16.67MHz to 200MHz.
For normal operation, the external feedback input, FB_IN,
is connected to one of the outputs. The internal VCO is
running at multiples of the input reference clock set by the
feedback divider, see Table 1.
The PCS5I9352 features an LVCMOS reference clock
input and provides 11 outputs partitioned in 3 banks of 5, 4,
and 2 outputs. Bank A divides the VCO output by 4 or 6
while Bank B divides by 4 and 2 and Bank C divides by 2
and 4 per SEL(A:C) settings, see Table 2. These dividers
allow output to input ratios of 3:1, 2:1, 3:2, 1:1, 2:3, 1:2, and
1:3. Each LVCMOS compatible output can drive 50Ω series
or parallel terminated transmission lines. For series
terminated transmission lines, each output can drive one or
two traces giving the device an effective fanout of 1:22.
Functional Description
The PCS5I9352 is a low voltage high performance 200MHz
PLL-based zero delay buffer designed for high speed clock
distribution applications.
When PLL_EN# is HIGH, PLL is bypassed and the
reference clock directly feeds the output dividers. This
mode is fully static and the minimum input clock frequency
specification does not apply.
PulseCore Semiconductor Corporation
1715 S. Bascom Ave Suite 200, Campbell, CA 95008
•
Tel: 408-879-9077
•
Fax: 408-879-9018
www.pulsecoresemi.com
Notice: The information in this document is subject to change without notice.
September 2006
PCS5I9352
rev 0.3

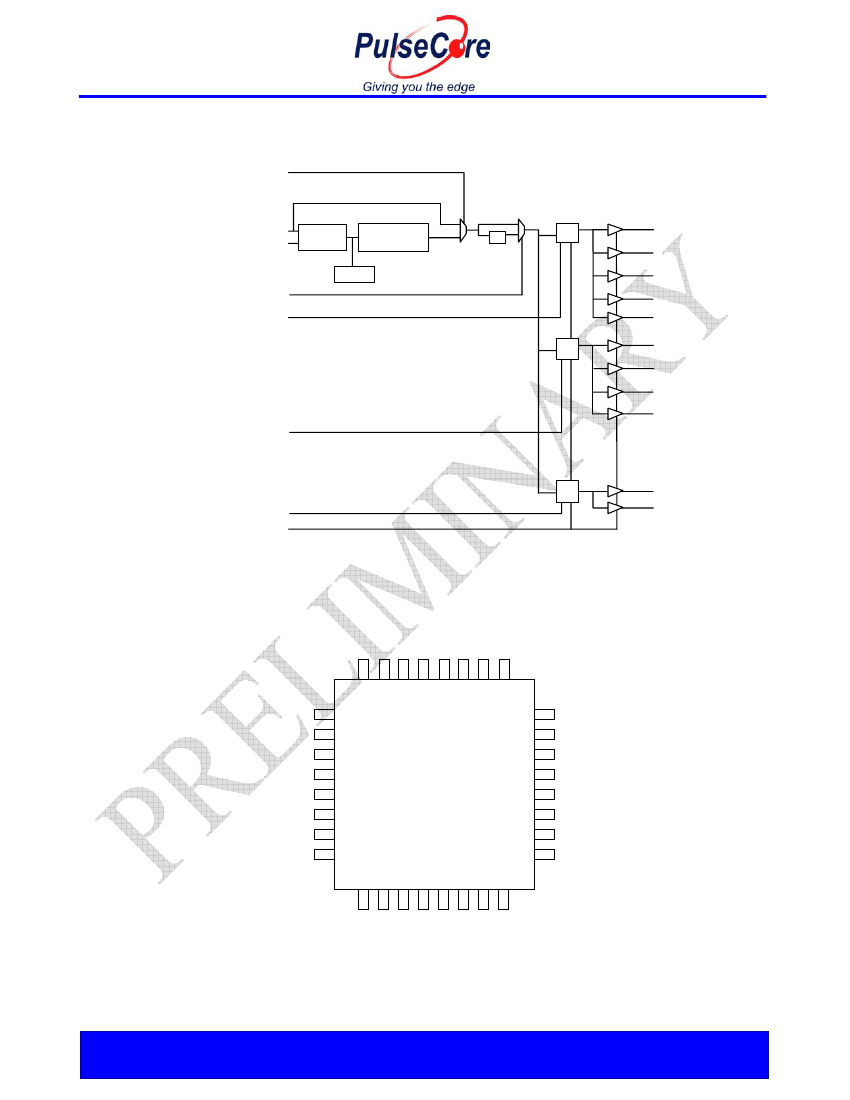

Block Diagram
PLL_EN#
REFCLK
FB_IN
VCO_SEL
SELA
Phase
Detector
VCO
200-500MHz
÷2
÷4/
÷6
QA0
QA1
QA2
QA3
QA4
LPF
÷4/
÷2
QB0
QB1
QB2
QB3
SELB
÷2/
÷4
SELC
MR/OE#
QC0
QC1
Pin Configuration
VDDQC
VSS
QB3
VDDQB
24
23
22
QC1
QC0
VSS
QB2
32 31 30 29 28 27 26 25
VCO_SEL
SELC
SELB
SELA
MR/OE#
REFCLK
AVSS
FB_IN
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16
VSS
QB1
QB0
VDDQB
VDDQA
QA4
QA3
VSS
PCS5I9352
21
20
19
18
17
PLL_EN#
2.5V or 3.3V, 200MHz, 11-Output Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
VDDQA
AVDD
VDD
VSS
QA0
QA1
QA2
2 of 12
September 2006
PCS5I9352
rev 0.3
Pin Configuration
1
Pin
6
12, 14,
15, 18, 19
22, 23,
26, 27
30, 31
8
1
5
9
2, 3, 4
16, 20
21, 25
32
10
11
7
13, 17,
24, 28, 29
Name
REFCLK
QA(0:4)
QB(0:3)
QC(0,1)
FB_IN
VCO_SEL
MR/OE#
PLL_EN#
SEL(A:C)
VDDQA
VDDQB
VDDQC
AVDD
VDD
AVSS
VSS
I/O
I, PD
O
O
O
I, PD
I, PD
I, PD
I, PD
I, PD
Supply
Supply
Supply
Supply
Supply
Supply
Supply
Type
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
VDD
VDD
VDD
VDD
VDD
Ground
Ground
Reference clock input.
Clock output bank A.
Clock output bank B.
Clock output bank C.
Description
Feedback clock input.
Connect to an output for normal operation.
This input should be at the same voltage rail as input reference
clock. See
Table 1.
VCO divider select input.
See
Table 2.
Master reset/output enable/disable input.
See
Table 2.
PLL enable/disable input.
See Table 2.
Frequency select input, Bank (A:C).
See
Table 2.
2.5V or 3.3V power supply for bank A output clocks
2,3
.
2.5V or 3.3V power supply for bank B output clocks.
2,3
2.5V or 3.3V power supply for bank C output clocks.
2,3
2.5V or 3.3V power supply for PLL.
2,3
2.5V or 3.3V power supply for core and inputs.
2,3
Analog ground.
Common ground.
Note: 1. PD = Internal pull-down.
2.A 0.1µF bypass capacitor should be placed as close as possible to each positive power pin (<0.2”). If these bypass capacitors are not close to the pins
their high frequency filtering characteristics will be cancelled by the lead inductance of the traces.
3.AVDD and VDD pins must be connected to a power supply level that is at least equal or higher than that of VDDQB, VDDQC, and VDDQD output
supply pins.
2.5V or 3.3V, 200MHz, 11-Output Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
3 of 12
September 2006
PCS5I9352
rev 0.3
Table 1: Frequency Table
VCO_SEL
0
0
0
1
1
1
Feedback
Output Divider
÷2
÷4
÷6
÷2
÷4
÷6
VCO
Input Clock * 2
Input Clock * 4
Input Clock * 6
Input Clock * 4
Input Clock * 8
Input Clock * 12
Input Frequency Range
(AVDD = 3.3V)
100MHz to 200MHz
50MHz to 125MHz
33.33MHz to 83.33MHz
50MHz to 125MHz
25MHz to 62.5MHz
16.67MHz to 41.67MHz
Input Frequency
Range (AVDD = 2.5V)
100MHz to 200MHz
50MHz to 100MHz
33.33MHz to 66.67MHz
50MHz to 100MHz
25MHz to 50MHz
16.67MHz to 33.33MHz
Table 2: Function Table
Control
VCO_SEL
PLL_EN#
MR/OE#
SELA
SELB
SELC
Default
0
0
0
0
0
0
0
VCO
PLL enabled. The VCO output
connects to the output dividers
Outputs enabled
QA = VCO÷4
QB = VCO ÷4
QC = VCO÷2
1
VCO ÷ 2
Bypass mode, PLL disabled. The input clock
connects to the output dividers
Outputs disabled (three-state), VCO running
at its minimum frequency
QA = VCO÷6
QB = VCO÷2
QC = VCO÷4
Absolute Maximum Ratings
Parameter
VDD
VDD
V
IN
V
OUT
V
TT
LU
R
PS
T
S
T
A
T
J
Ø
JC
Ø
JA
ESD
H
FIT
Description
DC Supply Voltage
DC Operating Voltage
DC Input Voltage
DC Output Voltage
Output termination Voltage
Latch Up Immunity
Power Supply Ripple
Temperature, Storage
Temperature, Operating Ambient
Temperature, Junction
Dissipation, Junction to Case
Dissipation, Junction to Ambient
ESD Protection (Human Body Model)
Failure in Time
Condition
Functional
Relative to V
SS
Relative to V
SS
Functional
Ripple Frequency < 100 kHz
Non Functional
Functional
Functional
Functional
Functional
Min
-0.3
2.375
-0.3
-0.3
200
Max
5.5
3.465
VDD+ 0.3
VDD+ 0.3
VDD ÷2
150
Unit
V
V
V
V
V
mA
mVp-p
°C
°C
°C
°C/W
°C/W
Volts
ppm
-65
-40
+150
+85
155
42
105
2000
Manufacturing test
10
Note: These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for extended periods may affect device
reliability.
2.5V or 3.3V, 200MHz, 11-Output Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
4 of 12
September 2006
PCS5I9352
Description
Condition
LVCMOS
LVCMOS
I
OL
= 15 mA
I
OH
= –15 mA
V
IL
= VSS
2
1
rev 0.3
DC Electrical Specifications
(V
DD
= 2.5V ± 5%, T
A
= -40°C to +85°C)
Parameter
V
IL
V
IH
V
OL
V
OH
I
IL
I
IH
I
DDA
I
DDQ
I
DD
C
IN
Z
OUT
Min
1.7
1.8
Typ
Max
0.7
V
DD
+ 0.3
0.6
-10
100
Unit
V
V
V
V
µA
µA
mA
mA
mA
pF
Ω
Input Voltage, Low
Input Voltage, High
Output Voltage, Low
1
Output Voltage, High
Input Current, Low
Input Current, High
PLL Supply Current
Quiescent Supply Current
Dynamic Supply Current
Input Pin Capacitance
Output Impedance
V
IL
= VDD
AVDD only
All VDD pins except AVDD
5
3
170
4
17 - 20
10
5
Note:1.Driving one 50Ω parallel terminated transmission line to a termination voltage of V
TT
. Alternatively, each output drives up to two 50
Ω
series terminated
transmission lines.
2.Inputs have pull-down resistors that affect the input current.
DC Electrical Specifications
(V
DD
= 3.3V ± 5%, T
A
= -40°C to +85°C)
Parameter
V
IL
V
IH
V
OL
V
OH
I
IL
I
IH
I
DDA
I
DDQ
I
DD
C
IN
Z
OUT
Description
Input Voltage, Low
Input Voltage, High
Output Voltage, Low
1
Output Voltage, High
1
Input Current, Low
Input Current, High
2
Condition
LVCMOS
LVCMOS
I
OL
= 24 mA
I
OL
= 12 mA
I
OH
= –24 mA
V
IL
= VSS
V
IL
= VDD
AVDD only
All VDD pins except AVDD
Min
2.0
Typ
Max
0.8
VDD + 0.3
0.55
0.30
Unit
V
V
V
V
2.4
-10
100
5
3
240
4
14 -17
10
5
µA
µA
mA
mA
mA
pF
Ω
PLL Supply Current
Quiescent Supply Current
Dynamic Supply Current
Input Pin Capacitance
Output Impedance
Note:1.Driving one 50Ω parallel terminated transmission line to a termination voltage of V
TT
. Alternatively, each output drives up to two 50
Ω
series terminated
transmission lines.
2.Inputs have pull-down resistors that affect the input current.
2.5V or 3.3V, 200MHz, 11-Output Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
