FX325BS-FREQ-BBD10010 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FX325BS-FREQ-BBD10010

FX325BS-FREQ-BBD10010: DescriptionParallel - Fundamental Quartz Crystal, 16MHz Min, 50MHz Max, LEAD FREE, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size645KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

FX325BS-FREQ-BBD10010 Overview

Parallel - Fundamental Quartz Crystal, 16MHz Min, 50MHz Max, LEAD FREE, CERAMIC, SMD, 4 PIN

FX325BS-FREQ-BBD10010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	LEAD FREE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	10 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	16 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L3.2XB2.5XH0.7 (mm)/L0.126XB0.098XH0.028 (inch)
Series resistance	90 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

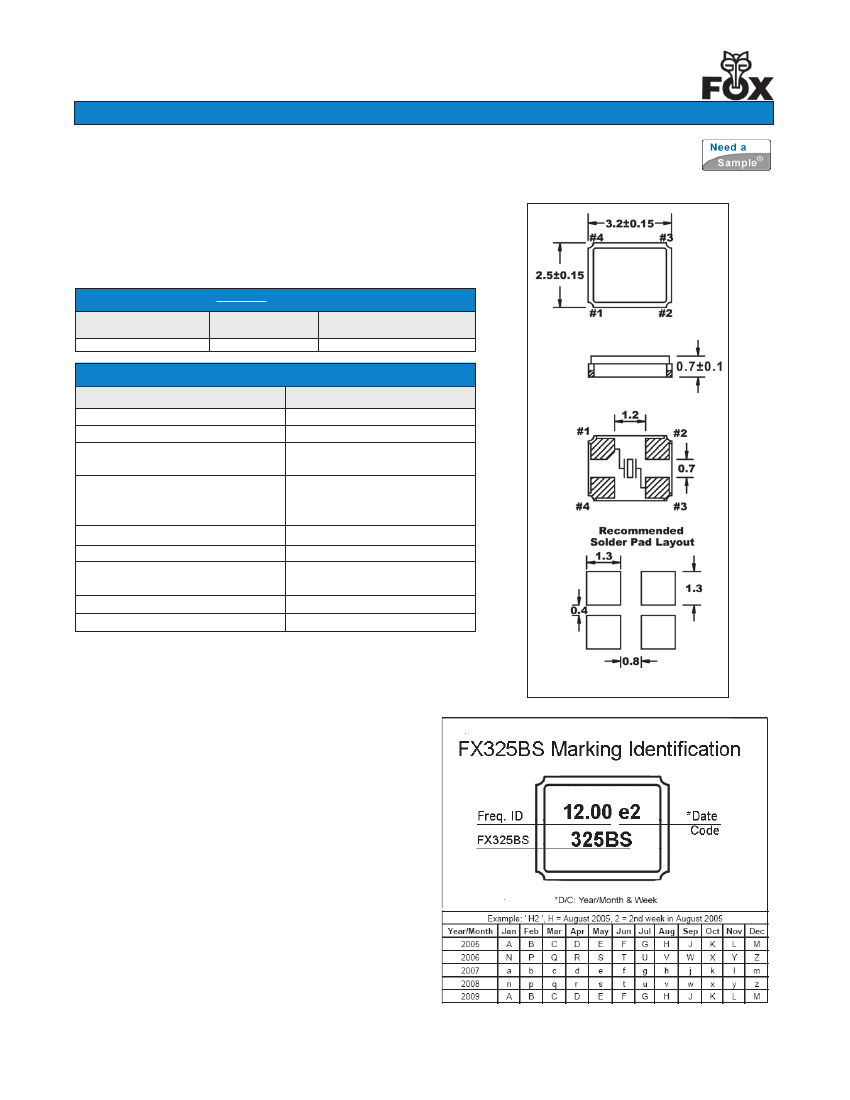

Ceramic SMD Crystal

Model: FX325BS

Page 1 of 2

Pb Free

Rev. 3/24/2006

http://www.foxonline.com/need_a_sample.htm

FEATURES

OPTIONS

• Tolerances to 10 PPM

• Low Cost

• Stabilities to 10 PPM

• Fundamental to 50 MHz

• Tape and Reel (3,000 pcs. STD) • Temperatures to -40ºC ~ +85ºC

• PART NUMBER

Learn More - Internet Required

Part Number

603-Frequency-xxxxx

Model Number

FX325BS

Frequency Range (MHz)

16.000 ~ 50.000

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Equivalent Series Resistance

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

Aging per year

MAX

(unless otherwise noted)

16.000 ~ 50.000 MHz

±50 PPM

-10ºC ~ +60ºC

-40ºC ~ +85ºC

Ω

7.0 pF

10 pF ~ Series

(Customer Specified)

0.1 mW

±5 PPM

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer

Service for specific requirements.

All specifications subject to change without notice.

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Taiwan

Tel: +886.2.22073427 Fax +886.2.22073486

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221

FX325BS-FREQ-BBD10010 Related Products

	FX325BS-FREQ-BBD10010	603-FREQ-BBD10010	603-FREQ-BBD00010
Description	Parallel - Fundamental Quartz Crystal, 16MHz Min, 50MHz Max, LEAD FREE, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 16MHz Min, 50MHz Max, LEAD FREE, CERAMIC, SMD, 4 PIN	Series - Fundamental Quartz Crystal, 16MHz Min, 50MHz Max, LEAD FREE, CERAMIC, SMD, 4 PIN
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]
package instruction	LEAD FREE, CERAMIC, SMD, 4 PIN	LEAD FREE, CERAMIC, SMD, 4 PIN	LEAD FREE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Ageing	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL
Drive level	100 µW	100 µW	100 µW
frequency stability	0.005%	0.005%	0.005%
frequency tolerance	50 ppm	50 ppm	50 ppm
JESD-609 code	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	50 MHz	50 MHz	50 MHz
Minimum operating frequency	16 MHz	16 MHz	16 MHz
Maximum operating temperature	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
physical size	L3.2XB2.5XH0.7 (mm)/L0.126XB0.098XH0.028 (inch)	L3.2XB2.5XH0.7 (mm)/L0.126XB0.098XH0.028 (inch)	L3.2XB2.5XH0.7 (mm)/L0.126XB0.098XH0.028 (inch)
Series resistance	90 Ω	90 Ω	90 Ω
surface mount	YES	YES	YES
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)
load capacitance	10 pF	10 pF	-
Base Number Matches	1	1	-
