A36-2 / SMA36-2
Cascadable Amplifier
10 to 2600 MHz
Features
•
•
•
•
AVAILABLE IN SURFACE MOUNT
ULTRA-WIDE BANDWIDTH 100-2600 MHz
HIGH GAIN-TWO STAGES 15 dB (TYP.)
MEDIUM OUTPUT LEVEL +14 dBm,
2000-2600 MHz (TYP.)
Rev. V3

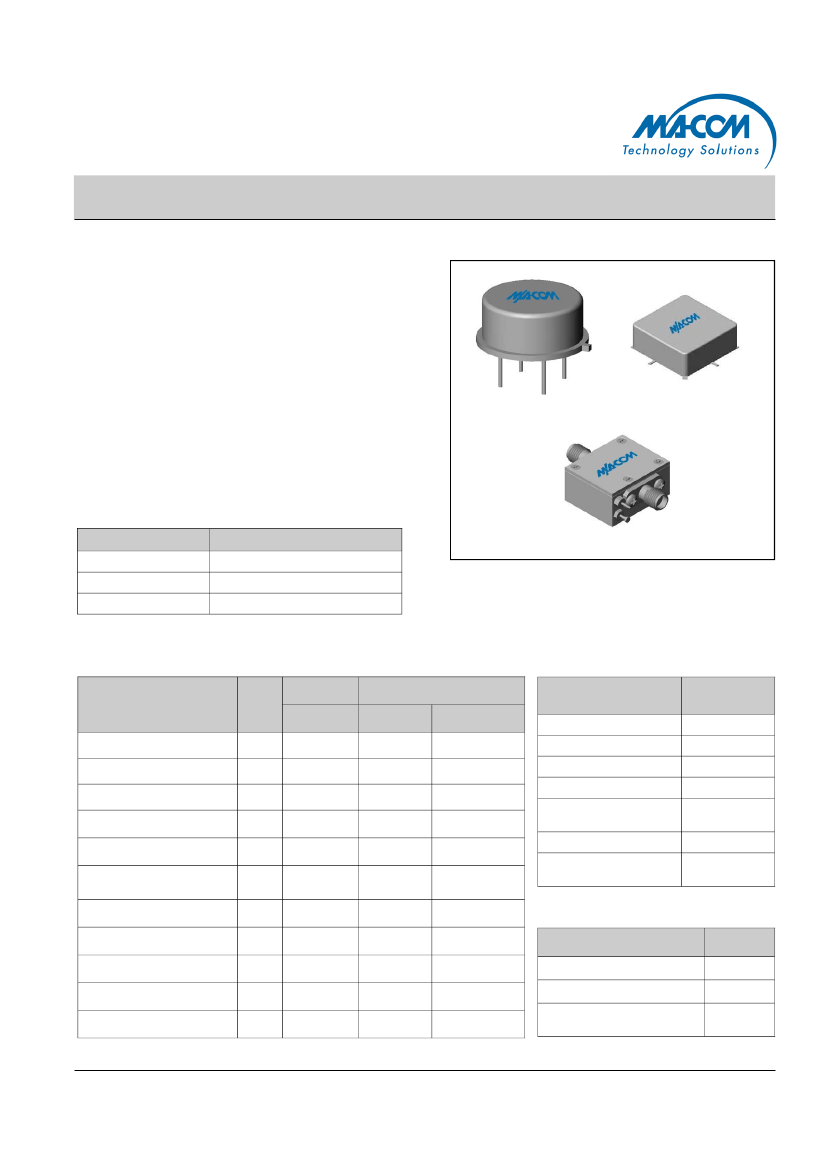

Product Image
Description
The A36-2 RF amplifier is a discrete hybrid design, which uses
thin film manufacturing processes for consistent performance
and high reliability.
This 2 stage bipolar transistor feedback amplifier design
displays impressive performance over a broadband
frequency range. An active DC biasing network insures
temperature-stable performance.
Both TO-8 and Surface Mount packages are hermetically
sealed, and MIL-STD-883 environmental screening is available
Ordering Information
Part Number
A36-2
SMA36-2
MAAM-007947-CA3602
Package
TO-8
Surface Mount
SMA Connectorized **
**The connectorized version is not RoHs compliant.
Electrical Specifications: Z
0
= 50Ω, V
CC
= +15 V
DC
Typical
Parameter
Frequency
Small Signal Gain (min)
Gain Flatness (max)
Reverse Isolation
Noise Figure (max)
Power Output
@ 1 dB comp. (min)
IP3
IP2
Second Order Harmonic IP
VSWR Input / Output (max)
DC Current @ 15 Volts (max)
mA
Absolute Maximum Ratings
Parameter
Storage Temperature
Case Temperature
DC Voltage
Continuous Input Power
Short Term Input power
(1 minute max.)
Peak Power (3 µsec max.)
“S” Series Burn-In
Temperature (case)
Guaranteed
0º to 50ºC
100-2600
14.0
±0.8
Units
25ºC
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBm
100-2700
15.0
±0.5
28
7.0
14.0
+30
+32
+37
1.9:1 / 1.9:1
63
2.1:1 / 2.1:1
64
2.3:1 / 2.3:1
67
7.5
12.5
8.0
12.0
Absolute
Maximum
-62ºC to +125ºC
+125ºC
+17 V
10 dBm
50 mW
0.5 W
+125ºC
-54º to +85ºC*
100-2600
13.0
±1.2
Thermal Data: V
CC
= +15 V
DC
Parameter
Thermal Resistance
θ
jc
Transistor Power Dissipation P
d
Junction Temperature Rise
Above Case T
jc
Rating
45ºC/W
0.426 W
+19ºC
* Over temperature performance limits for part number CA36-2, guaranteed from 0
o
C to +50
o
C only.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
A36-2 / SMA36-2
Cascadable Amplifier
10 to 2600 MHz

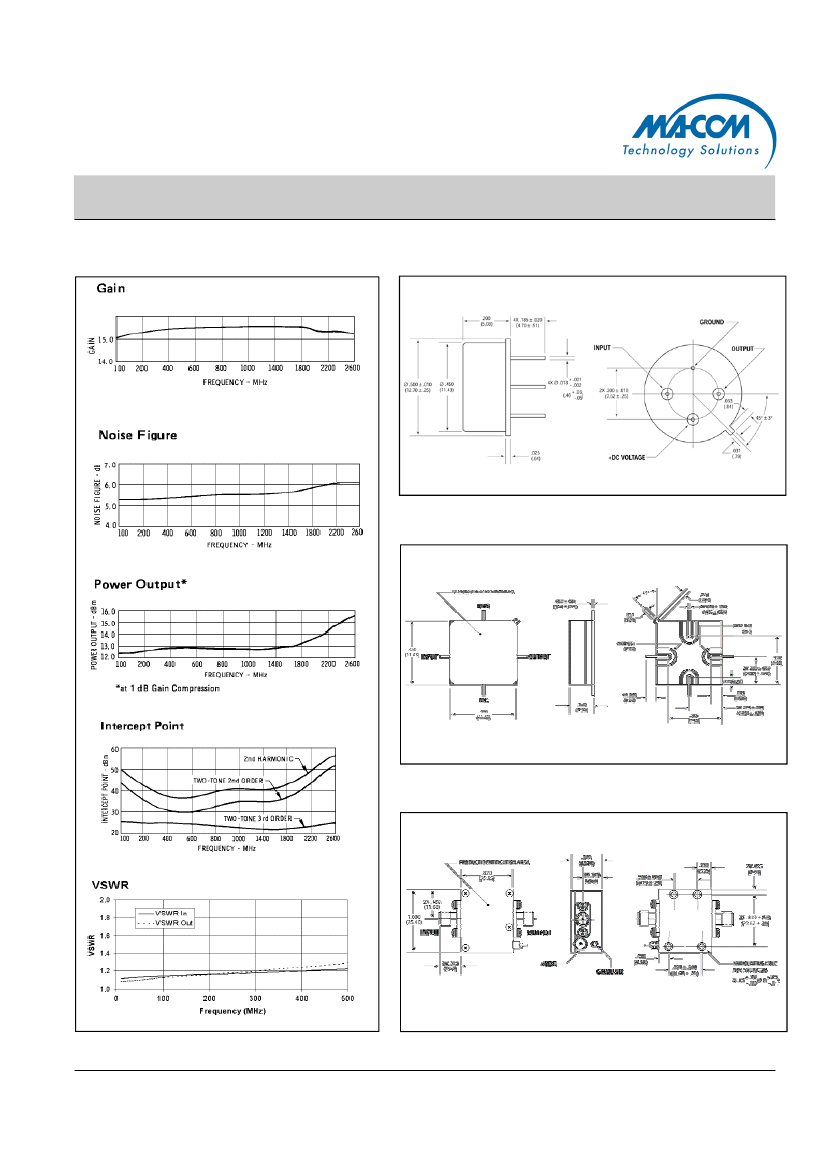

Typical Performance Curves at +25°C
Outline Drawing: TO-8
*
Rev. V3
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: Surface Mount
*
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: SMA Connectorized
*
WEIGHT: 19 grams (0.67 oz.) max
∗
2
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
