LPC-5TMLG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LPC-5TMLG

LPC-5TMLG: Description5 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

LPC-5TMLG Overview

5 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT

LPC-5TMLG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	LPC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

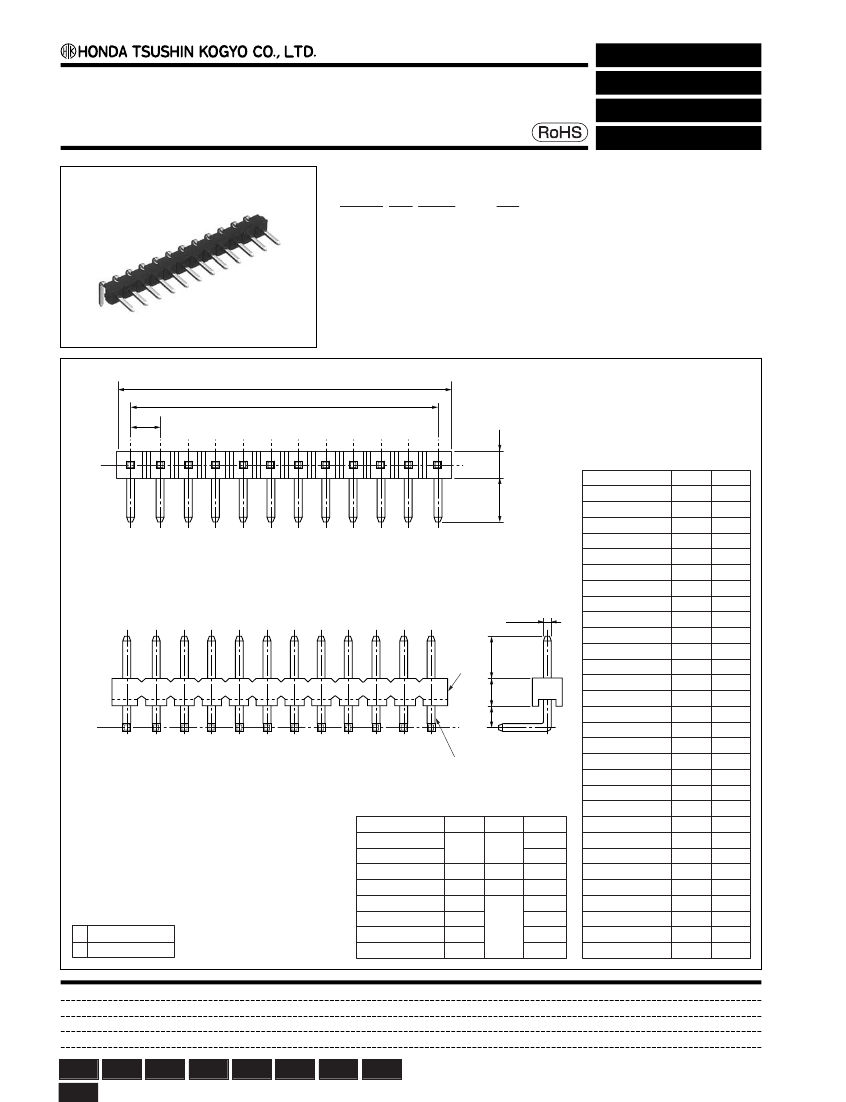

2 mm pitch connector

Right-angle through hole type male connector for PCB

LPC-( )(T )ML( )

●

Configuration of product Part No.

For PCB

Right-angle Through hole

LPC- ( ) (T ) ML ( )

➀

➁

➂

➃

➀

Series name

➁

No. of contacts: 1-30

➂

Length No. of contact:

Refer to the table of dimensions below.

➃

Contact plating

+S: Tin plate

G : Gold plate

●

Dimensions

Part No.

LPC-1(T )ML( )

LPC-2(T )ML( )

LPC-3(T )ML( )

LPC-4(T )ML( )

LPC-5(T )ML( )

LPC-6(T )ML( )

LPC-7(T )ML( )

LPC-8(T )ML( )

œ0.5

LPC-9(T )ML( )

LPC-10(T )ML( )

LPC-11(T )ML( )

LPC-12(T )ML( )

LPC-13(T )ML( )

LPC-14(T )ML( )

LPC-15(T )ML( )

LPC-16(T )ML( )

LPC-17(T )ML( )

™

LPC-18(T )ML( )

LPC-19(T )ML( )

LPC-20(T )ML( )

LPC-21(T )ML( )

Part No.

LPC-( )ML( )

LPC-( )T4ML( )

LPC-( )T5ML( )

LPC-( )T6ML( )

LPC-( )T8ML( )

LPC-( )T9ML( )

LPC-( )T12ML( )

LPC-( )T14ML( )

6.5

3.5

1.9

0.4

1.8

1.5

2.4

2.7

0.9

LPC-22(T )ML( )

LPC-23(T )ML( )

LPC-24(T )ML( )

LPC-25(T )ML( )

LPC-26(T )ML( )

LPC-27(T )ML( )

LPC-28(T )ML( )

LPC-29(T )ML( )

LPC-30(T )ML( )

●

Components

➀

Insulator

➁

Contacts

Because some combinations of

“Configurations of Product Part

No.”, are under consideration

for development, please contact

us for availability details.

Mating connectors:

LPC series female connectors or shunt plugs

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

Recommended Resources

Do you understand military switching power supply reliability technology?

One of the lighting voice-activated switch circuits using thyristors

Low speed monostable circuit

Small power transformer self-excited inverter circuit diagram

High resistance adjustable gain DC amplifier circuit

Radio frequency LCD display radio circuit diagram (1)
