DS-312TNC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DS-312TNC

DS-312TNC: DescriptionFour-Way Power Dividers 10 - 500 MHz; CategoryWireless rf/communication Radio frequency and microwave; File Size87KB，3 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

DS-312TNC Overview

Four-Way Power Dividers 10 - 500 MHz

DS-312TNC Parametric

Parameter Name	Attribute value
Maker	MACOM
package instruction	C-14
Reach Compliance Code	compli
Other features	TNC
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	44.77 dBm
Maximum insertion loss	0.85 dB
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

DS-112 / DS-312

Four-Way Power Divider,

10 - 500 MHz

Features

•

Low Loss: 0.6 dB Typical

High Isolation: 30 dB Typical

Low VSWR: 1.2:1 Typical

Impedance: 50 Ohms Nominal

Maximum Power Rating or Input Power: 1W Max.

Internal Load Dissipation: Ds-112 -0.05 W Max.

DS-312– 0.25 Watts Max.

•

MIL-STD-202 Screening Available

Rev. V5

FP-5 (DS-112)

Description

A Power Divider is ideally a lossless reciprocal

device which can also perform vector summation of

two or more signals and thus is sometimes called a

power combiner or summer.

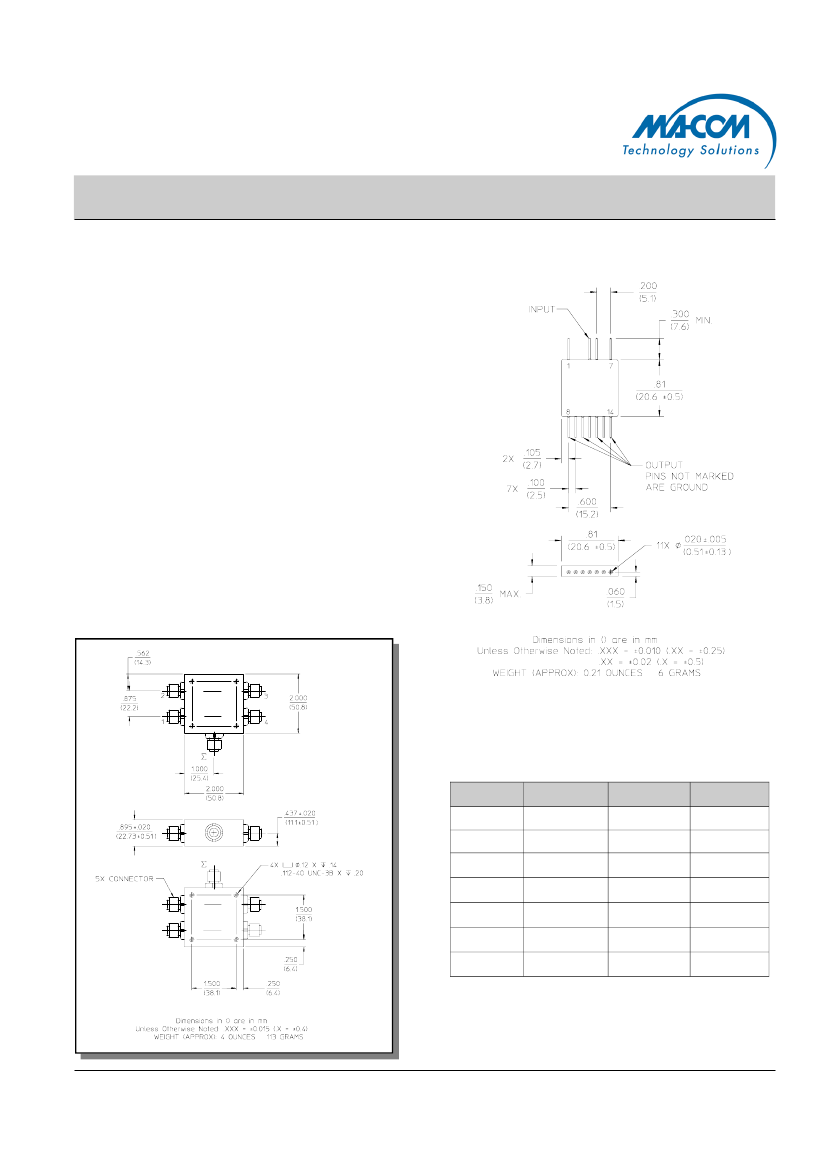

C-14 (DS-312)

Pin Configuration (DS-112)

Pin No.

Function

GND

None

Input

GND

None

GND

Pin No.

Function

Output

GND

Output

GND

Output

GND

Output

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.

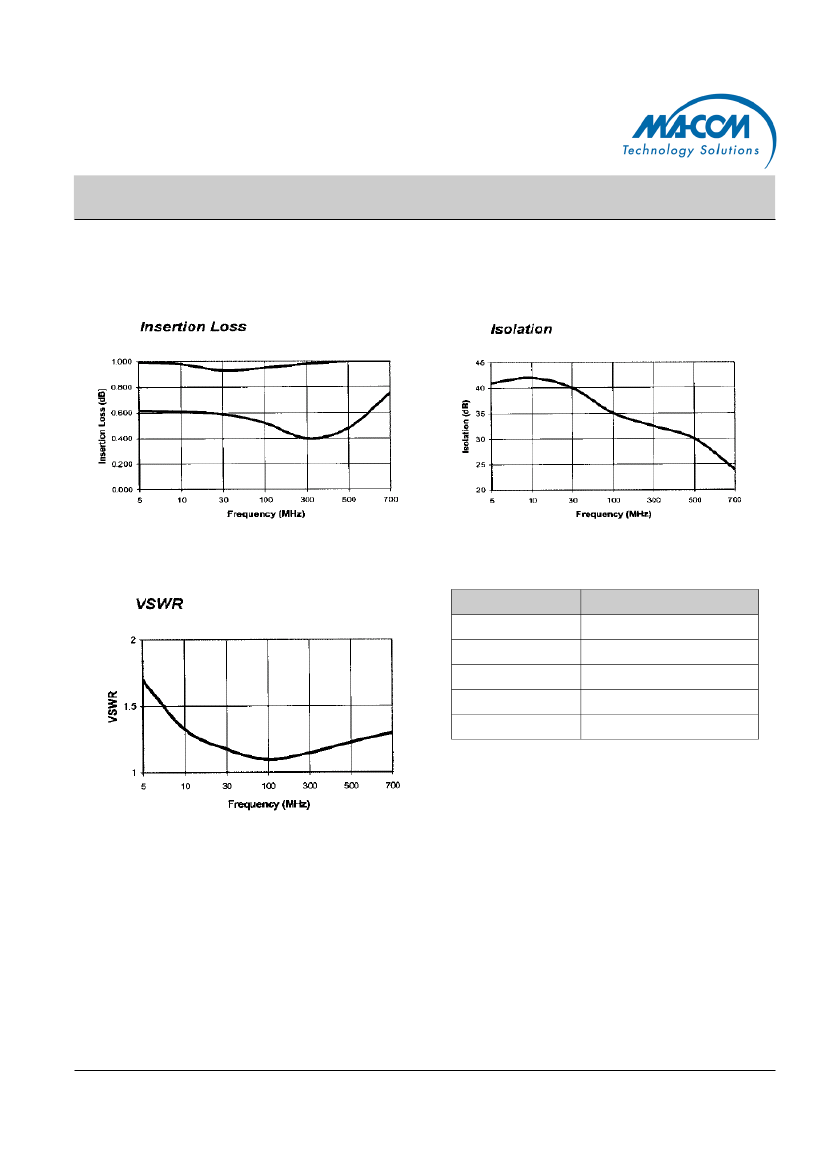

DS-312TNC Related Products

	DS-312TNC	DS-112	DS-312	DS-312N	DS-312BNC
Description	Four-Way Power Dividers 10 - 500 MHz	Four-Way Power Dividers 10 - 500 MHz	Four-Way Power Dividers 10 - 500 MHz	Four-Way Power Dividers 10 - 500 MHz	Four-Way Power Dividers 10 - 500 MHz
Maker	MACOM	MACOM	MACOM	MACOM	MACOM
Reach Compliance Code	compli	unknow	unknow	compli	compli
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Maximum input power (CW)	44.77 dBm	30 dBm	30 dBm	44.77 dBm	44.77 dBm
Maximum insertion loss	0.85 dB	0.85 dB	0.85 dB	0.85 dB	0.85 dB
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5	1.5
package instruction	C-14	-	-	C-14	C-14
Other features	TNC	-	-	N	BNC
structure	COAXIAL	-	-	COAXIAL	COAXIAL
