34W-NWW48HD-S9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 34W-NWW48HD-S9

34W-NWW48HD-S9: DescriptionSingle Color LED, White, Water Clear,; CategoryLED optoelectronic/LED photoelectric; File Size169KB，2 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com; Environmental Compliance

Download Datasheet Parametric View All

34W-NWW48HD-S9 Overview

Single Color LED, White, Water Clear,

34W-NWW48HD-S9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Visual Communications Company, LLC
Reach Compliance Code	unknown
color	WHITE
Configuration	SINGLE WITH BUILT-IN DIODE
Lens type	WATER CLEAR
Nominal luminous intensity	1100.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	21.95 mm
method of packing	BULK
shape	ROUND
surface mount	NO
Terminal pitch	2.9 mm
perspective	55 deg
Base Number Matches	1

Preview

Download Datasheet

View All

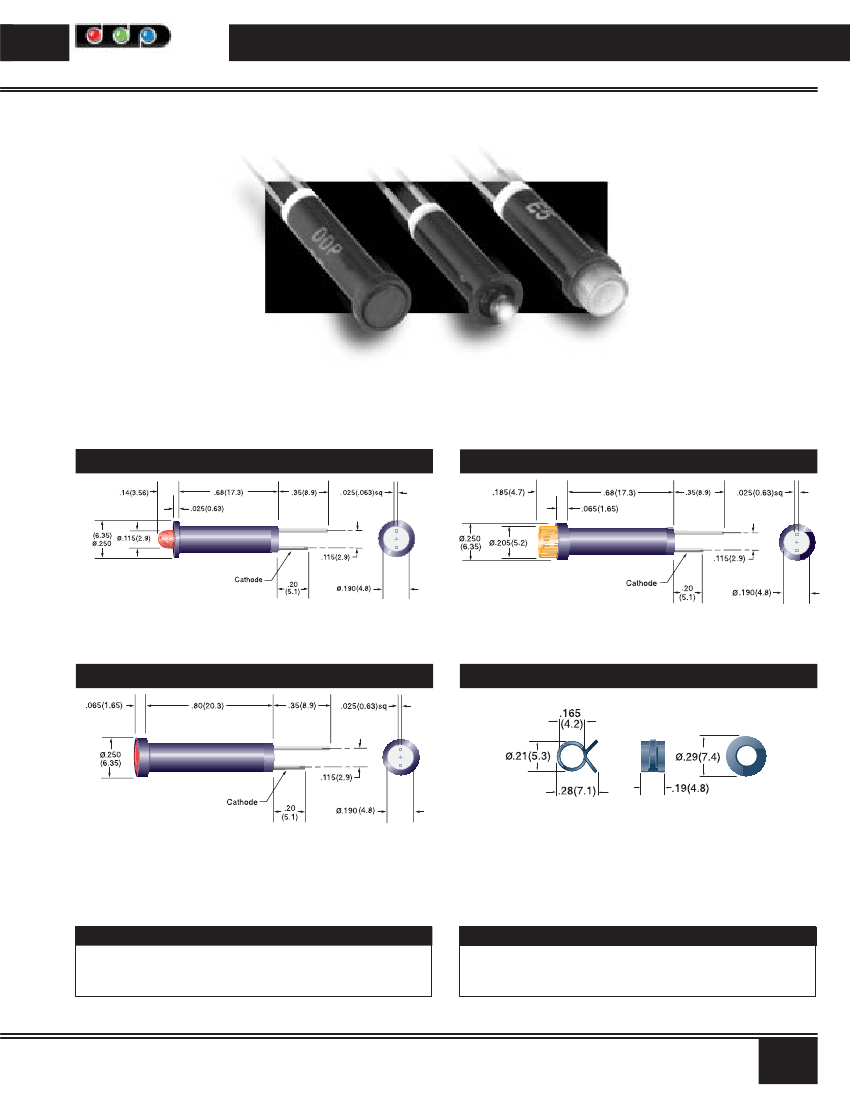

.190" MOUNT PANEL LIGHTS

30 Series

- Mounting Hardware Provided

- For Detailed LED Data, See Discrete Section, MODEL 125

Data Display Products

Model

305

[1]

Wires

(optional)

TO ORDER, FOLLOW THE EXAMPLE:

Select one

BOLD

component from each numbered category in the tables below.

Lens

Diffusion

-C

Model

-BCR

LED

Voltage

24H

Lens

Color

Bezel

Color

➜

Part Number

34-BCR24H-CR0

LED

-BR

-BA

-BG

STANDARD INTENSITY - DIFFUSED ENCAPSULATION

λpk

Color

RED

AMB

GRN

(nm)

Voltage/Current

Design

Max

Vf/If

V/C Table I

5V/27mA

5.5V/40mA

12V/27mA

14V/35mA

15V/24mA

16.5V/28mA

24V/17mA

26V/20mA

28V/16.5mA

30V/18mA

48V/15mA

50V/16mA

60V/9mA

65V/10mA

120VAC/3.5mA

130VAC/4mA

Voltage/Current

Design

Max

Vf/If

V/C Table II

5V/15mA

6V/25Ma

12V/15mA

14V/20mA

15V/15mA

16.5V/18mA

24V/15mA

26V/18mA

28V/15mA

30V/17mA

48V/9.5mA

50V/10mA

60V/7mA

65V/8mA

120VAC/3.5mA

130VAC/4mA

[2]

(mcd)

Viewing

V/C

Table

[3]

Angle

Voltage

[4]

12H

15H

24H

28H

48H

60H

120

[8]

635

583

565

MEDIUM INTENSITY - TINTED ENCAPSULATION

LED

-BCR

-BCA

-BCG

λpk

Color

RED

AMB

GRN

(nm)

[2]

(mcd)

Viewing

V/C

Table

[3]

Angle

635

583

565

Lens

Diffusion

-C

Clear

-N

Diffused

HIGH INTENSITY - WATERCLEAR ENCAPSULATION

LED

-NWR

-NWA

-NWG

-NWB

-NWW

[6]

λpk

Color

RED

AMB

GRN

BLU

WHT

(nm)

[2]

(mcd)

Viewing

V/C

Table

[3]

Angle

35/35

634

592

520

465

[9]

2500

3200

2000

600

1100

Lens Color

Red

Amber

Yellow

Blue

Water

Clear

-S

Smoke

[7]

SPECIALTY LEDs

LED

-RLP

[5]

-ALP

[5]

-GLP

[5]

-DRG

[6]

λpk

Color

RED

AMB

GRN

RED/GRN

(nm)

[2]

(mcd)

Viewing

V/C

Table

[3]

Angle

118

Description

Low Power

Bi-Color, Red Cathode

Green

635

583

565

635/567

2.1

1.6

2.1

4.3/3.7

Bezel

Color

Black

White

[1] Model 305 has no lens. Omit Lens Diffusion and Color (e.g. 305-NWG5H-0).

[2] Iv = typical luminous intensity @ If = 20mA(Ta =25°C). Iv is measured without lenses.

For Low Power LEDs, If = 2mA. For Bi-color LEDs, lf=10mA.

[3] See Voltage/Current table for design specifications. Design current for low power LEDs = 2mA.

[4] Ta = 25°C. Voltage "2" indicates external resistor required. Voltages 5H through 60H are VDC.

For AC operation, insert D after Voltage (e.g. 24HD). D indicates built-in rectifier; not required for

15H or less, or 120VAC or greater. DC operation not available for 120V. Bi-Color not available in

AC voltages.

[5] Omit H when selecting a voltage (e.g. 31-RLP12).

[6] Select -CW or -NW lens only.

[7] Omit Lens Diffusion when selecting smoked lens (e.g. 31-NWG28H-SO).

[8] Select high intensity LEDs only.

[9] White is identified by one of four CIE coordinates x:0.29/y:0.23, x:0.29/y:0.27, x:0.32/y:0:32,

x:0.32/y:0.28.

445 S. Douglas Street, El Segundo, CA 90245-4630 • (800) 421-6815 • (310) 640-0442 • FAX (310) 640-7639

ww w.datadisplay.com
