TVA0200N03W1S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TVA0200N03W1S

TVA0200N03W1S: DescriptionFixed Attenuator, 0MHz Min, 6000MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size66KB，2 Pages; ManufacturerSmiths Group

Download Datasheet Parametric View All

TVA0200N03W1S Overview

Fixed Attenuator, 0MHz Min, 6000MHz Max,

TVA0200N03W1S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Smiths Group
Reach Compliance Code	compliant
Nominal attenuation	2 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	33.01 dBm
JESD-609 code	e0
Maximum operating frequency	6000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

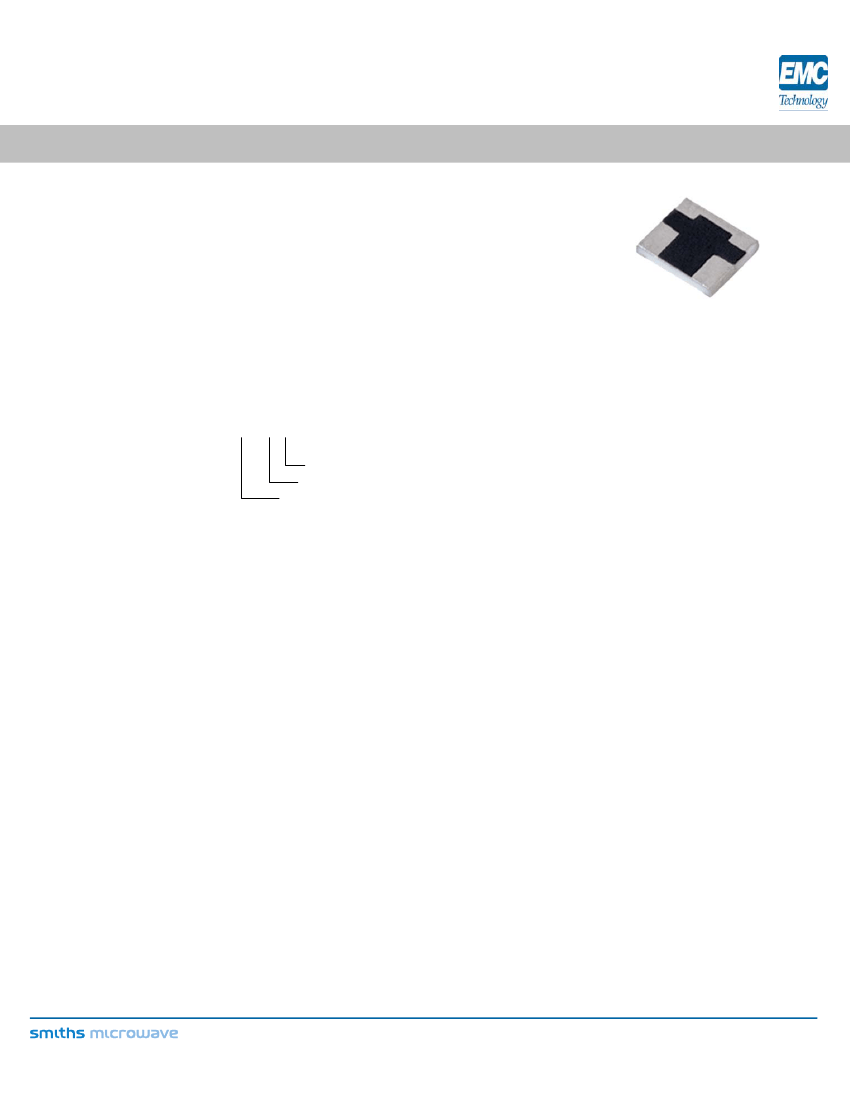

ATTENUATOR

TEMPERATURE VARIABLE

DATA SHEET

FEATURES

Temperature Variable

Compact Package

Wideband Performance

Passive Gain Compensation

Rugged Construction

MIL-PRF-3933

PART SERIES: TVAXX00XXXW1S

APPLICATIONS

Power Amplifiers

Instrumentation

Mobile Networks

Point-to-Point Radios

Satellite Communications

Military Radios

Up/Down Converters

SHEET 1 OF 2

Dwg 1008115

EN 16-0736

Revision F

GENERAL DESCRIPTION

EMC Technology is the leading authority in temperature variable attenuators. Thermopad

temperature variable attenuators have been a

highly reliable passive solution for over temperature gain compensation for more than 20 years. All Thermopad products can be qualified

for high-reliability and space applications.

ORDERING INFORMATION

Part Identifier:

TVAXX00XXXW1S

XX-Temperature Coefficient of Attenuation 1 x 10

-3

dB/dB/°C

X-Attenuation Shift Negative or Positive

XX-dB Value

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

Attenuation Values Available:

Attenuation Accuracy:

VSWR:

Input Power

50 ohms

DC-6 GHz

1-10 dB in 1 dB increments

@ 25ºC: ± 0.5 dB @ 1 GHz

1.30:1 Max @ 1 GHz

Negative Shifting: 2 watts cw.

Positive Shifting: 0.25 watts cw.

Full Rated Power to 125C, Derated Linearly to 0 watts @ 150C.

Temperature Coefficient of Attenuation: 0.003, -0.004, -0.005, -0.006, -0.007, and -0.009 dB/dB/ºC

0.003, 0.005, 0.006, and 0.007 dB/dB/ºC

Temperature Coefficient Tolerance:

± 0.001 dB/dB/ºC

2.0 ENVIRONMENTAL

Operating Temperature:

-55˚C to +150˚C

3.0 MARKING

Unit Marking:

None

4.0 QUALITY ASSURANCE

Sample Inspect Per ANSI/ASQC Z1.4 General Inspection, Level II, AQL=1.0.

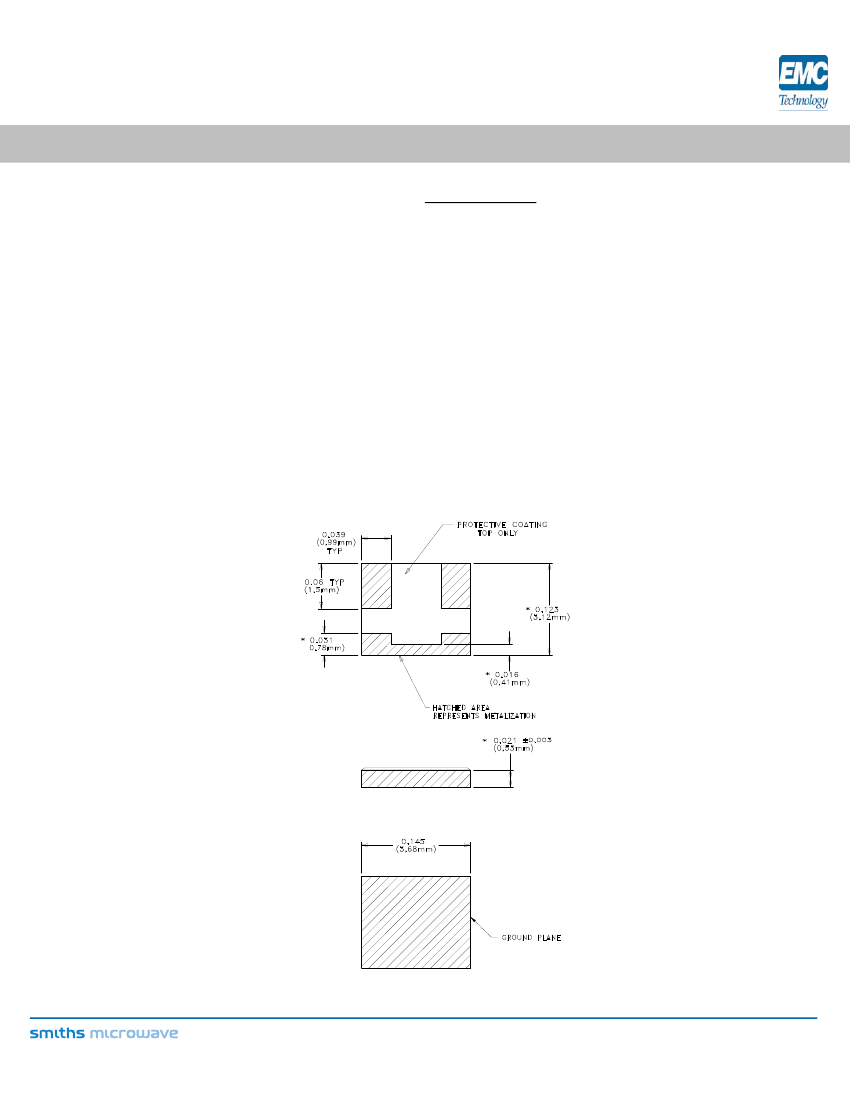

Visual and Mechanical Examination for Conformance to Outline Drawing Requirements

Sample Inspection (Destructive Testing).

Select three (3) units from lot and measure DCA every 20ºC over the temperature range of

-55°C to +125°C; Calculate using linear regression, the slope of the curve.

Form 423F119

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
