233-105-05NF21-41SN datasheet, PDF

Datasheet> All Categories > The connector> The connector> 233-105-05NF21-41SN

233-105-05NF21-41SN: DescriptionMIL Series Connector, 41 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size398KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

233-105-05NF21-41SN Overview

MIL Series Connector, 41 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,

233-105-05NF21-41SN Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	233-105-05
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	21
Termination type	CRIMP
Total number of contacts	41
Base Number Matches	1

Preview

Download Datasheet

View All

Environmental

Connectors

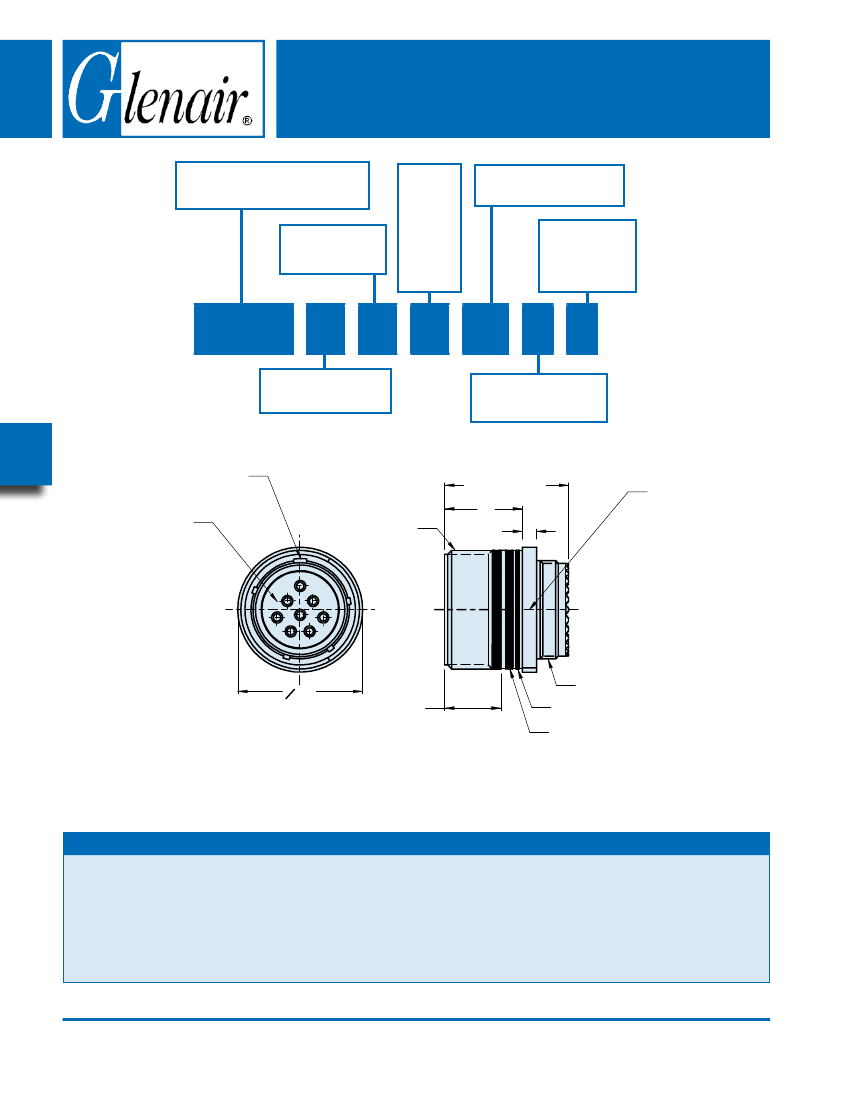

MIL-DTL-38999 Series III Type

In-Line Environmental Receptacle Connector

233-105-05

Basic Part Number

233-105

D38999 Series III Type

Power Connector

Finish Material

(See Table II)

Shell Size

Insert Arrangement

(See Opposite Page)

(N for Normal)

Alternate Key

Position

A, B, C, D, or E

233-105

Contact Type

(See Table I)

Shell Style

- In Line Receptacle

Master Keyway

See Notes 3 and 4

A Thread

1.240 (31.5)

Max

See Note 2

.520 (13.2) Max

Fully Mated

Red Indicator Band

J Thread

Yellow Color Band

Blue Color Band (See Note 5)

Consult factory for available insert arrangements.

APPLICATION NOTES

1. Material/ Finishes:

Shells - See Table II

Insulator- High Grade Rigid Dielectric/ N.A

Seals- Fluorosilicone/ N.A.

2. Assembly to be identified with Glenair’s name, part

number and date code space permitting.

3. Insert arrangement in accordance with MIL-STD-1560.

4. Insert arrangement shown is for reference only.

5. Blue Color Band indicates rear release retention system.

6. For appropriate Glenair Terminus part numbers see

Glenair Drawing 181-001 and 181-002.

7. Metric Dimensions (mm) are indicated in parentheses.

www.glenair.com

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

D-16
