TN7111 datasheet, PDF - EEWORLD Datasheet

TN7111: Description10 MHz - 100 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, SM3, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size624KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

TN7111 Overview

10 MHz - 100 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, SM3, 4 PIN

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	11 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	100 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

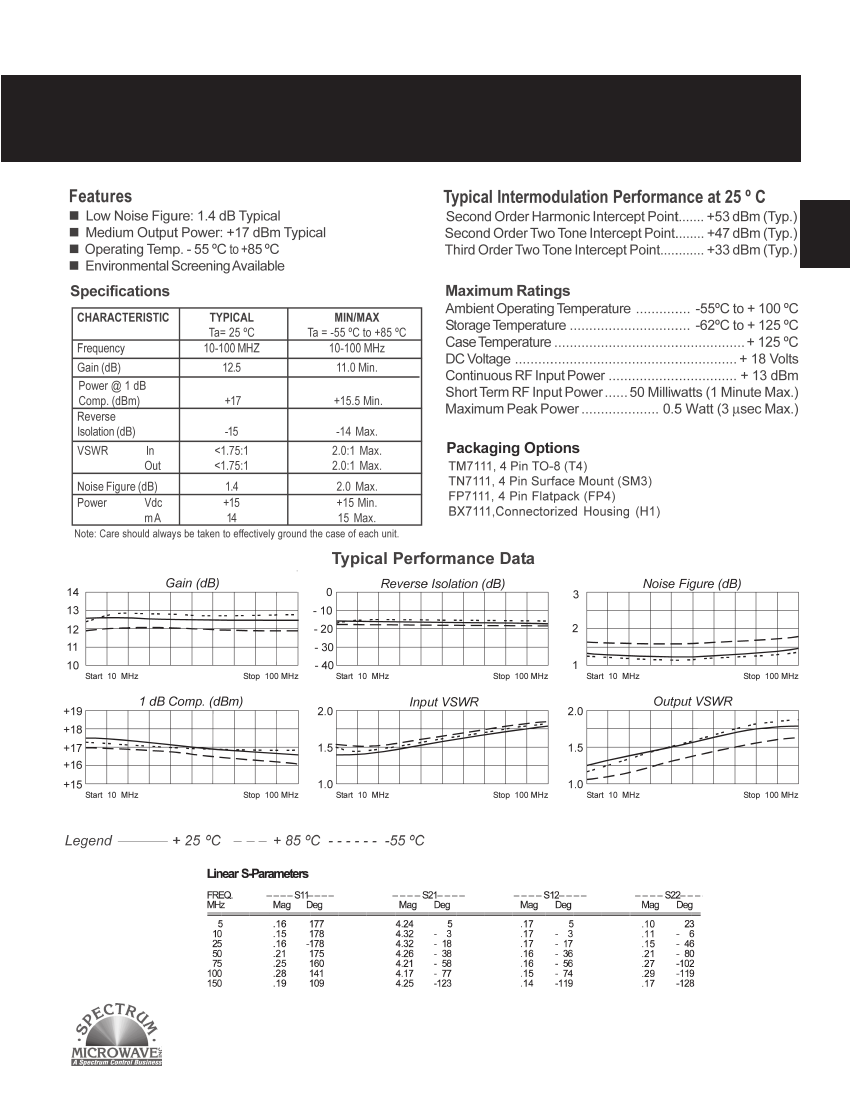

RF Amplifier

Low Noise: 1.4 dB

Model TM7111

10 to 100 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

349

Amplifiers

	TN7111	TM7111	448UB3102BAN	FP7111
Description	10 MHz - 100 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, SM3, 4 PIN	10 MHz - 100 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN	Resistor, Carbon Composition, 1000ohm, 300V, 20% +/-Tol,	10 MHz - 100 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, FP-4
Reach Compliance Code	unknown	unknown	unknown	unknown
structure	COMPONENT	COMPONENT	Non-Linear	COMPONENT
Maker	Spectrum Microwave	Spectrum Microwave	-	Spectrum Microwave
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-	I/P POWER-MAX (PEAK)=27DBM
Gain	11 dB	11 dB	-	11 dB
Maximum input power (CW)	13 dBm	13 dBm	-	13 dBm
Maximum operating frequency	100 MHz	100 MHz	-	100 MHz
Minimum operating frequency	10 MHz	10 MHz	-	10 MHz
Maximum operating temperature	85 °C	85 °C	-	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER	NARROW BAND LOW POWER	-	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2	2	-	2
