SF1603G

Description
Rectifier Diode, 1 Phase, 1 Element, 16A, 150V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 3 PIN
CategoryDiscrete semiconductor    diode
File Size105KB，3 Pages
ManufacturerSENSITRON
Websitehttp://www.sensitron.com/
Download Datasheet Parametric Compare View All

SF1603G Online Shopping

Suppliers Part Number Price MOQ In stock
SF1603G - - View Buy Now

SF1603G Overview

Rectifier Diode, 1 Phase, 1 Element, 16A, 150V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 3 PIN

SF1603G Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerSENSITRON
Parts packaging codeTO-220AC
package instructionPLASTIC, TO-220A, 3 PIN
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
applicationEFFICIENCY
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JEDEC-95 codeTO-220AC
JESD-30 codeR-PSFM-T2
JESD-609 codee0
Humidity sensitivity level1
Maximum non-repetitive peak forward current200 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current16 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage150 V
Maximum reverse recovery time0.035 µs
surface mountNO
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

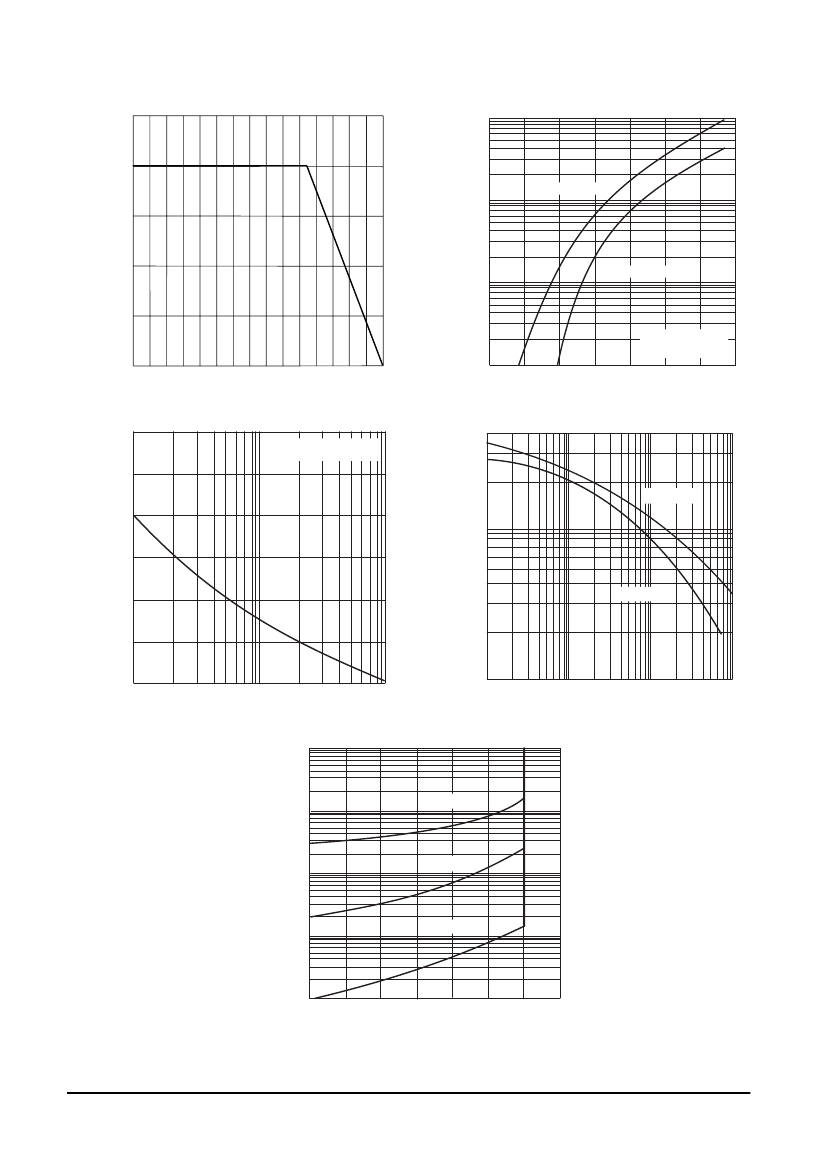

Preview

Download Datasheet









!"
!"
!"
!"
!"
!"








!    "
                                        #

 $ % &&
 '()*















!"
$"+, 7&

!"

 :9=7A@   A = @
#
D
 76= @

6=



@

6=

:9@

7=6 @
=7@

$
  6=67@    =7

@




9=:@

69=A7@










79=697@E









7=6A@E
%


6= :7@



9=:@

!"
 +$
=777@ : =79@
&
9
!"
, &+
'
=

 7@

=

9A@

$- ,

./.0$  ./1

(
7=6 @


=7@

!"
 +

&                               -

)
7 =7@
 =7@
!"
2  +.3.(&4536
*
A =7A @


 =

@

!"
$  +#
     + ,

!




8




9








&$'()($(*)+,)*%#*$(%
((*$(%)%(#-.

/



 '(01*1*2$(&
 30&'(01*2$(&
 4"5$0&2$(&
 181*2$(&
 *(&1% ##"#

 !"
 < 1*'(0(%#&"#:6
 &$($ (*#%(%$(%
 =>?4?"8%@
 (%2$(&                    ;


 '(01*"#



!"

 1(%4"5$0&2$(&

!"
 1*1*. =<@
 .($>#"(((=<

@

 (&(%(& (#1(&
!"#$%



2


2


2


2



;


;



2


;





"



)




9
 C
A9

7
6
7

6

9






6



7
6



7

:

2
2


2
B


!"

< 8(#%;

 );

 );



&#



8(#%(8+,(%($%**$(&724"








SF1603G Related Products

SF1603G SF1601G SF1606G SF1604G SF1605G SF1602G
Description Rectifier Diode, 1 Phase, 1 Element, 16A, 150V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 3 PIN Rectifier Diode, 1 Phase, 1 Element, 16A, 50V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 3 PIN Rectifier Diode, 1 Phase, 1 Element, 16A, 400V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 3 PIN Rectifier Diode, 1 Phase, 1 Element, 16A, 200V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 3 PIN Rectifier Diode, 1 Phase, 1 Element, 16A, 300V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 3 PIN Rectifier Diode, 1 Phase, 1 Element, 16A, 100V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 3 PIN
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible
Parts packaging code TO-220AC TO-220AC TO-220AC TO-220AC TO-220AC TO-220AC
package instruction PLASTIC, TO-220A, 3 PIN R-PSFM-T2 R-PSFM-T2 R-PSFM-T2 R-PSFM-T2 R-PSFM-T2
Contacts 3 3 3 3 3 3
Reach Compliance Code compliant compliant compliant compliant compliant compliant
application EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY
Shell connection CATHODE CATHODE CATHODE CATHODE CATHODE CATHODE
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
JEDEC-95 code TO-220AC TO-220AC TO-220AC TO-220AC TO-220AC TO-220AC
JESD-30 code R-PSFM-T2 R-PSFM-T2 R-PSFM-T2 R-PSFM-T2 R-PSFM-T2 R-PSFM-T2
JESD-609 code e0 e0 e0 e0 e0 e0
Humidity sensitivity level 1 1 1 1 1 1
Maximum non-repetitive peak forward current 200 A 200 A 200 A 200 A 200 A 200 A
Number of components 1 1 1 1 1 1
Phase 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
Maximum output current 16 A 16 A 16 A 16 A 16 A 16 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 150 V 50 V 400 V 200 V 300 V 100 V
Maximum reverse recovery time 0.035 µs 0.035 µs 0.035 µs 0.035 µs 0.035 µs 0.035 µs
surface mount NO NO NO NO NO NO
Terminal surface TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maker SENSITRON - SENSITRON SENSITRON SENSITRON SENSITRON
ECCN code EAR99 - EAR99 - EAR99 EAR99
