POS-ED5443A/2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> POS-ED5443A/2

Preview

POS-ED5443A/2: DescriptionVoltage Controlled Oscillator, 707MHz Min, 1133MHz Max; CategoryPassive components oscillator; File Size165KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

POS-ED5443A/2 Overview

Voltage Controlled Oscillator, 707MHz Min, 1133MHz Max

POS-ED5443A/2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Maximum control voltage	20 V
Minimum control voltage	1 V
JESD-609 code	e0
Modulation sensitivity	30 MHz/V
Installation features	THROUGH HOLE MOUNT
offset frequency	1 kHz
Maximum operating frequency	1133 MHz
Minimum operating frequency	707 MHz
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	13 dBm
phase noise	-72 dBc/Hz
physical size	20.32mm x 10.16mm x 7.874mm
Maximum slew rate	30 mA
Nominal supply voltage	8 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

Voltage Controlled Oscillator

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

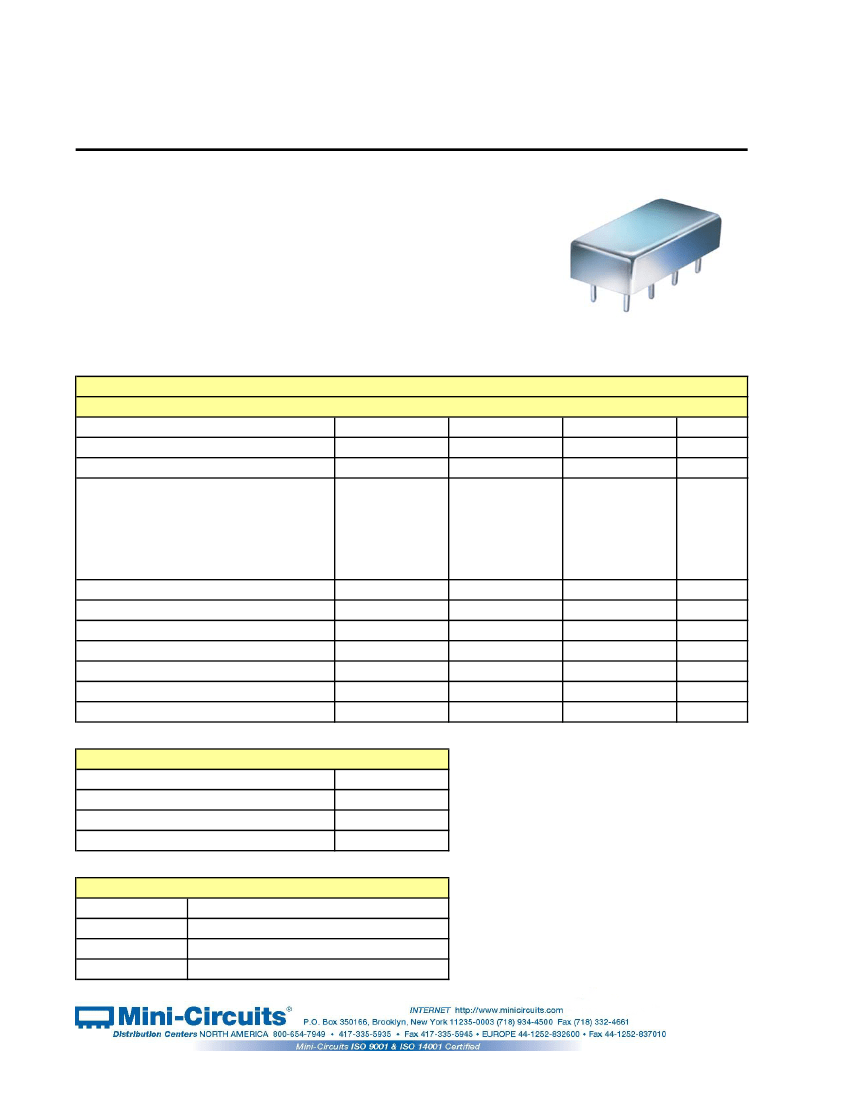

CASE STYLE : A06

POS-ED5443A/2

ELECTRICAL SPECIFICATIONS 50Ω

Parameter

Frequency

Tuning

Voltage

Power Output

Min.

707

1

Typ.

Max.

1133

20

+13

-72

-94

-114

-134

55

3

10 - 30

-9

2500

8

30

Units

MHz

V

dBm

dBc/Hz

MHz

MHz/V

dBc

kHz

V

mA

Phase Noise

at 1 kHz offset

at 10 KHz offset

at 100 KHz offset

at 1000 kHz offset

Pulling at 12 dBr PK-PK all phases

Pushing at Vcc=5V±0.25V

Tuning Sensitivity

Harmonic Suppression

3 dB Modulation Bandwidth

Supply Voltage

Supply Current

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

Absolute Supply Voltage (Vcc)

Absolute Tuning Voltage (Vtune)

-55°C to 85°C

-55°C to 100°C

+10V

+22V

RF OUT

VCC

V-TUNE

GROUND

PIN CONNECTIONS

10

14

8

3,4,5,6,7

REV. X1

POS-ED5443A/2

60522

POS-ED5443A/2 Related Products

	POS-ED5443A/2	POS-ED5443A/2+
Description	Voltage Controlled Oscillator, 707MHz Min, 1133MHz Max	Voltage Controlled Oscillator, 707MHz Min, 1133MHz Max
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown
Maximum control voltage	20 V	20 V
Minimum control voltage	1 V	1 V
JESD-609 code	e0	e3/e2
Modulation sensitivity	30 MHz/V	30 MHz/V
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
offset frequency	1 kHz	1 kHz
Maximum operating frequency	1133 MHz	1133 MHz
Minimum operating frequency	707 MHz	707 MHz
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR
Output Power	13 dBm	13 dBm
phase noise	-72 dBc/Hz	-72 dBc/Hz
physical size	20.32mm x 10.16mm x 7.874mm	20.32mm x 10.16mm x 7.874mm
Maximum slew rate	30 mA	30 mA
Nominal supply voltage	8 V	8 V
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	TIN/TIN SILVER
Base Number Matches	1	1

Recommended Resources

Precision timer circuit composed of LM567 and MP1826

Pulse LED power saving indicator light

TDA2010 power amplifier circuit diagram

Power WJR energy-saving motor soft starter

Corridor lighting automatic switch

Fully automatic nickel-cadmium battery charger circuit
