BT-N403RD: Description10.20mm(0.40) high three digit seven segments display; CategoryLED optoelectronic/LED photoelectric; File Size178KB，3 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/; Environmental Compliance

Download Datasheet Parametric View All

BT-N403RD Overview

10.20mm(0.40) high three digit seven segments display

BT-N403RD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BRIGHT
package instruction	ROHS COMPLIANT PACKAGE-12
Reach Compliance Code	unknow
Other features	HIGH RELIABILITY
color	YELLOW
Configuration	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT
Display height	10.2 mm
Maximum forward current	0.03 A
Number of functions	3
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

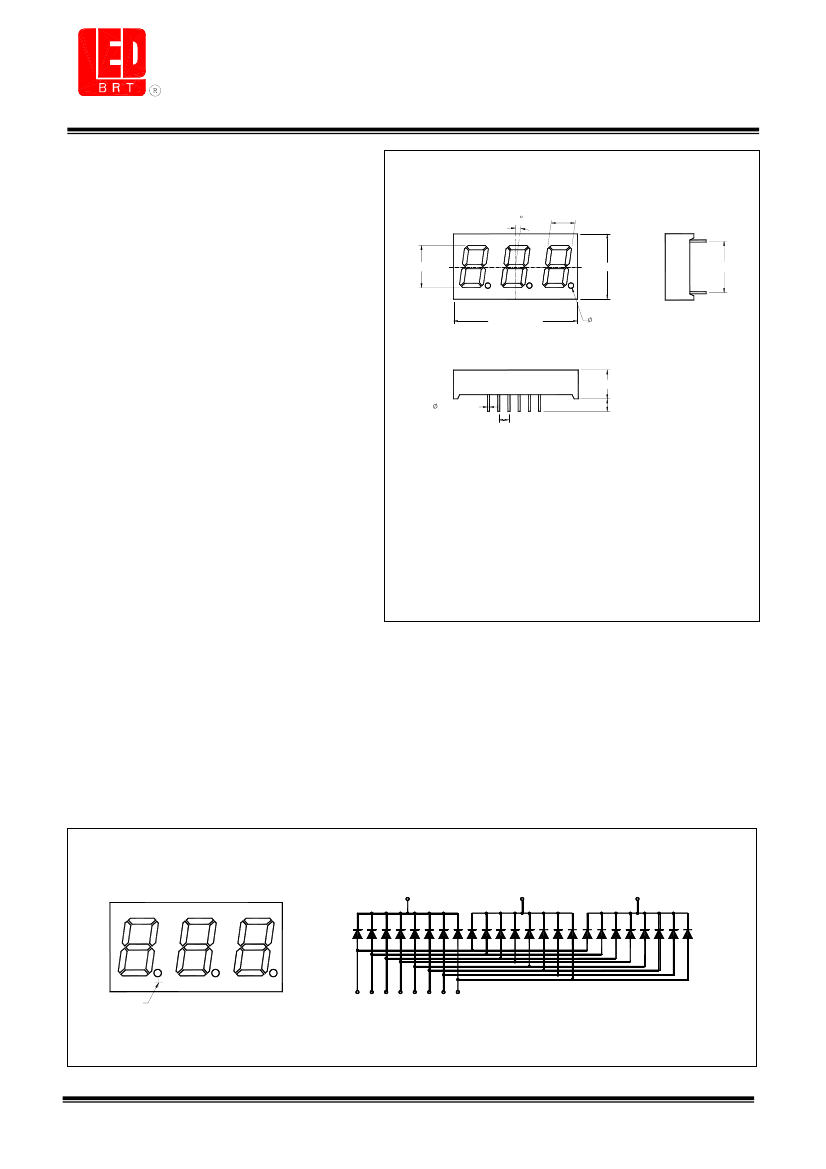

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BT-N403RD

●

Features :

0.40 inch (10.20mm) Digit Height.

Continuous uniform segments.

Low power requirement.

Excellent characters appearance.

Solid state reliability.

Categorized for luminous intensity.

Multiplex drive common cathode.

●

Package Dimensions :

5.80(.228)

10.20(.402)

15.70(.618)

12.70(.500)

30.20(1.190)

1.3(.051)

7.00(.276)

0.50(.020)

●

Description :

The BT-N403RD is a 10.2 mm (0.4")

high three digit seven segments display.

This product use yellow chips, which

are made from GaAsP on GaP substrate.

This product have a black face and

white segments.

This product doesn't contain restriction

substance, comply ROHS standard.

3.00(.118) MIN.

2.54(.100)

Notes:

1. All dimensions are in millimeters(inches).

2. Tolerance is ±0.25mm(.01")unless otherwise

specified.

3. Specifications are subject to change without

notice.

●

Internal Circuit Diagram :

½鴻工業股½有限公司

http://www.brtled.com

G DP

PIN 1.

11 7

1 10 5

NC: 6.

Ver.1.0 Page 1 of 3

1.1
