LPO4812-683KXD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LPO4812-683KXD

LPO4812-683KXD: DescriptionGeneral Purpose Inductor, 68uH, 10%, 1 Element, SMD; CategoryPassive components inductor; File Size98KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

LPO4812-683KXD Overview

General Purpose Inductor, 68uH, 10%, 1 Element, SMD

LPO4812-683KXD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	COILCRAFT
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	1.8 Ω
Nominal inductance(L)	68 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	LPO4812
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
self resonant frequency	22 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

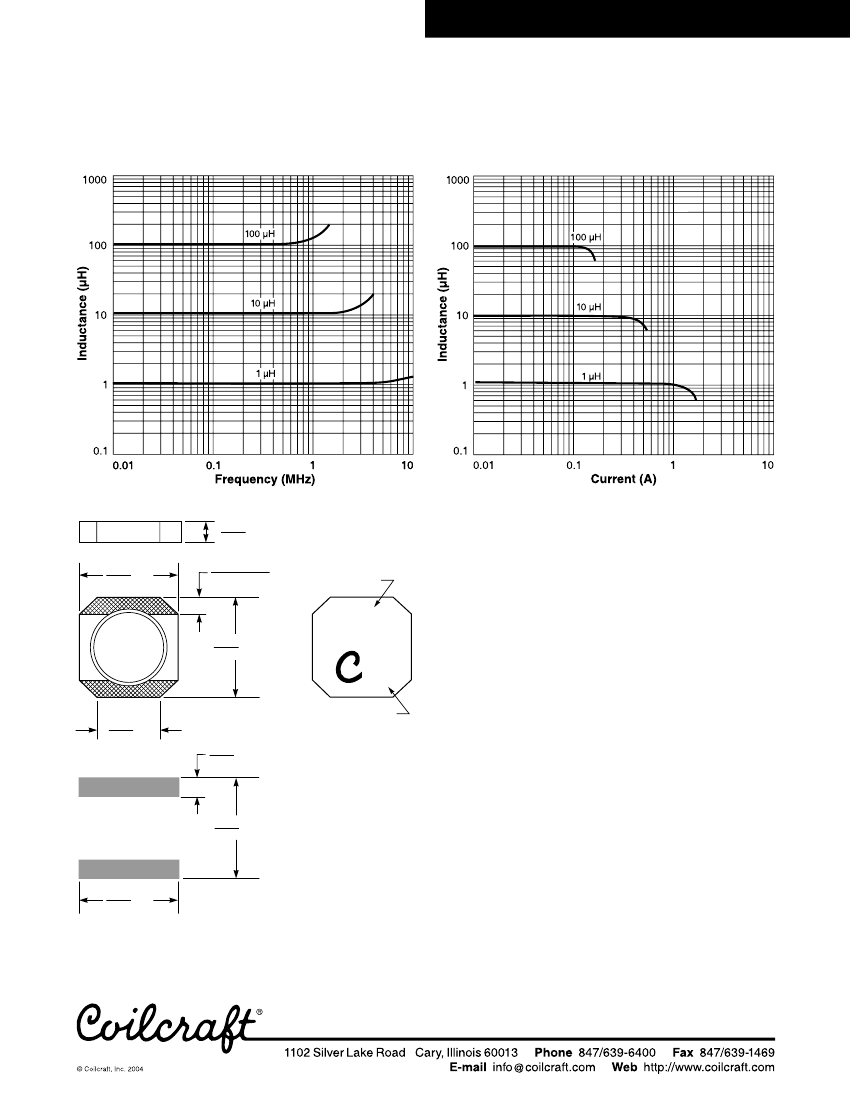

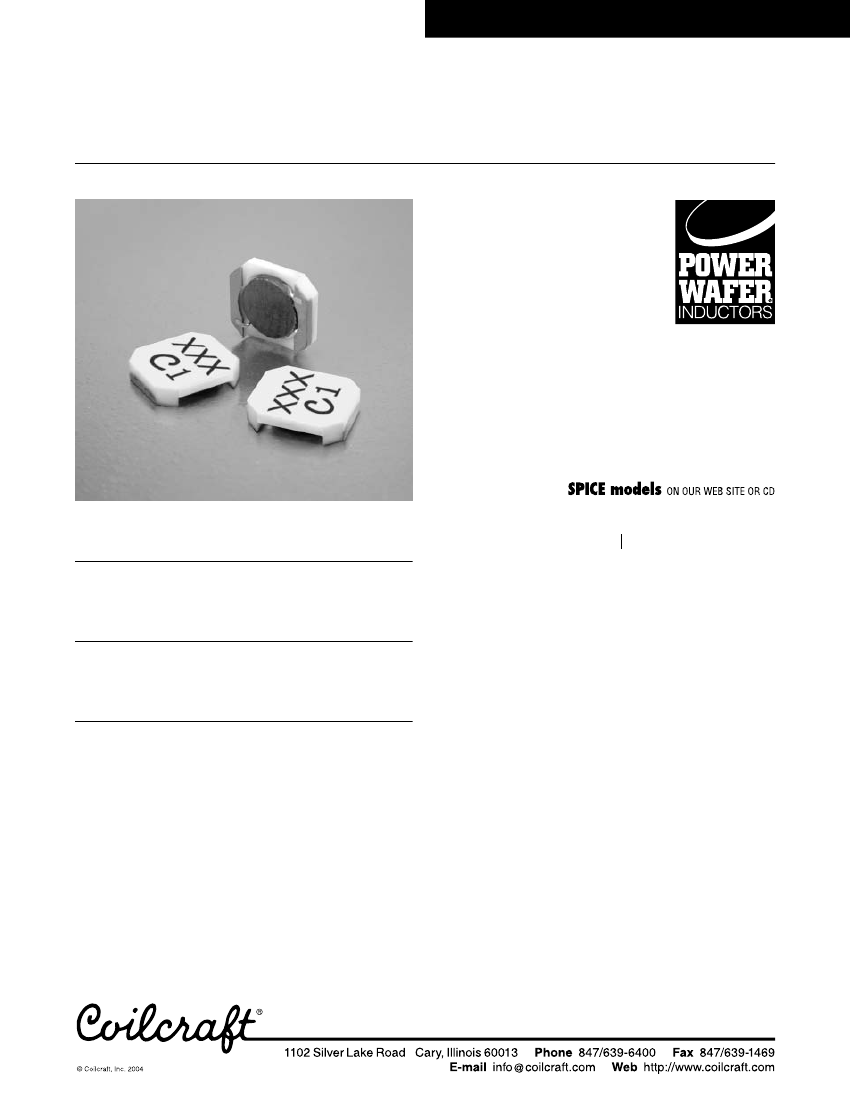

Document 276-1

SMT Power Inductors - LPO4812 Series

The LPO4812 series is designed for

applications requiring the smallest

possible size in a low profile part.

Recommended applications include

notebook computers, PC cards, cel-

lular phone handsets, and handheld

products.

The specially designed cover pro-

vides the best possible surface for pick and place

handling, as well as minimizing the pc board space

required.

Coilcraft

Designer’s Kit C157

contains samples of all

values shown. To order, contact Coilcraft or purchase

on-line at

http://order.coilcraft.com.

Part number

LPO4812-102MX_

LPO4812-152MX_

LPO4812-222MX_

LPO4812-332MX_

LPO4812-472MX_

LPO4812-682MX_

LPO4812-103KX_

LPO4812-153KX_

LPO4812-223KX_

LPO4812-333KX_

LPO4812-473KX_

LPO4812-683KX_

LPO4812-104KX_

LPO4812-154KX_

LPO4812-224KX_

DCR

SRF

max

typ

Isat

(µH)

(Ohms) (MHz) (A)

1.0 ±20% 0.055

270 1.30

1.5

0.080

220 1.00

2.2

0.090

170 0.80

3.3

0.120

140 0.70

4.7

0.155

110 0.60

6.8

0.225

90 0.45

10. ±10% 0.300

60 0.40

0.460

50 0.32

0.640

40 0.28

0.850

30 0.22

1.30

28 0.20

1.80

22 0.16

100

2.60

18 0.13

150

4.20

14 0.10

220

5.50

11 0.09

1. When ordering, please specify

packaging

code:

Irms

(A)

0.85

0.80

0.78

0.76

0.72

0.59

0.54

0.50

0.39

0.32

0.26

0.24

LPO4812-473MXC

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (1000 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (3500 parts per full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms 0 Adc.

3. DC current at which the inductance drops 10% (typ) from its value

without current.

4. Average current for a 40°C rise from 25°C ambient.

5. Operating temperature range -40°C to +85°C.

6. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

Specifications subject to change without notice.

Document 276-1

Revised 07/15/03
