D4S2UD-40ML5-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D4S2UD-40ML5-G

D4S2UD-40ML5-G: DescriptionRF Connector, Male, Panel Mount, Board Mount, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size143KB，3 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

D4S2UD-40ML5-G Overview

RF Connector, Male, Panel Mount, Board Mount, Solder Terminal, Plug, ROHS COMPLIANT

D4S2UD-40ML5-G Parametric

Parameter Name	Attribute value
Maker	Rosenberger
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	INSERTION LOSS MAX AT 1 GHZ
Body/casing type	PLUG
Characteristic impedance	100 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD (6)
Contact completed and terminated	TIN (79)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D4S2UD
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	2 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.33
Base Number Matches	1

Preview

Download Datasheet

View All

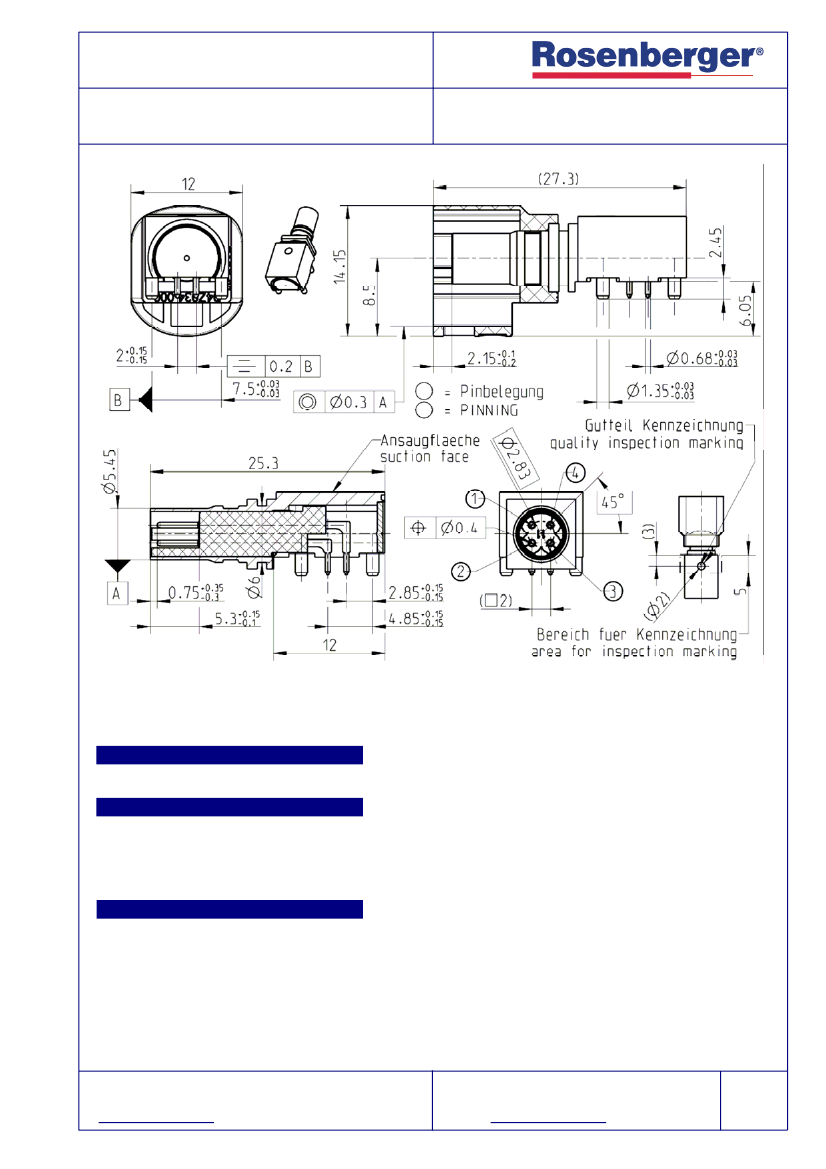

TECHNICAL DATA SHEET

HSD

RIGHT ANGLE PLUG

FOR PCB

D4S2UD-40ML5-Y

All dimensions are in mm; tolerances according to ISO 2768 m-H

EMC-screening must be assured by chassis compartment. Control box manufacturer is responsible for EMC-

screening.

Interface

According to

RN 059-01

Documents

Assembly instruction

Pinning instruction

Panel piercing

Test specification

D4V010

RN 053-01

MB_215

RN 061-01

Material and plating

Connector parts

Center contact

Outer contact

Dielectric

Housing

Cover

RF_35/12.04/3.0

Material

Spring bronze

Brass

LCP

PA 6T/66

Alpaca

Plating

Gold, 0.15 µm (Interface)

Tin, 0.5-2 µm (PCB)

Gold, 0.15 µm

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/3
