PNF-18-6R-3K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> PNF-18-6R-3K

PNF-18-6R-3K: DescriptionRing Terminal, 1.5mm2, ROHS COMPLIANT; CategoryThe connector terminals; File Size70KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PNF-18-6R-3K Overview

Ring Terminal, 1.5mm2, ROHS COMPLIANT

PNF-18-6R-3K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panduit
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	1.5 mm2
Wire gauge	18 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

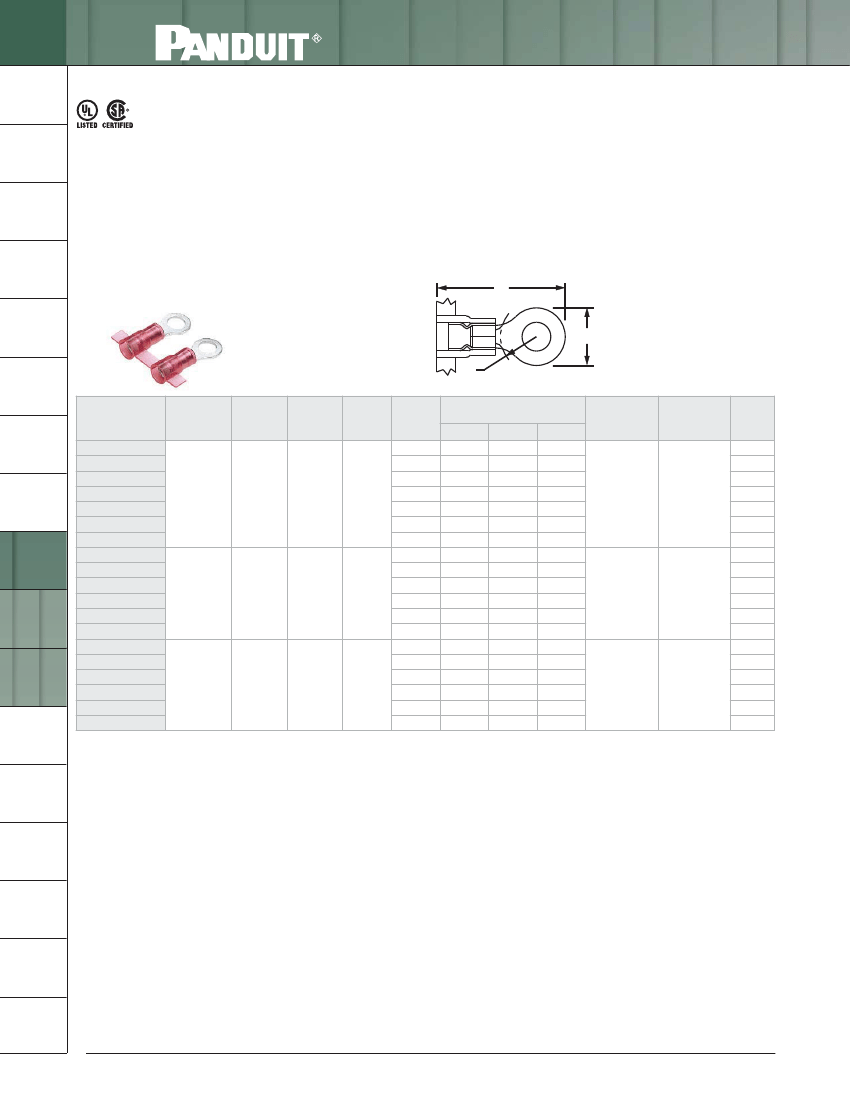

ELECTRICAL SOLUTIONS

System

Overview

Ring Terminals, Nylon Insulated

–

Funnel Entry

Type PNF-R

• Continuously molded design provides reliable, consistent

performance through the applicator for a high quality termination

every time

• Ring tongue design assures a secure connection in high

vibration applications

• Metal insulation grip sleeve crimps to wire insulation, providing

protection to the crimp joint during high vibration applications

• Internal barrel serrations assure good wire contact and maximum

tensile strength

• UL Flammability UL 94V-2/HB, maximum insulation temperature

221°F (105°C)

• UL and CSA rated up to 600 V per UL 486A/B

B1.

Cable Ties

B2.

Cable

Accessories

B3.

Stainless

Steel Ties

C1.

Wiring

Duct

Figure Dimensions

(In.)

0.74

0.78

0.74

0.78

0.86

1.06

0.78

0.87

0.85

1.06

1.21

1.29

0.22

0.25

0.22

0.25

0.31

0.46

0.25

0.31

0.46

0.38

0.52

0.58

0.19

0.21

0.16

0.21

0.25

0.38

0.18

0.24

0.25

0.29

0.40

0.31

0.38

0.43

CD9-3B

CD-800-3

CD9-2A

CD-800-2

CD9-1A

CD-800-1

C2.

Surface

Raceway

Part Number

PNF18-4RN-3K

PNF18-4R-3K

PNF18-6RN-3K

PNF18-6R-3K

PNF18-8R-3K

PNF18-10R-3K

PNF18-14R-3K

PNF14-4R-3K

PNF14-6RN-3K

PNF14-6R-3K

PNF14-8R-3K

16 – 14

AWG

Blue

0.03

0.162

22 – 18

AWG

Red

0.03

0.145

Wire

Range

Color

Code

Stock

Thickness

(In.)

Max.

Ins.

(In.)

Stud

Size

#10

1/4"

#10

1/4"

12 – 10

AWG

#10

Yellow

0.04

0.225

1/4"

5/16"

3/8"

C3.

Abrasion

Protection

CA9

Series

Crimp Die

CA-800/EZ

Series

Crimp Die

Pieces

Per

Reel

3000

2000

C4.

Cable

Management

D1.

Terminals

D2.

Power

Connectors

PNF14-10R-3K

PNF14-14R-3K

PNF10-6R-2K

PNF10-8R-2K

PNF10-10R-2K

PNF10-14R-2K

PNF10-56R-2K

PNF10-38R-2K

For applicator information, see page D1.143.

D3.

Grounding

Connectors

E1.

Labeling

Systems

E2.

Labels

E3.

Pre-Printed

& Write-On

Markers

E4.

Permanent

Identification

E5.

Lockout/

Tagout

& Safety

Solutions

Index

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in

BOLD.

PNF-18-6R-3K Related Products

	PNF-18-6R-3K	PNF10-8R-2K	PNF10-6R-2K	PNF10-56R-2K	PNF-18-14R-3K	PNF-18-10R-3K	PNF-18-8R-3K	PNF-18-6RN-3K	PNF-18-4R-3K	PNF-18-4RN-3K
Description	Ring Terminal, 1.5mm2, ROHS COMPLIANT	term ring ins 12-10awg	term ring ins 12-10awg	term ring ins 12-10awg	Ring Terminal, 1.5mm2, ROHS COMPLIANT	Ring Terminal, 1.5mm2, ROHS COMPLIANT	Ring Terminal, 1.5mm2, ROHS COMPLIANT	Ring Terminal, 1.5mm2, ROHS COMPLIANT	Ring Terminal, 1.5mm2, ROHS COMPLIANT	Ring Terminal, 1.5mm2, ROHS COMPLIANT
Reach Compliance Code	compliant	compli	compli	compli	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Terminal and terminal strip types	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL
Wire gauge	18 AWG	10 AWG	10 AWG	10 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	conform to	-	conform to	-	-
Maker	Panduit	-	Panduit	Panduit	-	Panduit	Panduit	Panduit	Panduit	Panduit
package instruction	ROHS COMPLIANT	-	-	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Conductor cross section	1.5 mm2	-	-	-	1.5 mm2	1.5 mm2	1.5 mm2	1.5 mm2	1.5 mm2	1.5 mm2
Manufacturer's serial number	-	-	-	-	PNF-R	PNF-R	PNF-R	PNF-R	PNF-R	PNF-R
