A-1019: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.31A (COIL), 28VDC (COIL), 300A (CONTACT), 28VDC (CONTACT), PANEL MOUNT; CategoryMechanical and electronic products relay; File Size48KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

A-1019 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.31A (COIL), 28VDC (COIL), 300A (CONTACT), 28VDC (CONTACT), PANEL MOUNT

A-1019 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
body width	71.37 mm
body height	81.28 mm
Body length or diameter	214.38 mm
Maximum coil current (DC)	0.31 A
Coil operating voltage (DC)	18 V
Coil release voltage (DC)	1 V
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Maximum contact current (DC)	300 A
Contact (DC) maximum rated R load	300A@28VDC
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	DC
Electrical life	50000 Cycle(s)
Manufacturer's serial number	A-1019
Installation features	PANEL MOUNT
Maximum operating temperature	71 °C
Minimum operating temperature	-55 °C
physical size	214.38mm X 71.37mm X 81.28mm
Guideline	MIL-R-6106
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
seal	GASKET SEALED
surface mount	NO
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

HARTMAN Aerospace Power Products

DC Relays

Features:

• 2PDT Center Off Main Contacts

• Mechanically Interlocked

• 28 VDC

• 300 Amps

• High Reliability

• Meets many requirements of MIL-R-6106

A-1019 2PDT, Center Off,

300 Amps, 28 VDC

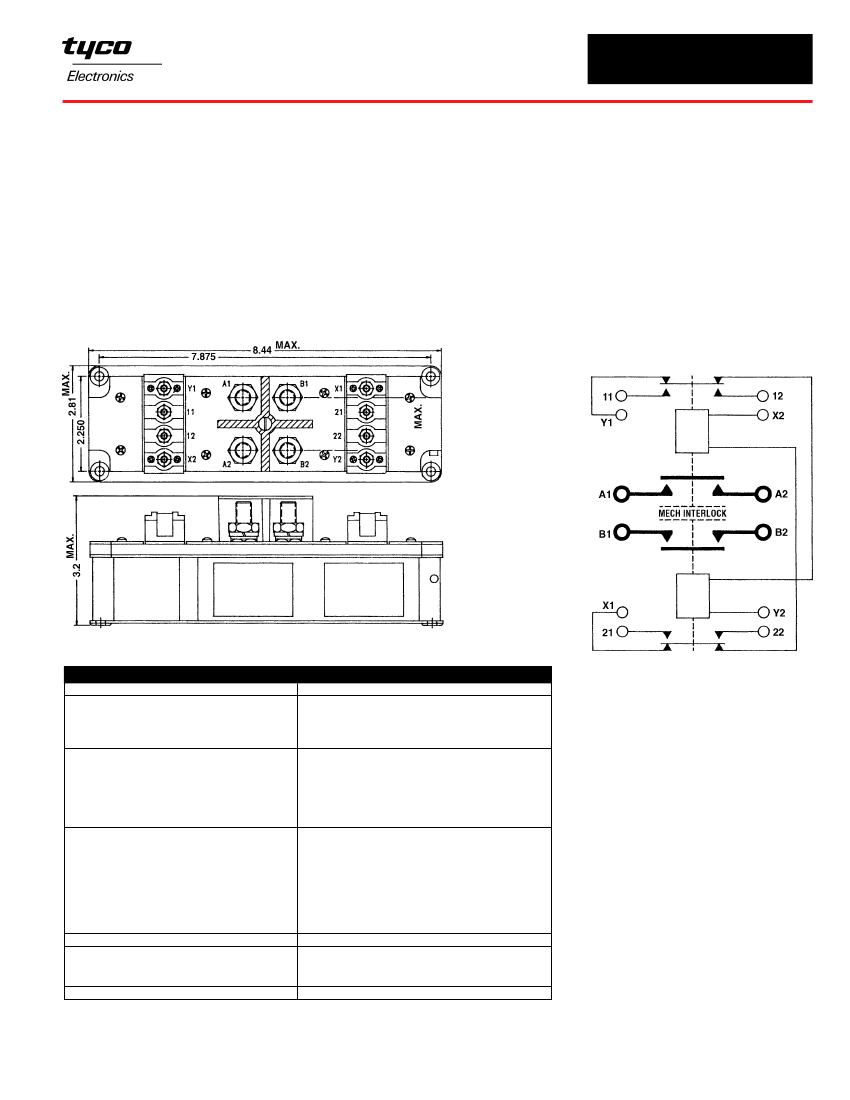

CONTACTOR CONFIGURATION

Dimensions for this product are expressed in inches.

Multiply values by 25.4 for millimeters.

PRODUCT SPECIFICATIONS

Construction

Main Contacts:

Configuration

Voltage (Nominal)

Current (Resistive)

Auxiliary Contacts:

Configuration

Voltage (Nominal)

Current

Resistive

Inductive

Coil Data:

Duty Cycle

Voltage (Nominal)

Pick-Up Voltage

Drop-Out Voltage

Coil Current @ 28 VDC & +25°C

In-Rush

Hold

Operating Temperature

Life:

Electrical

Mechanical

Weight Maximum

Gasket Sealed, Vented

* 2PST Center Off Interlocked

28 VDC

300 Amps

* 2PST Center Off Interlocked

28 VDC

5 Amps

3 Amps

Continuous

28 VDC

18 VDC Maximum

1 - 7 VDC

0.31 Amps

-55°C to +71°C

50,000 Cycles

10,000 Cycles

4 Lbs.

Notes:

For factory-direct application assistance, contact the HARTMAN

product team at (419) 521-9500, Fax (419) 526-2749.

HARTMAN and TYCO are trademarks.

Catalog (web doc only)

Revised 5-04

www.tycoelectronics.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967
