K61C771

Description
POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.4A (COIL), 12VDC (COIL), 4800mW (COIL), 10A (CONTACT), 35000VDC (CONTACT), PANEL MOUNT-THREADED
CategoryMechanical and electronic products    relay
File Size270KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

K61C771 Overview

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.4A (COIL), 12VDC (COIL), 4800mW (COIL), 10A (CONTACT), 35000VDC (CONTACT), PANEL MOUNT-THREADED

K61C771 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum coil current (DC)0.4 A
Coil operating voltage (DC)9 V
Coil power4800 mW
Coil release voltage (DC)5 V
Coil resistance30 Ω
Maximum coil voltage (DC)12 V
Coil/Input Power TypeDC
Maximum contact current (DC)10 A
Contact (DC) maximum rated R load10A@35000VDC
Maximum contact voltage (DC)35000 V
Contact/Output Power TypeDC
Manufacturer's serial numberK61C
Installation featuresPANEL MOUNT-THREADED
operating hours15 ms
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
Relay actionMOMENTARY
Relay functionSPDT
Relay typePOWER/SIGNAL RELAY
release time15 ms
surface mountNO
Termination typeWIRE
Base Number Matches1

Preview

Download Datasheet

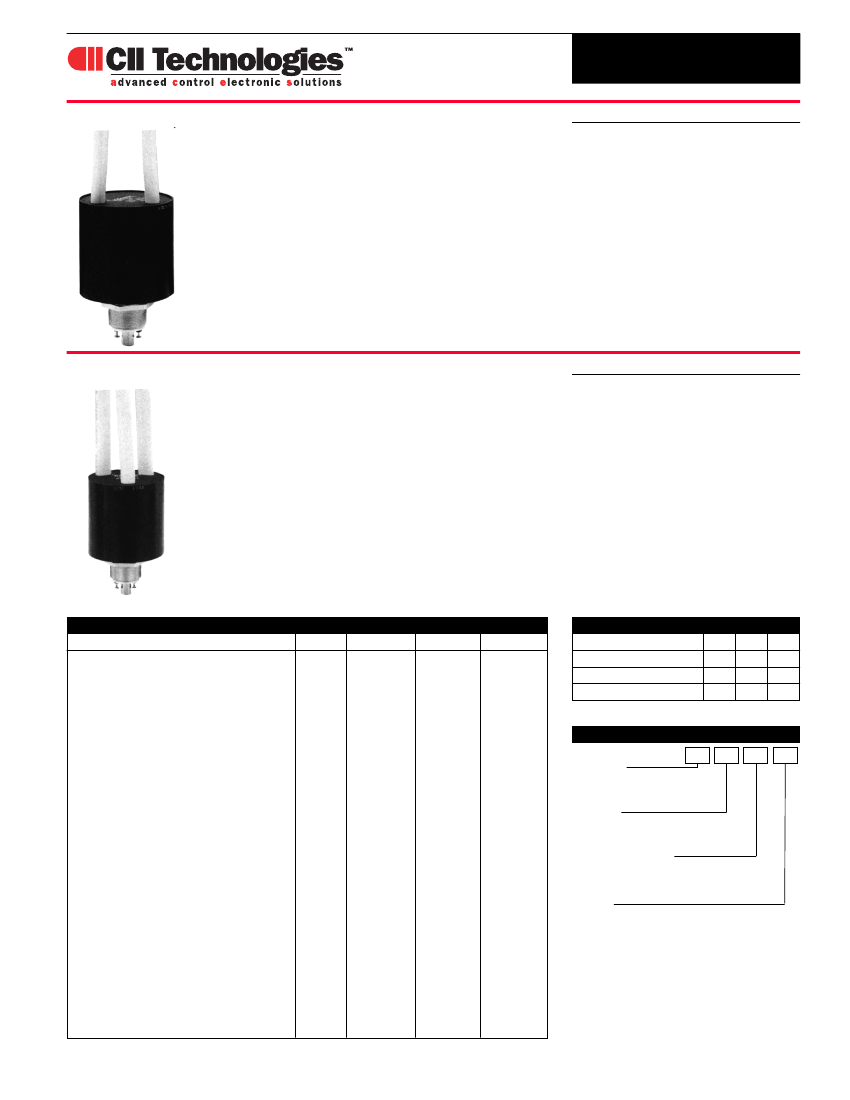

35 kV
Kilovac K61A, K61B
Make Only
Features:
• SF-6 gas-filled relay excellent for capacitive
discharge applications
• Widely used in test equipment and medical
instruments
• Fully operable in air and suitable for
adverse environments
Kilovac K61C
Make Only
Features:
• 35 kV rating in compact, durable package
• SF-6 gas-filled relay excellent for capacitive
discharge applications
• SPDT version of K61
Part Number
PRODUCT SPECIFICATIONS
Units
K61A
SPST-NO
A
COIL DATA
K61B
SPST-NC
B
40
35
-
-
-
10
-
-
-
500
-
-
1.0*
15
15
20
55-500
-55 to +85
1
12
K61C
SPDT
C
40
35
-
-
-
10
-
-
-
500
-
-
1.0*
15
15
20
55-500
-55 to +85
1
12
Nominal, Volts dc
Pickup, Volts dc, Maximum
Drop-Out, Volts dc
Coil Resistance (Ohms ±10%)
12
9
.5 - 5
30
26.5
18
1 - 10
125
115
90
5 - 50
2000
Contact Arrangement ..........................................................
Contact Form ........................................................................
Test Voltage (dc or 60Hz) ...................................................
Rated Operating Voltage .....................................................
dc or 60 Hz .....................................................................
2.5 MHz ...........................................................................
16 MHz ............................................................................
32 MHz ............................................................................
Continuous Carry Current , Maximum ...............................
dc or 60 Hz .....................................................................
2.5 MHz ...........................................................................
16 MHz ............................................................................
32 MHz ............................................................................
Coil Hi-Pot (V RMS, 60 Hz) ...........................................
Contact Capacitance ............................................................
Between Open Contacts .................................................
Open Contacts to Ground ..............................................
Contact Resistance, Maximum ...........................................
Operate Time, Maximum .....................................................
Release Time, Maximum .....................................................
Shock, 11 ms 1/2 Sine ........................................................
Vibration, 10 G’s Peak .........................................................
Operating Ambient Temperature Range ............................
Mechanical Life (Operations x 10 ) ....................................
6
kV Peak
kV Peak
40
35
-
-
-
Ratings listed are for 25°C, sea level conditions
PART NUMBER SELECTION
Sample Part Number
K61
A
Contact Form
A = SPST-NO
B = SPST-NC
C = SPDT
Coil Voltage
7 = 12 Vdc, Turret Terminal
8 = 26.5 Vdc, Turret Terminal
9 = 115 Vdc, Turret Terminal
High Voltage Connections
4 = Flying Leads, 12"
7 = Flying Leads, 72"
8 = Flying Leads, 36"
Mounting
1 = Threaded
7
4
1
Amps
10
-
-
-
500
pF
-
-
ohms
ms
ms
Peak G's
Hz
o
1.0*
15
15
20
55-500
-55 to +85
1
12
C
Cycles
oz.
Weight, Nomi-
* Contact resistance for gas-filled relays measured at 28 Vdc, 1 Amp
55
CII Technologies
/ P.O. Box 4422 / Santa Barbara, CA 93140 /
ph
805.684.4560 /
fax
805.684.9679
/
e-mail
info@kilovac.com /
website
www.ciitech.com

K61C771 Related Products

K61C771 K61C841 K61A941 K61C971 K61C981 K61A871 K61A981
Description POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.4A (COIL), 12VDC (COIL), 4800mW (COIL), 10A (CONTACT), 35000VDC (CONTACT), PANEL MOUNT-THREADED POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.212A (COIL), 26.5VDC (COIL), 5618mW (COIL), 10A (CONTACT), 35000VDC (CONTACT), PANEL MOUNT-THREADED POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.058A (COIL), 115VDC (COIL), 6670mW (COIL), 10A (CONTACT), 35000VDC (CONTACT), PANEL MOUNT-THREADED POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.058A (COIL), 115VDC (COIL), 6670mW (COIL), 10A (CONTACT), 35000VDC (CONTACT), PANEL MOUNT-THREADED POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.058A (COIL), 115VDC (COIL), 6670mW (COIL), 10A (CONTACT), 35000VDC (CONTACT), PANEL MOUNT-THREADED POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.212A (COIL), 26.5VDC (COIL), 5618mW (COIL), 10A (CONTACT), 35000VDC (CONTACT), PANEL MOUNT-THREADED POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.058A (COIL), 115VDC (COIL), 6670mW (COIL), 10A (CONTACT), 35000VDC (CONTACT), PANEL MOUNT-THREADED
Reach Compliance Code unknown compliant unknown unknown unknown unknow unknow
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Maximum coil current (DC) 0.4 A 0.212 A 0.058 A 0.058 A 0.058 A 0.212 A 0.058 A
Coil operating voltage (DC) 9 V 18 V 90 V 90 V 90 V 18 V 90 V
Coil power 4800 mW 5618 mW 6670 mW 6670 mW 6670 mW 5618 mW 6670 mW
Coil release voltage (DC) 5 V 10 V 50 V 50 V 50 V 10 V 50 V
Coil resistance 30 Ω 125 Ω 2000 Ω 2000 Ω 2000 Ω 125 Ω 2000 Ω
Maximum coil voltage (DC) 12 V 26.5 V 115 V 115 V 115 V 26.5 V 115 V
Coil/Input Power Type DC DC DC DC DC DC DC
Maximum contact current (DC) 10 A 10 A 10 A 10 A 10 A 10 A 10 A
Contact (DC) maximum rated R load 10A@35000VDC 10A@35000VDC 10A@35000VDC 10A@35000VDC 10A@35000VDC 10A@35000VDC 10A@35000VDC
Maximum contact voltage (DC) 35000 V 35000 V 35000 V 35000 V 35000 V 35000 V 35000 V
Contact/Output Power Type DC AC/DC AC/DC DC DC DC DC
Manufacturer's serial number K61C K61C841 K61A941 K61C K61C K61A K61A
Installation features PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED
operating hours 15 ms 15 ms 15 ms 15 ms 15 ms 15 ms 15 ms
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Relay action MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY
Relay function SPDT SPST SPST SPDT SPDT SPST SPST
Relay type POWER/SIGNAL RELAY POWER/SIGNAL RELAY POWER/SIGNAL RELAY POWER/SIGNAL RELAY POWER/SIGNAL RELAY POWER/SIGNAL RELAY POWER/SIGNAL RELAY
release time 15 ms 15 ms 15 ms 15 ms 15 ms 15 ms 15 ms
surface mount NO NO NO NO NO NO NO
Termination type WIRE WIRE WIRE WIRE WIRE WIRE WIRE
Maker TE Connectivity TE Connectivity - TE Connectivity TE Connectivity TE Connectivity TE Connectivity
Base Number Matches 1 1 1 1 1 - -
