AC-DC Switching Power Supply
AQF120D SERIES
KEY FEATURES

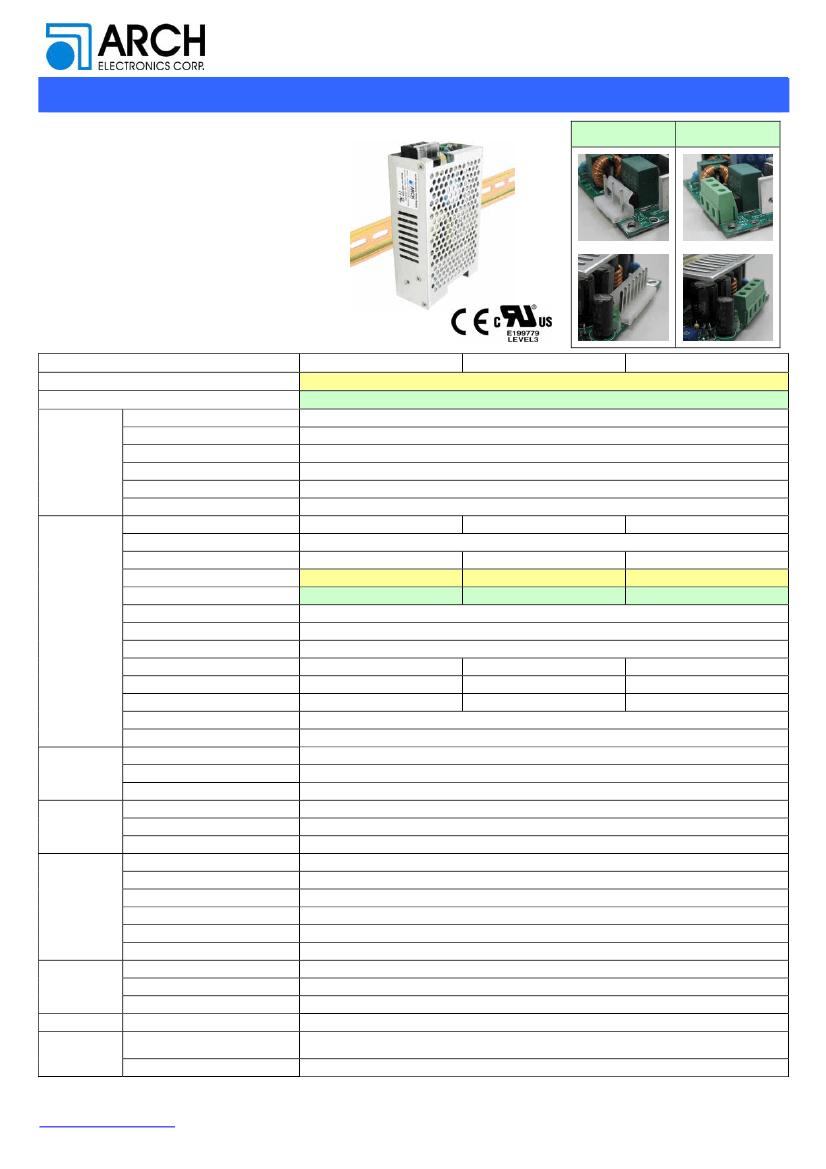

Din Rail Switching Power Supply
180 Watt with 18CFM FAN
High Efficiency up to 93%
Universal Input: 90-264 VAC
Low Ripple and Noise
With P.F.C. Function >0.95
120 Watt with Free Air Convection
Ultra Compact Size: 5.0 x 3.24 x 1.5 Inches
2-Years Product Warranty
180 Watts
A Type
B Type
ELECTRICAL SPECIFICATIONS
Model No.
Max Output Wattage
(18CFM FAN)
(W)
Max Output Wattage (W)
Voltage
Frequency (Hz)
Input
Current (Full load)
Inrush Current (<2ms)
Leakage Current
Power Factor
Voltage (V.DC.)
Voltage Accuracy
Voltage Adj. Range (V.DC)
Current (18CFM FAN) (A) max
Current (Convection) (A) max
Line Regulation
Output
Load Regulation
Minimum Load
Maximum Capacitive Load
Ripple & Noise max.
Efficiency (typ.)
Hold-up Time
Switching Frequency
Over Power Protection
Protection
Over Voltage Protection
Short Circuit Protection
Input-Output (V.AC)
Isolation
Input-FG
Output-FG
(V.AC)
.(V.AC)
AQF120D-12S
180 W
120 W
90-264 VAC or 120-370 VDC (80-274 VAC or 110-390 VDC with Derating)
47-63 Hz
<2.0 A max. (115 VAC) / <1.0 A max. (230 VAC)
< 30 A max. (115 VAC) / < 60 A max. (230 VAC)
< 0.5 mA max.
PF>0.99 (115 VAC) / PF>0.95 (230 VAC) at Full Load
12V
±2%
11.4~13.2V
0~15
0~10
±1%
±1%
0%
0-40,000µF
50 mv
90%
15 ms min.
100 kHz
Auto recovery
Auto recovery ( > 125% Vout)
Auto recovery
4000V
2000V
500V

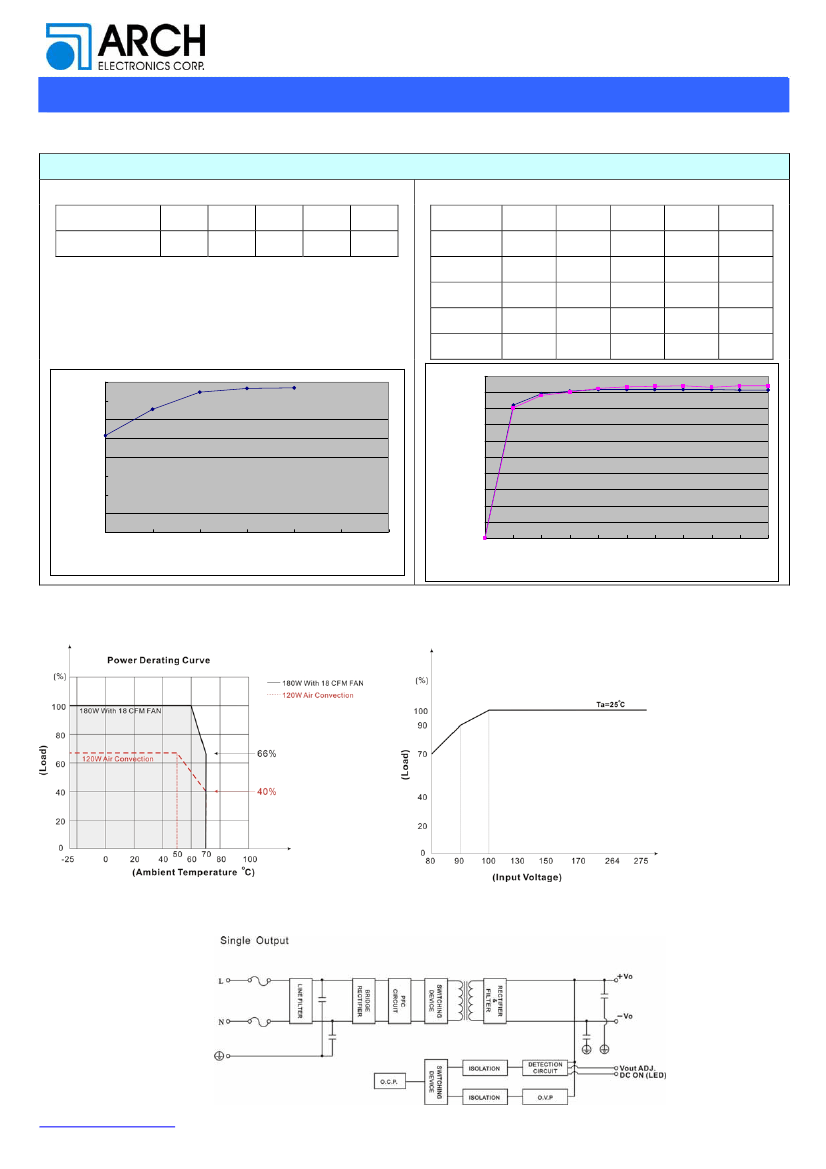

-25°C…+70°C (with derating)
-25°C…+85°C
±0.03%/°C ( 0~50°C )
95% RH
>100,000 h @ 25°C (MIL-HDBK-217F, Notice 1)
10~500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes.
5.0 x 3.24 x 1.5 Inches
405 g
Free convection
CE, UL60950
EN61000-6-3、EN 55022 class B
EN 55024
1.All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
2.Ripple & Noise are measured at 20MHz of bandwidth with 0.1UF & 4UF parallel capacitor.
AQF120D-24S
AQF120D-48S
24V
22.8~26.4V
0~7.5
0~5
48V
45.6~52V
0~3.75
0~2.5
0-20,000µF
100mV
93%
0-1,200µF
100mV
93%
Operating Temperature
Storage Temperature
Environment
Temperature Coefficient
Humidity
MTBF
Vibration
Dimension (L x W x H)
Physical
Safety
EMC
Weight
Cooling Method
Agency Approvals
EMI
(Conducted & Radiated Emission)

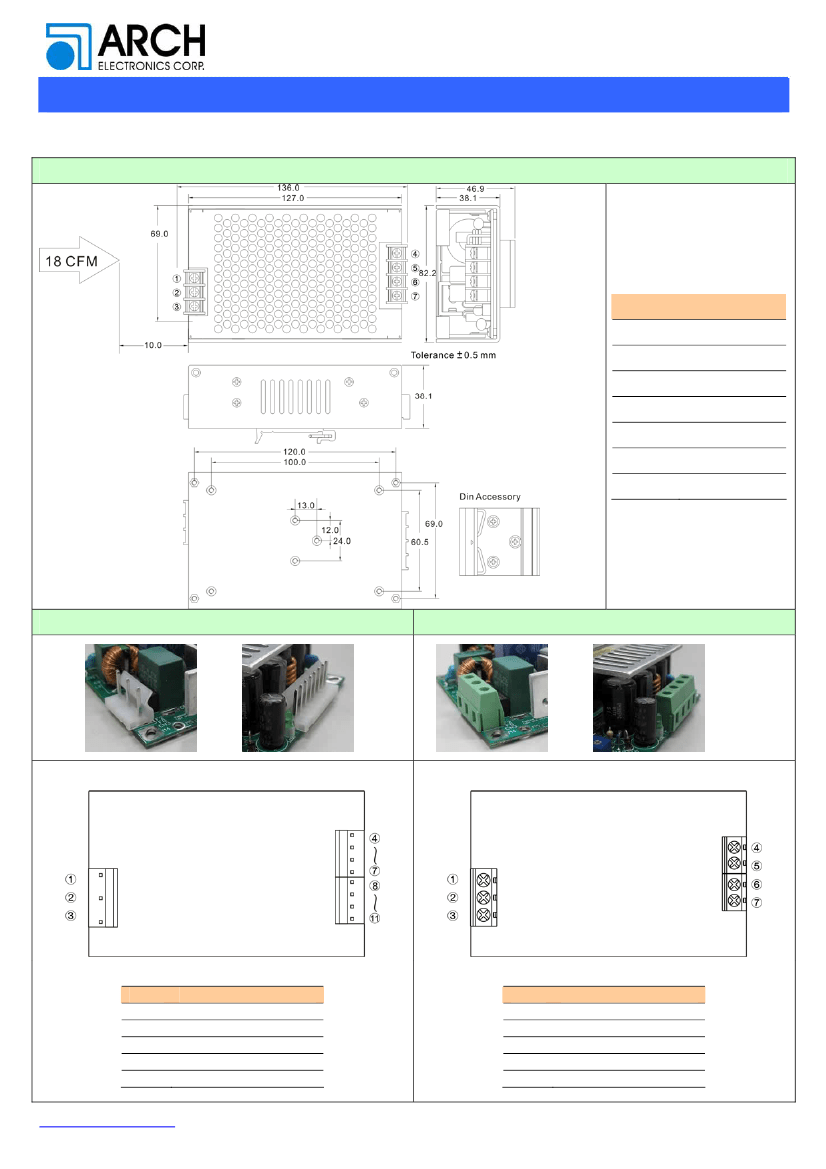

(127.0 x 82.2 x 38.1 mm ) Tolerance
±0.5
mm
EMS (Noise Immunity)
http://www.archcorp.com.tw
3.Hold-up Time measured at 90% Vout.
TEL: +886-2-26989508 FAX: +886-2-26981319
-1-
