FAN
Series
Large Film
Polypropylene
AC Rated
Voltage
75 C
Maximum
Temperature
FILM - VAC RATED
Actual
Size
FAN

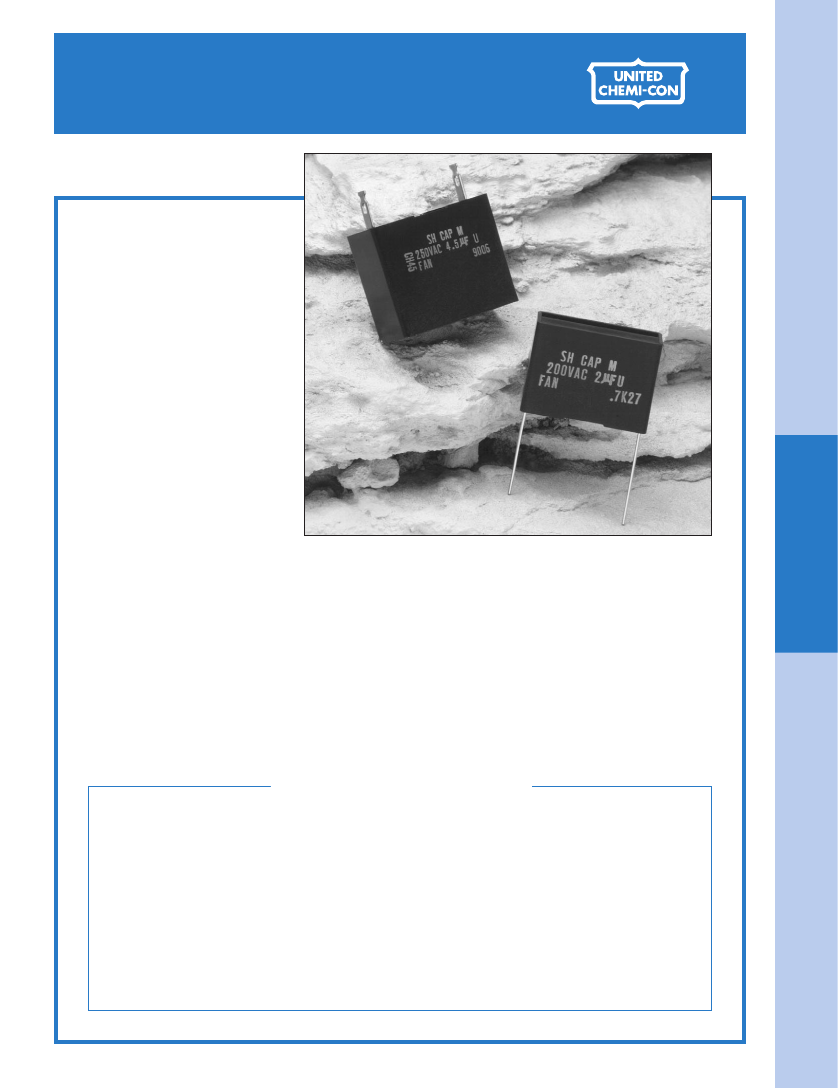

The FAN series is the standard large film capacitor series from UCC/NCC. These capacitors are
designed for use in small AC motor run, fans and ballast lighting applications. The smaller sizes and
5% to 10% tolerance of the FAN series capacitors make them ideal replacements for the standard
paper capacitors used in these applications. The variety of lead terminals, lug, fasten or wire lead,
allow for many mounting styles. All models are available with an optional mounting tab, and a metal
mounting bracket is also available for the larger size capacitors.
Summary of Specifications
Lug, radial or fasten lead terminals.
Capacitance range: 0.4 to 20µF.
Voltage range: 200 to 450VAC at 50-60Hz.
Operating temperature range: 25 C to 70 C.
Standard capacitance tolerance: 5% to 10%
Nominal case size (L W H): 28.2 11.3 21.3mm to 58.0
Rated lifetime: 500 hours at 75 C.
23.0 35.5mm.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
79
FAN Series
FAN Specifications
Item
Operating Temperature Range
Rated Voltage Range
Rated Frequency
Capacitance Range
Capacitance Tolerance
Dissipation Factor ( Tan )
Rated Lifetime
Nominal Case Size (L W H)
UL Approvals
25 to
70 C
Characteristics
200 to 450VAC maximum
50 to 60 Hz
0.4 to 20 F
5% to 10% ( U )
0.3% maximum
500 hours at
28.2 11.3
UL94-V0
75 C
21.3mm to 58.0 23.0 35.5mm
Part Numbering System for FAN Series
30
FAN
205
U
When ordering, always specify complete catalog number for FAN Series.
FILM - VAC RATED
Case Style: Blank = Standard; J = Optional Mounting Tab (if required).
Capacitance Tolerance: U = 5% to 10%
Capacitance Value: Expressed in picofarads. The first two digits are
significant figures, and the third digit indicates the number of zeros
following these figures ( e.g. 205 = 2,000,000pF = 2 F ).
Series Name and Terminal Style: FAN = Lug Terminals (Standard)
FAFN = Fasten Terminals
FALN = Lead Wire Radial Terminals
Voltage Code: 30 = 300VACrms (the last zero is dropped for part number).
FAN
Standard Voltage Ratings - Film/Lug Terminals
Rated
Voltage
( WVAC rms)
Capacitance
(µF )
Catalog
Part Number
*L
1*
Length
(mm)
W 1*
Width
(mm)
*H
1*
Height
(mm)
200 VAC rms
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
6.0
7.0
8.0
9.0
10
12
14
16
18
20
2.0
2.5
3.0
3.5
4.0
4.5
20FAN155UA
20FAN205UA
20FAN255UA
20FAN305UA
20FAN355UA
20FAN405UA
20FAN455UA
20FAN505UA
20FAN605UA
20FAN705UA
20FAN805UA
20FAN905UA
20FAN106UA
20FAN126UA
20FAN146UA
20FAN166UA
20FAN186UA
20FAN206UA
22FAN205U
22FAN255U
22FAN305U
22FAN355U
22FAN405U
22FAN455U
28.2
28.2
28.2
33.2
33.2
33.5
36.0
36.0
36.0
36.0
36.0
48.0
48.0
48.0
48.0
58.0
58.0
58.0
28.2
33.5
33.5
36.0
36.0
36.0
11.3
11.3
11.3
11.3
11.3
12.5
14.0
14.0
14.0
17.5
17.5
17.5
17.5
21.0
21.0
23.0
23.0
23.0
11.3
12.5
12.5
14.0
14.0
14.0
21.3
21.3
21.3
21.3
21.3
24.0
26.5
26.5
26.5
29.5
29.5
29.5
29.5
33.5
33.5
35.5
35.5
35.5
21.3
24.0
24.0
26.5
26.5
26.5
220 VAC rms
*
See diagram of dimensions.
80
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
FAN Series
Standard Voltage Ratings - Film/Lug Terminals
Rated
Voltage
( WVAC rms)
Capacitance
(µF )
Catalog
Part Number
*L
1*
Length
(mm)
W 1*
Width
(mm)
*H
1*
Height
(mm)
220 VAC rms
5.0
6.0
7.0
8.0
2.0
2.5
3.0
3.5
4.0
4.5
5.0
6.0
7.0
8.0
10
0.5
0.8
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
6.0
0.5
0.8
1.0
1.5
2.0
2.5
3.0
3.5
0.4
0.5
0.8
1.0
1.2
1.5
2.0
2.5
3.0
3.5
0.4
0.5
0.6
0.8
1.0
1.2
1.5
2.0
2.5
3.0
22FAN505U
22FAN605U
22FAN705U
22FAN805U
25FAN205U
25FAN255U
25FAN305U
25FAN355U
25FAN405U
25FAN455U
25FAN505U
25FAN605U
25FAN705U
25FAN805U
25FAN106U
30FAN504U
30FAN804U
30FAN105U
30FAN155U
30FAN205U
30FAN255U
30FAN305U
30FAN355U
30FAN405U
30FAN455U
30FAN505U
30FAN605U
35FAN504U
35FAN804U
35FAN105U
35FAN155U
35FAN205U
35FAN255U
35FAN305U
35FAN355U
40FAN404U
40FAN504U
40FAN804U
40FAN105U
40FAN125U
40FAN155U
40FAN205U
40FAN255U
40FAN305U
40FAN355U
45FAN404U
45FAN504U
45FAN604U
45FAN804U
45FAN105U
45FAN125U
45FAN155U
45FAN205U
45FAN255U
45FAN305U
36.0
36.0
36.0
48.0
33.5
36.0
36.0
36.0
36.0
36.0
36.0
48.0
48.0
48.0
48.0
33.5
33.5
33.5
33.5
36.0
36.0
36.0
48.0
48.0
48.0
58.0
58.0
33.5
33.5
36.0
36.0
48.0
48.0
48.0
48.0
33.5
33.5
36.0
36.0
48.0
48.0
48.0
48.0
58.0
58.0
36.0
36.0
36.0
36.0
48.0
48.0
48.0
48.0
58.0
58.0
17.5
17.5
17.5
17.5
12.5
14.0
14.0
17.5
17.5
17.5
17.5
17.5
17.5
21.0
21.0
12.5
12.5
12.5
12.5
14.0
17.5
17.5
17.5
17.5
21.0
23.0
23.0
12.5
12.5
14.0
17.5
17.5
17.5
21.0
21.0
12.5
12.5
17.5
17.5
17.5
17.5
21.0
21.0
23.0
23.0
14.0
14.0
14.0
17.5
17.5
17.5
21.0
21.0
23.0
23.0
29.5
29.5
29.5
29.5
24.0
26.5
26.5
29.5
29.5
29.5
29.5
29.5
29.5
33.5
35.5
24.0
24.0
24.0
24.0
26.5
29.5
29.5
29.5
29.5
33.5
35.5
35.5
24.0
24.0
26.5
29.5
29.5
29.5
33.5
33.5
24.0
24.0
29.5
29.5
29.5
29.5
33.5
33.5
35.5
35.5
26.5
26.5
26.5
29.5
29.5
29.5
33.5
33.5
35.5
35.5
250 VAC rms
FILM - VAC RATED
300 VAC rms
FAN
350 VAC rms
400 VAC rms
450 VAC rms
*
See diagram of dimensions.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
81
FAN Series

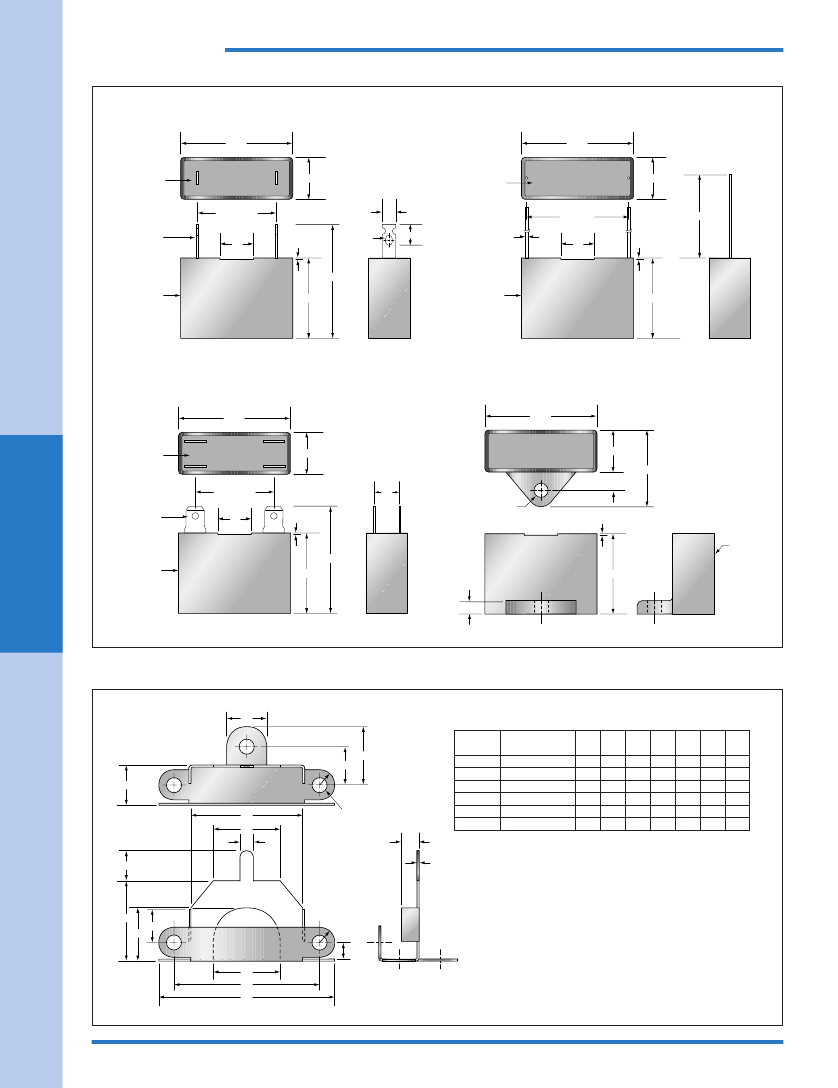

Diagram of Dimensions
FAN/Lug Terminals (Standard)
L 1
FALN/Lead Wire Radial Terminals
L 1
Unit: mm
Sealed with
flameproof
epoxy resin
(L 10) 3
Lug Terminal
0.5t
W 1
Sealed with
flameproof
epoxy resin
4
Ø
2 x 3
W 1
(L 3)
6.2
Ø
8
1
2
25
Min.
0.5
10
0.5
10
(H 10) 3
Flameproof
resin case
H 1
Flameproof
resin case
H 1
FAFN/Fasten Terminals
Optional Mounting Tab
Please add letter code “J” to the end of part number for optional mounting tab.
L 1
L 1
FILM - VAC RATED
Sealed with
flameproof
epoxy resin
(L 10) 3
AMP Terminal
#187 series
0.5t
10
W 1
W 1
(W 10.5) 1
5.5
7.5
Ø
4.2
FAN
0.5
0.5
Marking
(H 8) 2
Flameproof
resin case
H 1
H 1
4
Metal Mounting Bracket
12
Metal Mounting Bracket Dimensions
Bracket
Part No.
E 6
R
X
E
Case Size
(L W H)
33.5
36.0
36.0
48.0
48.0
58.0
12.5
14.0
17.5
17.5
21.0
23.0
24.0
26.5
29.5
29.5
33.5
35.5
A
33.4
35.8
35.8
47.5
47.4
58.0
B
12.0
13.2
16.8
16.7
19.8
18.5
C 1
43.5
48.0
48.0
58.0
58.0
66.0
D
52.5
57.0
58.0
68.0
68.0
76.0
E 1
11.5
12.0
14.0
14.0
15.5
19.0
H
23.5
26.0
29.0
29.0
33.0
35.0
R
x
4.5
4.5
5.0
5.0
5.0
5.0
B
Ø
4.5
A
20
4
9
(5 Holes)
5.5
0.6t
MFGA-Z
MFGA-A
MFGA-B
MFGA-C1
MFGA-D
MFGA-E
H
15.9
10
R
X
5
20
C
D
82
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
FAN Series Technical Data
Performance Characteristics
Capacitance – Temperature
FAN 200V, 4µF, n = 20
Capacitance Change (%)
Insulation Resistance (M )
110
Capacitance – Load Life
FAN 250V, 4µF, n = 100
Applied 315 VAC at 50 Hz, +70°C
Measured at 1,000 Hz, +20°C
105
105
100
100
95
95
90
90
30
20
10
0
10
20
30
40
50
60
70
80
0
1
2
5
10
20
30
50
Temperature ( C)
Time x 100 (Hours)
Insulation Resistance – Temperature
FAN 200V, 4µF, n = 20
Insulation Resistance (M )
10
6
Tan
(%)
0.3
0.2
(DF ) – Load Life
FAN 250V, 4µF, n = 100
Applied 315 VAC at 50 Hz, +70°C
Measured at 250 VAC
Measured after applying 100 VAC for 1 minute
10
5
0.1
10
4
0.05
Tan
FILM - VAC RATED
FAN
20
50
70
0
1
2
5
10
20
30
50
Temperature (°C)
Time x 100 (Hours)
Tan
(%)
1.0
(DF ) – Temperature
FAN 200V, 4µF, n = 20
Capacitance – Humidity Load Life
FAN 200V, 4µF, n = 50
Capacitance Change (%)
Applied 200 VAC at 50 Hz, +40°C, 90-95% RH
Measured at 1,000 Hz, +20°C
Tan
0.5
0.4
0.3
0.2
105
100
95
0.1
90
20
10
0
10
20
30
40
50
60
70
80
0
1
2
5
10
20
30
50
Temperature ( C)
Time x 100 (Hours)
Tan
(%)
1.0
(DF ) – Voltage
FAN 200V, 4µF, n = 20
at 50 Hz
Tan
(%)
0.3
0.2
(DF ) – Humidity Load Life
FAN 200V, 4µF, n = 50
Applied 200 VAC at 50 Hz, +40°C, 90-95% RH
Measured at 200 VAC
Tan
0.5
0.4
0.3
0.2
Tan
0.1
0.1
0.05
100
150
200
250
300
350
0
1
2
5
10
20
30
50
Voltage (V)
Time x 100 (Hours)
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
83
