O/E/N

37-T

ICE CUBE STYLE INDUSTRIAL RELAY

Mechanical Flag Indication

Lockable Test Button

LED & Free Wheeling Diode across coil

Compact High Performance

Din Rail Mounting Sockets available

SPECIFICATIONS

COIL DATA

HOW TO ORDER

Contact Arrangement

Contact Material

Rated Voltage

Contact Rating

: 2 Form C, 4 Form C

: Silver Alloy

2 Form C : 10A@230VAC/24VDC

4 Form C : 5A@230VAC/24VDC

Max. Switching Voltage

Contact Resistance Initial

Nominal Coil Power

Life Expectancy

Mechanical

Electrical

Dielectric Strength

Between coil and contacts

Between Open contacts

Insulation Resistance at

: 1800VAC

: 1000VAC

: 100Meg.Ohms

@ 500 VDC,25 C, RH 50

Pick-up Voltage

Nominal Voltage

: 230 VAC/24 VDC

Coil Resistance Ohms+10%

: 230 VAC / 24 VDC

: 50m Ohms

: 0.9 W (approx)

WIRING LAYOUT

DC Coils

: 10 operations

220

9.6

19.2

176

AC Coils

160

650

42000

2 Form C

3750

18790

110

240

190

* Special coils available on req.

Operate time at nom. Volt

Release time at nom. Volt

Ambient Temperature

Weight

: 20 milli sec

: -40 C to + 85 C

: 35 g

Typical Applications

4 Form C

DIMENSIONS

Industrial Controls, Office Automation, PLCs, Timers

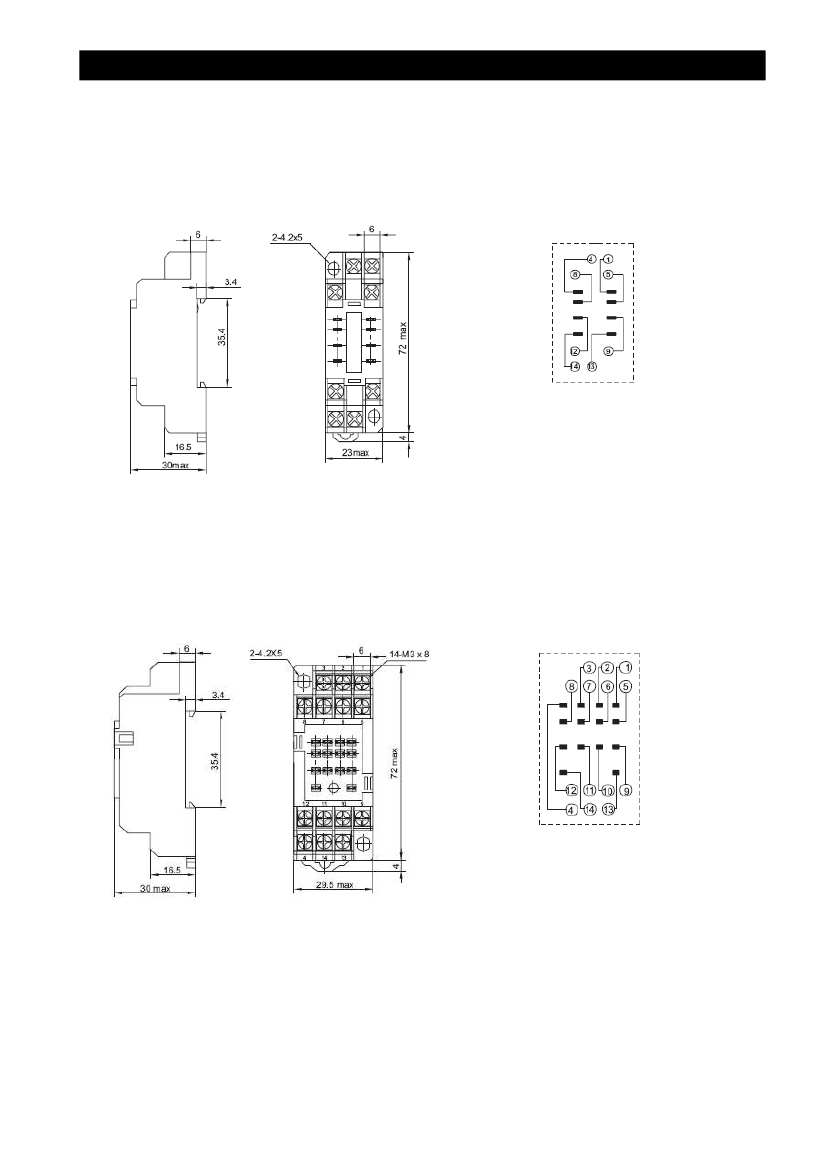

SOCKET ORDERING CODE

2 Form C

4 Form C

37-9900-200

37-9700-100

All dimensions are in mm. Specifications subject to change

without notice.

O/E/N India Ltd

P.B. No. 1952, Vyttila, Cochin - 682 019. Kerala, India. Ph: 0091(0)484 2301132, 2303709 Fax:

0091(0)484-2302287, 2302211.www.oenindia.com. E-Mail: sales@oenindia.com
