MMT-109-02-S-SV: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size517KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MMT-109-02-S-SV Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT

MMT-109-02-S-SV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
body width	0.079 inch
subject depth	0.118 inch
body length	0.711 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	MMT-SV
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	3.3274 mm
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

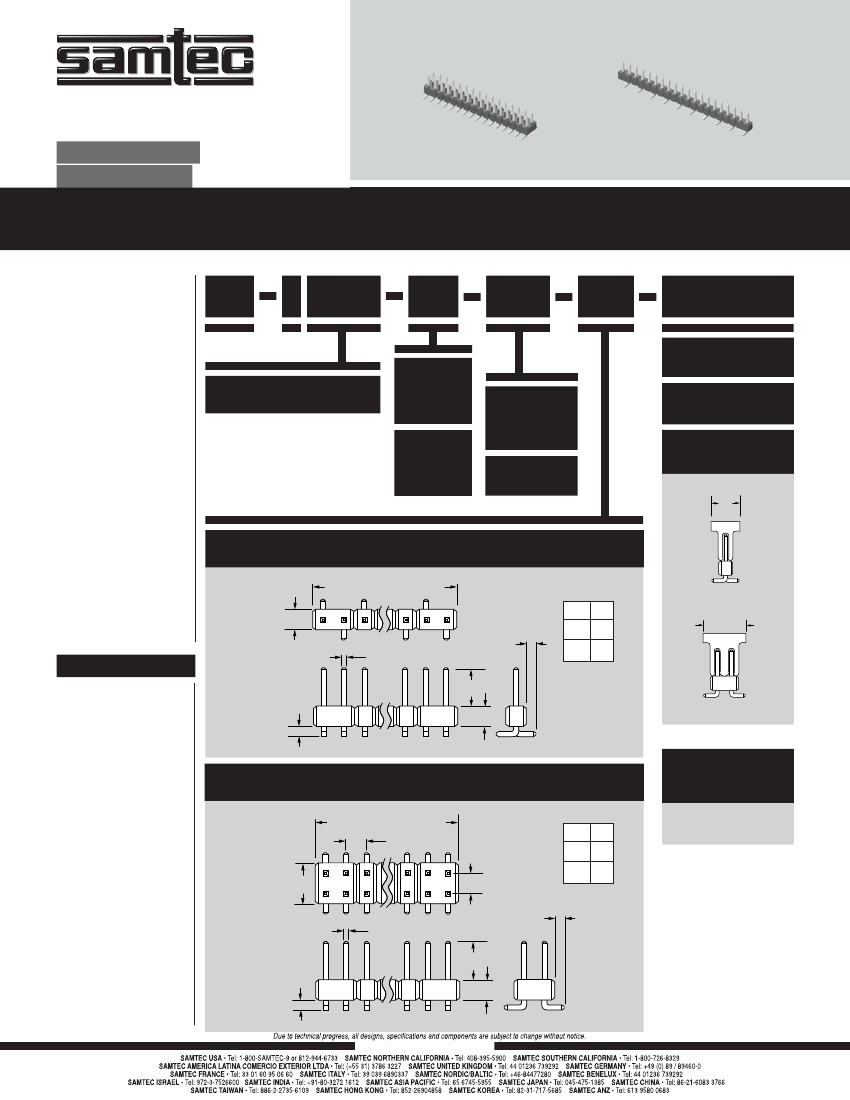

F-213 SUPPLEMENT

MMT–120–01–S–SV

(2,00 mm) .0787"

MMT-XV SERIES

MMT–116–01–S–DV

SMT TERMINAL STRIPS

Mates with:

SSM, MMS, TCSD

MMT

1

Features:

• Single or double row

• Vertical or horizontal

pin orientation. (See

Full Line Catalog

for horizontal

speciﬁcations.)

• Alignment pins

• Locking clips

• Pick & Place Pads

• Polarization option

• Molded with high

temperature Liquid

Crystal Polymer for

infrared or vapor phase

reﬂow soldering.

• Mates with Samtec

surface mount sockets,

or with other Samtec

high temperature

through-hole sockets

for mixed technology

applications.

(2,00)

.079

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

–XX

–01

02 thru 36

= (3,20 mm)

.126"

post

= Polarized position

–S

= 30µ" (0,76 µm)

Gold on post,

Matte Tin on tail

–TR

= Tape & Reel Pkg

–02

= (1,91 mm)

.075"

post

–P

=Removable Pick

& Place Pad

(10,16)

.400

X

(5,08)

.200

–T

= Matte Tin

–SV

=Single Row Vertical Pin

(2,00) .079 X No. of positions

36

LEAD

STYLE

–SV

C

(3,20)

.126

(1,91)

.075

(10,16) (6,35)

.400 X .250

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?MMT

Insulator Material:

Black Liquid Crystal Polymer

Flammability Rating:

UL 94V-O

Insulation Resistance:

5000 MΩ min

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

Dielectric Withstanding

Voltage:

600 VAC

Terminal Material:

Phosphor Bronze

Plating:

Au, PdNi or Sn over

50µ" (1,27 µm) Ni

RoHS Compliant:

Yes

(1,00)

.039

(0,51)

.020 SQ

01

(1,50)

.060

TYP

–01

–02

C

(2,00)

.079

–DV

=Double Row Vertical Pin

(2,00) .079 X No. of positions

02

(2,00)

.079

36

LEAD

STYLE

APPLICATION

SPECIFIC

OPTIONS

C

(3,20)

.126

(1,91)

.075

Alignment pins &

locking clips available.

Call Samtec.

–01

(2,00)

.079

(1,50)

.060

TYP

(4,00)

.158

–02

Processing:

Lead–Free Solderable:

Yes, with Matte Sn plating

Lead Coplanarity:

.006" (0,15 mm) max

(1,00)

.039

01

(0,51)

.020 SQ

35

C

(2,00)

.079

Note:

Some lengths, styles and

options are non-standard,

non-returnable.
