MWDM2L-15GS-4K1-18F datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> MWDM2L-15GS-4K1-18F

MWDM2L-15GS-4K1-18F: DescriptionCable Assembly, 24AWG,; CategoryThe connector Connector bracket; File Size236KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MWDM2L-15GS-4K1-18F Overview

Cable Assembly, 24AWG,

MWDM2L-15GS-4K1-18F Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	not_compliant
ConnectorSide1	MICRO-D
ConnectorSide2	MICRO-D
Connector bracket type	WIRE AND CABLE
structure	SOLID
DIN compliance	NO
IEC compliance	NO
length	5.486 mm
MIL compliance	NO
Number of conductors	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Rated current	3 A
shield	NO
Wire gauge	24 AWG
Wire and Cable Names	CABLE ASSEMBLY
Base Number Matches	1

Preview

Download Datasheet

View All

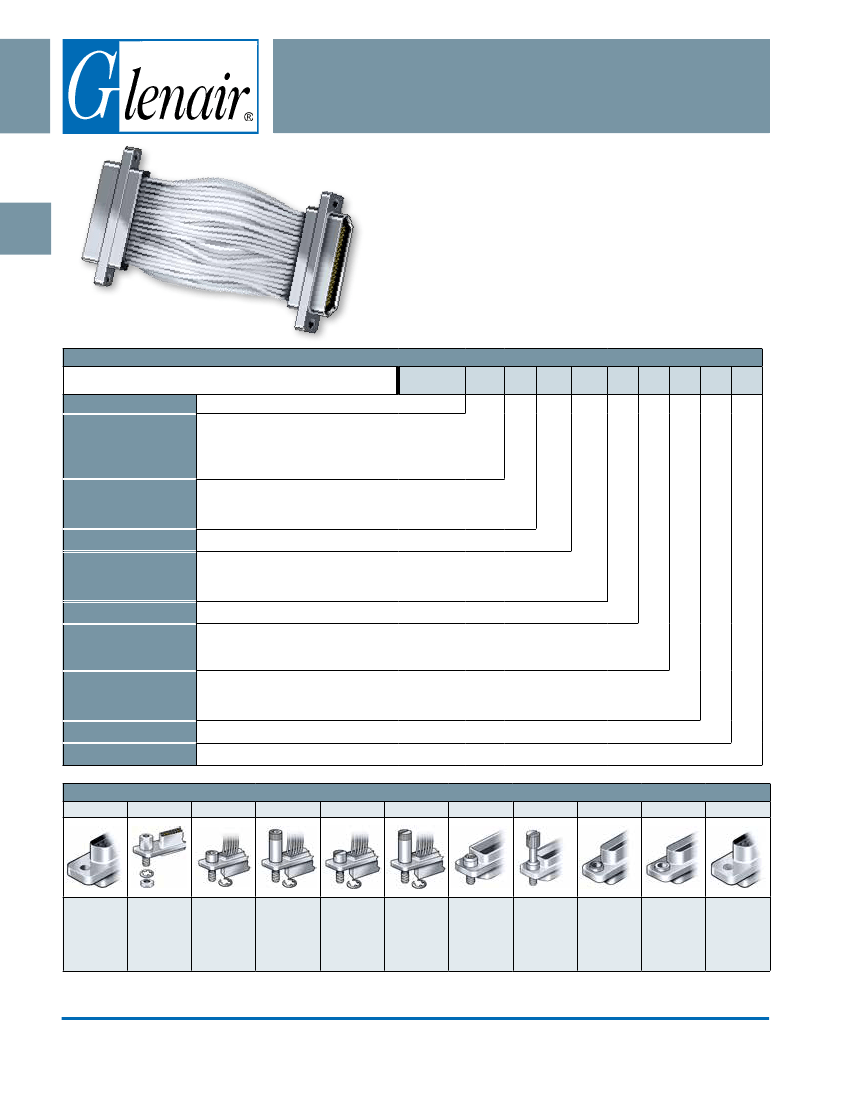

INDEX

Thru-Hole

Jackpost

Micro-D Harness

Sample Part Number

Series

Shell Material

and Finish

MWDM

Glenair Micro-D

Aluminum Shell

- Cadmium

- Nickel

- Black Anodize

- Gold

- Chem Film

Insulator Material

Contact Layout

Connector Type

Wire Gage (AWG)

Wire Type

- LCP or PPS

LCP - 30% Glass-Filled Liquid Crystal Polymer

PPS - 40% Glass Filled Polyphenylene Sulfide

- #24

- #26

- #28

– M22759/11

600 VRMS Teflon® (TFE)

Wire Color

Wire Length Inches

Hardware

B, P, M, M1, S, S1, L, k, F, R, H

Micro-D MWDM

Back-To-Back Metal Shell

Unshielded Cable Assembly

Save Time and Money With Back-To-Back Cables–

these Micro-D

connectors feature crimp wire terminations and epoxy encapsulation.

The installed cost is lower than terminating solder cup connectors.

100% Certified–

All back-to-back assemblies are 100% checked for

continuity, resistance, voltage and insulation resistance.

Hardware Note–

If jackposts are required on one end and jackscrews

on the other, use hardware designator “B” (no Hardware installed), and

order hardware kits separately.

How To Order Back-to-Back Cable Assembly

MWDM

Stainless Steel Shell

- Passivated

L-

GS-

9, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 75, 100, 130

– Pin (Plug) Connector Both Ends

– Socket (Receptacle) Connector Both Ends

– Pin Connector to Socket Connector

- #30 (J wire type only)

– M22759/33

600 VRMS Modified Cross-

Linked Tefzel® (ETFE)

– NEMA HP3-EB

600 VRMS Type E M16878/4 (TFE)

– White

– Yellow

– Color-Coded Stripes Per MIL-STD-681 (up to 51 colors)

– Ten Color Repeating

- Wire Length In Inches. “18” Specifies 18 Inches. (2” Min. for 2 row, 3” Min. for 3 row, 4” Min. for 4 row)

Table I: Mounting Hardware

Hex Head

Jackscrew

Hex Head

Jackscrew,

Extended

Slot Head

Jackscrew

Slot Head

Jackscrew,

Extended

Hex Head Slot Head

Float Mount Float Mount

Jackscrew Jackscrew

For Front

For Rear

Non-

Panel

Removable Removable

Mounting

Extended

Threaded

Insert

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-12

E-Mail: sales@glenair.com
