PLB08F4200A1: DescriptionRectangular Power Connector, 8 Contact(s), Female, Solder Terminal, Plug; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric View All

PLB08F4200A1 Overview

Rectangular Power Connector, 8 Contact(s), Female, Solder Terminal, Plug

PLB08F4200A1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Positronic Industries
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Board mount options	SPLIT BOARD LOCK
body width	0.606 inch
subject depth	0.895 inch
body length	1.324 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER/BRASS
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	1000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
Plating thickness	10u inch
polarization key	RIGHT
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYESTER
Terminal length	0.377 inch
Terminal pitch	5.0038 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	2.224 N
Base Number Matches	1

Preview

Download Datasheet

View All

Positronic Industries, Inc.

www.connectpositronic.com

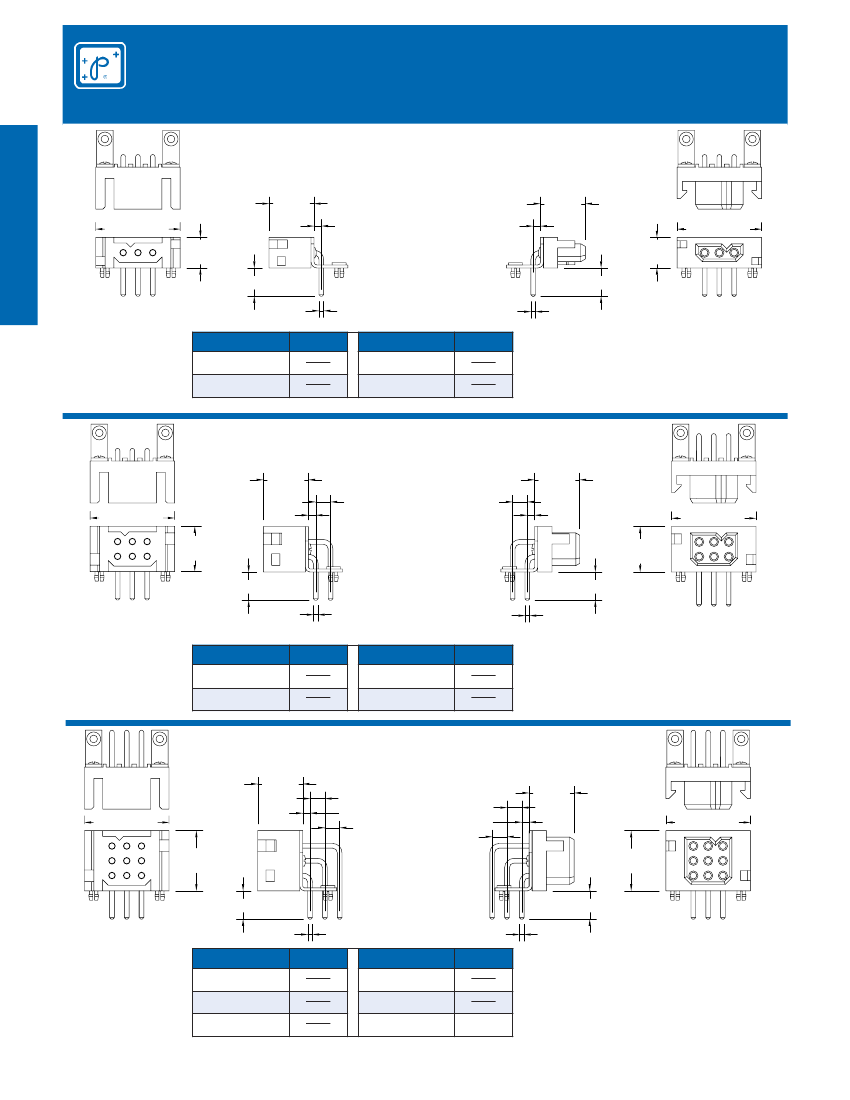

90° SOLDER PRINTED

BOARD CONNECTORS

PLA 90° PRINTED BOARD MOUNT CONNECTORS

CODE 42, 0.377 [9.58] CONTACT EXTENSION

P

ower

C

onnection

S

ystems

MALE

0.600

[15.24]

A±0.020 [0.51]

0.408

[10.36]

0.377 [9.58]

0.098 [2.49]

0.600

[15.24]

FEMALE

PCS SERIES

17

A±0.020 [0.51]

0.408

[10.36]

0.377 [9.58]

Typical part number:

PLA03M42BN0A1

PLAH03M42BN0A1

*Asterisk determines

gender of connector,

M for male,

F for female.

ø0.062 [1.57]

PART NUMBER

PLA03*4200A1

PLAH03*4200A1

PLA04*4200A1

PLAH04*4200A1

A

1.126

[28.60]

1.324

[33.63]

PART NUMBER

PLA06*4200A1

PLAH06*4200A1

PLA08*4200A1

PLAH08*4200A1

A

1.718

[43.64]

2.112

[53.64]

Typical part number:

PLA03F42BN0A1

PLAH03F42BN0A1

Plating-Gold flash over nickel or 0.000030 [0.75µ] gold

over nickel on contacts. Solder coated tails

on terminating ends available.

See ordering information.

For connection systems 1,2,3 and 5.

PLB 90° PRINTED BOARD MOUNT CONNECTORS

CODE 42, 0.377 [9.58] CONTACT EXTENSION

MALE

A±0.020 [0.51]

0.606

[15.39]

0.600

[15.24]

0.197 [5.00]

0.098 [2.49]

0.197 [5.00]

0.098 [2.49]

0.600

[15.24]

FEMALE

A±0.020 [0.51]

0.606

[15.39]

0.377 [9.58]

ø0.062 [1.57]

Typical part number:

PLB06M42BN0A1

PLBH06M42BN0A1

*Asterisk determines

gender of connector,

M for male,

F for female.

Typical part number:

PLB06F42BN0A1

PLBH06F42BN0A1

Plating-Gold flash over nickel or 0.000030 [0.75µ] gold

over nickel on contacts. Solder coated tails

on terminating ends available.

See ordering information.

For connection systems 1, 2,3 and 5.

PART NUMBER

PLB06*4200A1

PLBH06*4200A1

PLB08*4200A1

PLBH08*4200A1

A

1.126

[28.60]

1.324

[33.63]

PART NUMBER

PLB12*4200A1

PLBH12*4200A1

PLB16*4200A1

PLBH16*4200A1

A

1.718

[43.64]

2.112

[53.64]

PLC 90° PRINTED BOARD MOUNT CONNECTORS

CODE 42, 0.377 [9.58] CONTACT EXTENSION

MALE

A±0.020 [0.51]

0.600

[15.24]

0.197 [5.00]

0.600

[15.24]

0.197 [5.00]

FEMALE

A±0.020 [0.51]

0.098 [2.49]

0.197 [5.00]

0.098 [2.49]

0.197 [5.00]

0.802

[20.37]

0.802

[20.37]

0.377 [9.58]

ø0.062 [1.57]

Typical part number:

PLC09M42BN0A1

PLCH09M42BN0A1

*Asterisk determines

gender of connector,

M for male,

F for female.

PART NUMBER

PLC09*4200A1

PLCH09*4200A1

PLC12*4200A1

PLCH12*4200A1

PLC18*4200A1

PLCH18*4200A1

A

1.126

[28.60]

1.324

[33.63]

1.718

[43.64]

PART NUMBER

PLC24*4200A1

PLCH24*4200A1

PLC30*4200A1

PLCH30*4200A1

A

2.112

[53.64]

2.506

[63.65]

Typical part number:

PLC09F42BN0A1

PLCH09F42BN0A1

Plating-Gold flash over nickel or 0.000030 [0.75µ] gold

over nickel on contacts. Solder coated tails

on terminating ends available.

See ordering information.

For connection systems 1, 2, 3 and 5.

DIMENSIONS ARE IN INCHES [MILLIMETERS].

ALL DIMENSIONS ARE SUBJECT TO CHANGE.
