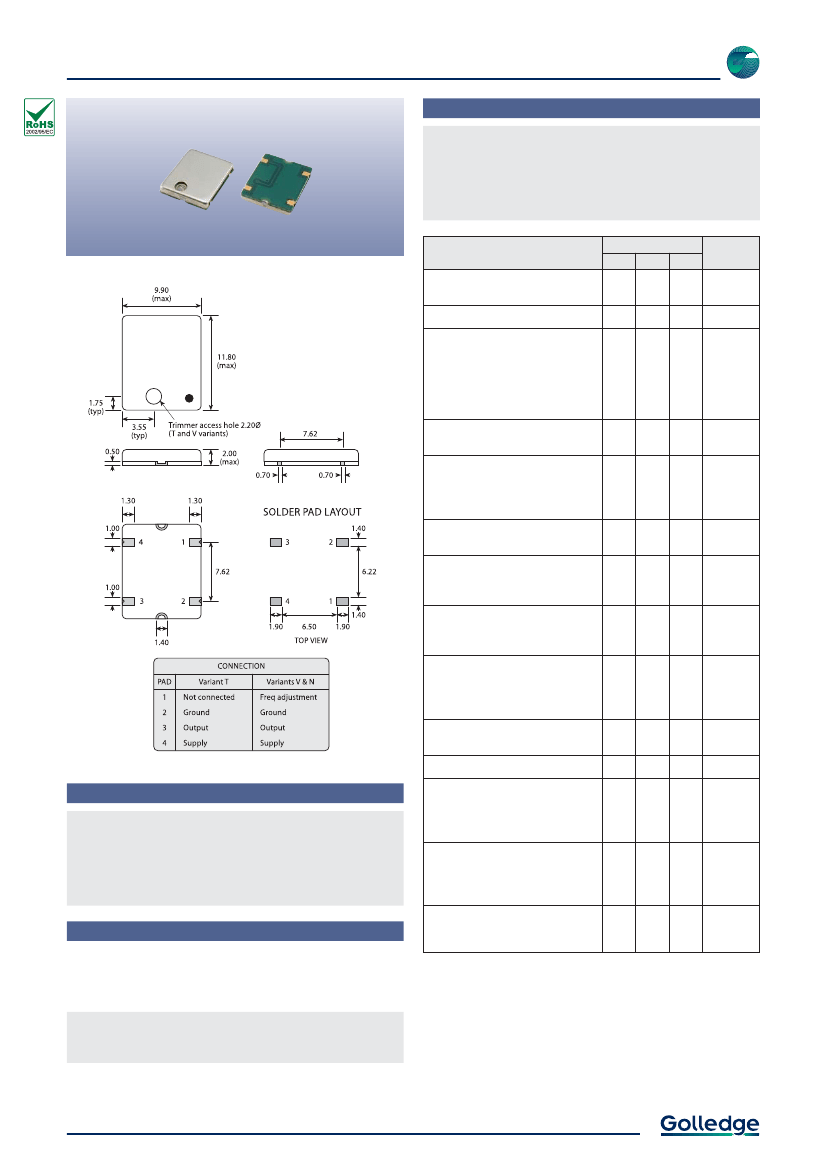

3V & 5V SM TCXO Clipped Sine
Specifications
GTXO-560T: Internal trimmer
GTXO-560
GTXO-560V: Voltage adjustment + trimmer
GTXO-560N: Voltage adjustment, no trimmer
Variant
T
with trimmer
without trimmer
10.0 ~ 40.0MHz
V
M
P
K
H
G
F
N
Parameters
Package style:
Frequency range:
Option
Codes
Frequency stability:
±2.5ppm over -40 to +85°C
±2.5ppm over -30 to +75°C
±2.0ppm over -30 to +75°C
±1.5ppm over -20 to +70°C
±1.0ppm over -20 to +70°C
Storage temperature range:
-40 to +85°C
Frequency vs supply voltage:
±0.3ppm (<22.0MHz)
±0.5ppm (<28.0MHz)
±1.0ppm (<40.0MHz)
Frequency vs load change:
±0.3ppm (10kΩ±10%//10pF±10%)
Ageing (1st yr):
±1.0ppm (<22.0MHz)
±1.5ppm (<28.0MHz)
±2.0ppm (<40.0MHz)
Supply voltage (V
DD
):
+3.0V (±5%)
+3.3V (±5%)
+5.0V (±5%)
Supply current:
2.0mA max (<22.0MHz)
3.0mA max (<28.0MHz)
4.0mA max (<40.0MHz)
Output waveform:
Clipped sine, 0.8V p-p typ
Test load:
10kΩ // 10pF
Features
3.0V to 5.0V supply, low power consumption
Stabilities down to ±1.0ppm
Industrial temperature range option
Frequency adjustment:
±3ppm min by internal trimmer
±5.0 ~ ±10.0ppm
±8.0 ~ ±14.0ppm
Control voltage range:
+1.5V ±1.0V (3.0V supply)
+1.65V ±1.35V (3.3V supply)
+2.5V ±2.0V (5.0V supply)
Preset frequency:
±0.5ppm / +25°C ±2°C
±2.0ppm / +25°C ±2°C
Ordering Information
Product name + variant + option codes (if any) + frequency
eg:
GTXO-560V 13.0MHz
±2.5ppm -30+75°C, 3V supply (standard)
GTXO-560V/GP 13.0MHz
±1.5ppm-20+70°C, 5V supply
Option code X (eg GTXO-560V/X) denotes a custom spec.
Available on T&R - 2k pcs per reel.
Refer to our website for T&R and soldering details.
Trimmer tool available. Ask for our part number MA06805.
Standard.
Optional - Please specify required code(s) when ordering
Tel:
+44 1460 256 100
19 Aug 2003
Fax:
+44 1460 256 101
E-mail:
sales@golledge.com
Web:
www.golledge.com
