Pomona
®
Model 2970
Triple Banana Plug
FEATURES:
•
Set screws secure leads.
•
Ideal for balanced line 2 conductor shielded cable assemblies.
MATERIALS:
Upper Conn.: Triple Banana Jack
Material: Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Nickel plate per QQ-N-290, Class 2, (.0002/.0003).
Insulation: ABS molded to Banana Jacks and Banana Plug Bodies.
Marking “POMONA ELECTRONICS POMONA CALIF., 2970”.
Lower Conn.: Triple Banana Plug
Material: Body – Same as Jack
Spring – Beryllium Copper per QQ-C-533, Alloy 172, Cond. H.T.
Finish – Nickel plate per QQ-N-290, Class 2, (.0002/.0003).
Cross holes: 3.18 (.125) dia. with #8-32 slotted set screw to secure lead wires
RATINGS:
Operating Temperature: +50°C. (+122°F.) Max.
Operating Voltage: 5000 VDC
Current: 15 Amperes Cont.
Capacitance: 0.8 pf at 10 MHz.
Contact Resistance: Less than .001 Ohms per plug.
ORDERING INFORMATION:
Model 2970-*
*=Color, -0 Black, -2 Red
Ordering Example: 2970-2 Color is Red.

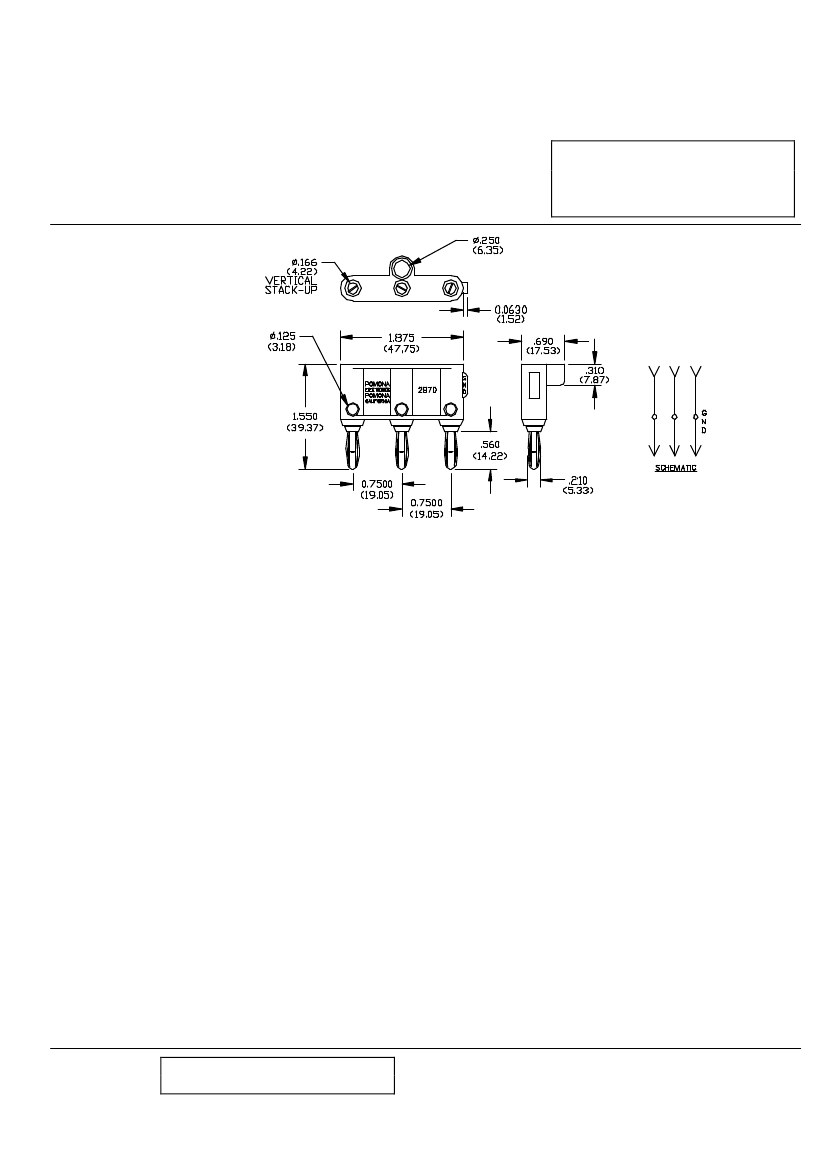

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90564
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
