Model 3561, 3563, 3565, 4691
Banana Jack To #12, 16, 20 & 22
Pin

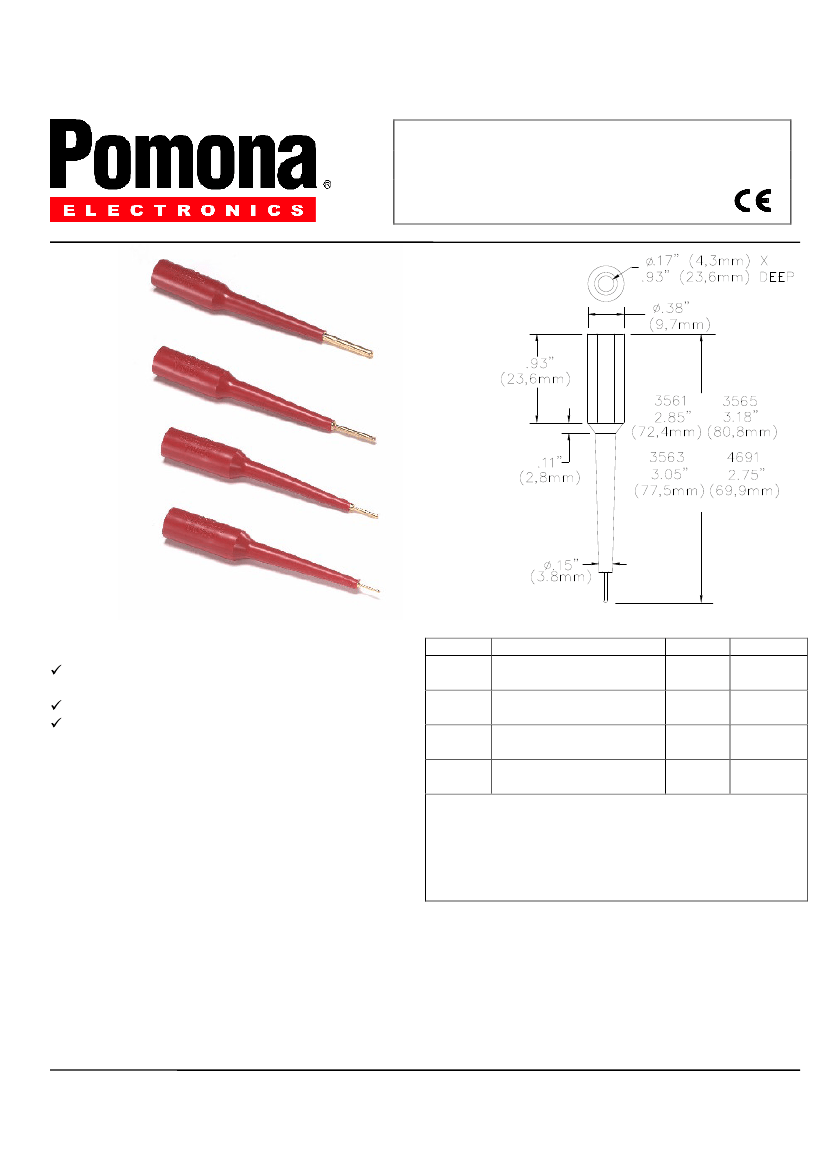

FEATURES:
Ideal test adapters for rapid testing of the hard-to-get
to sockets of multi-socket connectors.
Flexible tip allows testing of adjacent contacts.
Full insulation protects against shorting or contact
damage.
MATERIALS:
Insulation: Polyvinyl chloride (PVC).
Banana Jack Body (upper connector)
Material:
Brass.
Finish:
Bright Tin plated
Pin (lower connector):
Material:
Brass
Finish:
Gold plated over nickel plating
Model
4691
3561
3563
3565
Contact Size
22 AWG .030” (.76mm)
20 AWG .040” (1.02mm)
16 AWG .063” (1.60mm)
12 AWG .093” (2.36mm)
Type
Pin
Pin
Pin
Pin
Current
5 Amps
7.5 Amps
13 Amps
24 Amps
Ratings:
Hands free testing in controlled voltage environments:
2500 Vrms Max.
For CE compliance:
not intended for
hand-held use at voltages above 33 Vrms/70 Vdc.
Operating Temperature: +131F (+55C) Max.
ORDERING INFORMATION:
Model:
3561-*, 3563-*, 3565-*, 4691-*
*=Color, -0 Black, -2 Red
Ordering Example: 3561-2 (red adapter)
Test Kit 6481:
contains 18 pieces, one red and one black adapter of each adapter; 3560, 3561, 3562, 3563, 3564, 3565,
4690, 4691 and one set of model 6358 test leads.
For banana jack to test sockets see models: 3560, 3562, 3564, 4690
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1093953, D1093955, D1093957, D1094167
Page 1 of 2

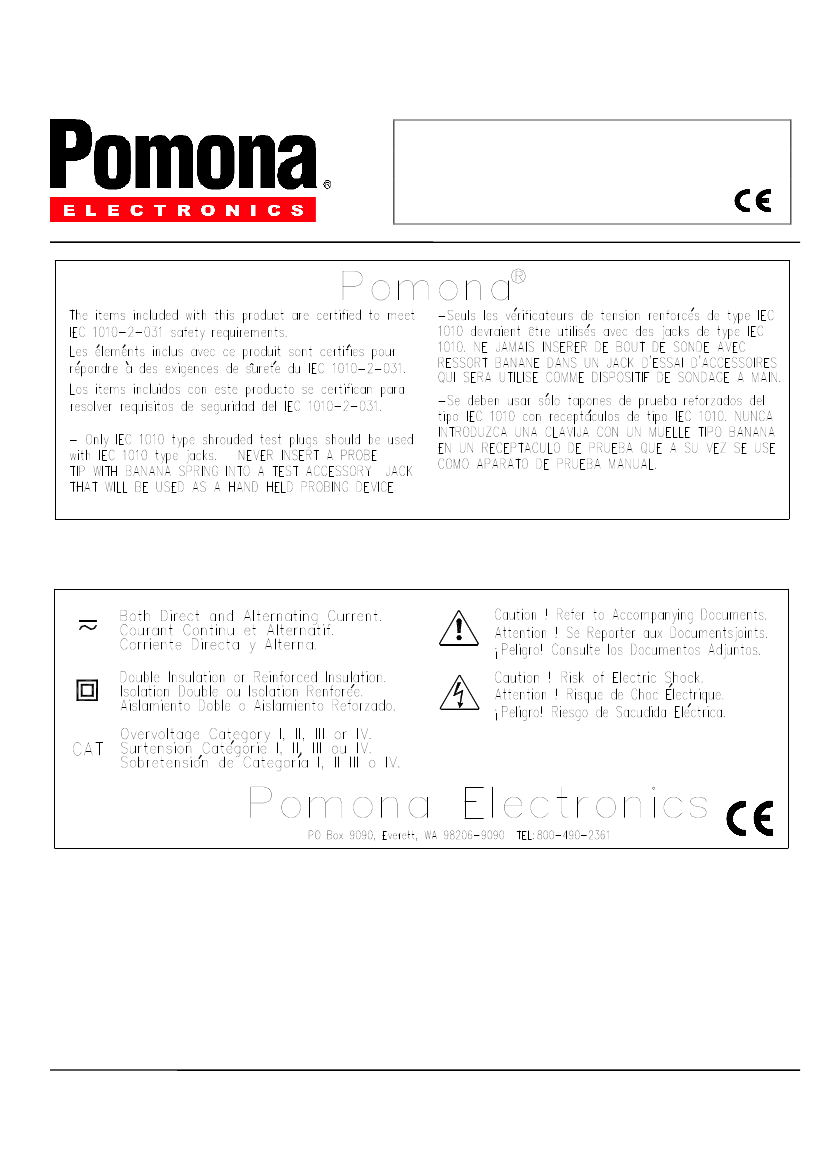

Model 3561, 3563, 3565, 4691
Banana Jack To #12, 16, 20 & 22
Pin
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1093953, D1093955, D1093957, D1094167
Page 2 of 2
