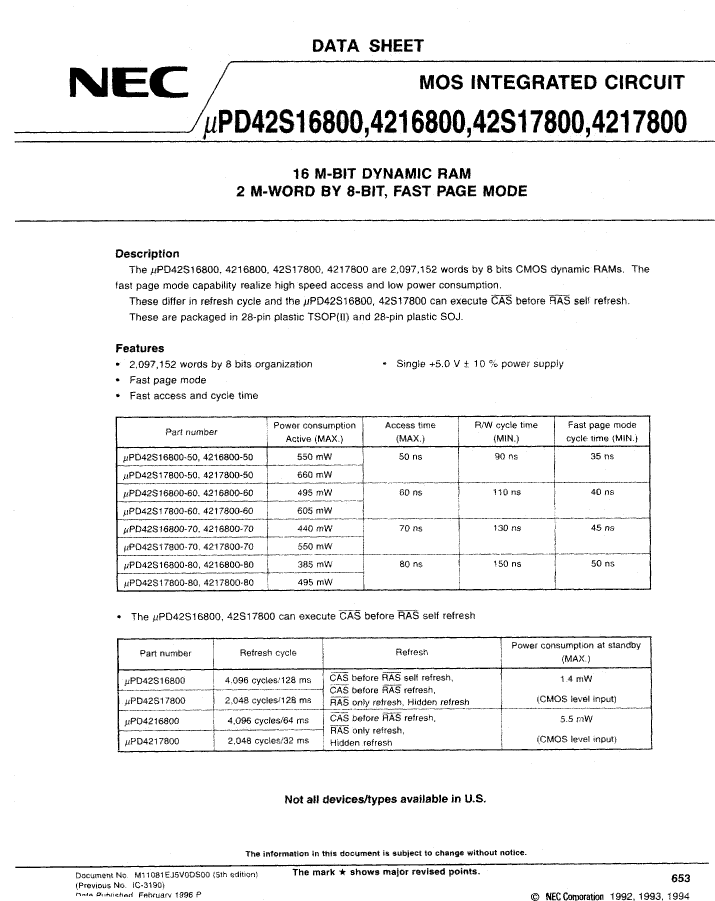

UPD42S16800LE-80 datasheet, PDF

UPD42S16800LE-80: DescriptionIC,DRAM,FAST PAGE,2MX8,CMOS,SOJ,28PIN,PLASTIC; Categorystorage storage; File Size1MB，30 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

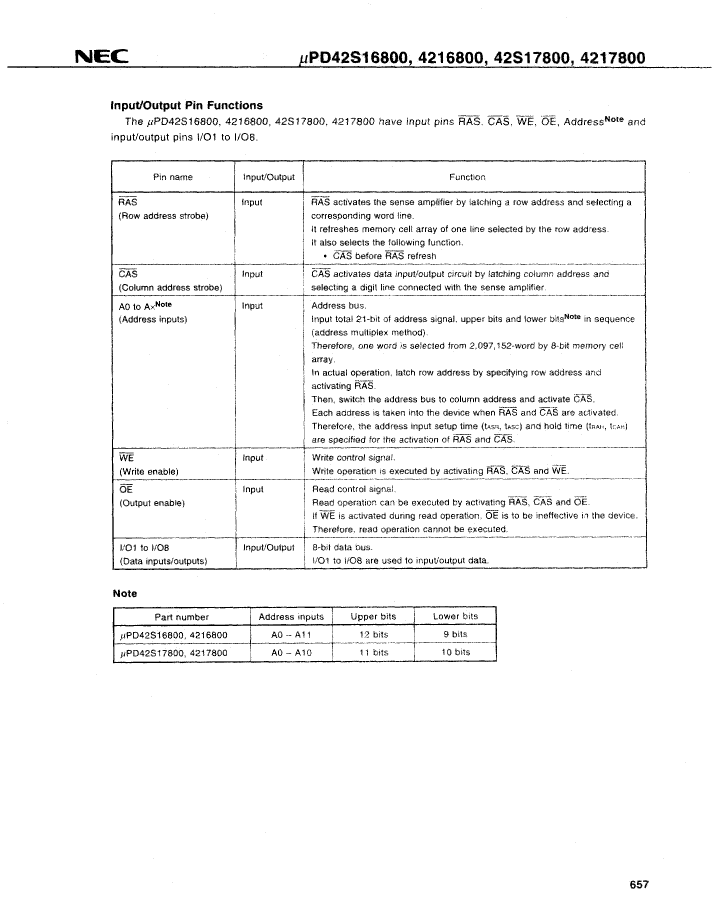

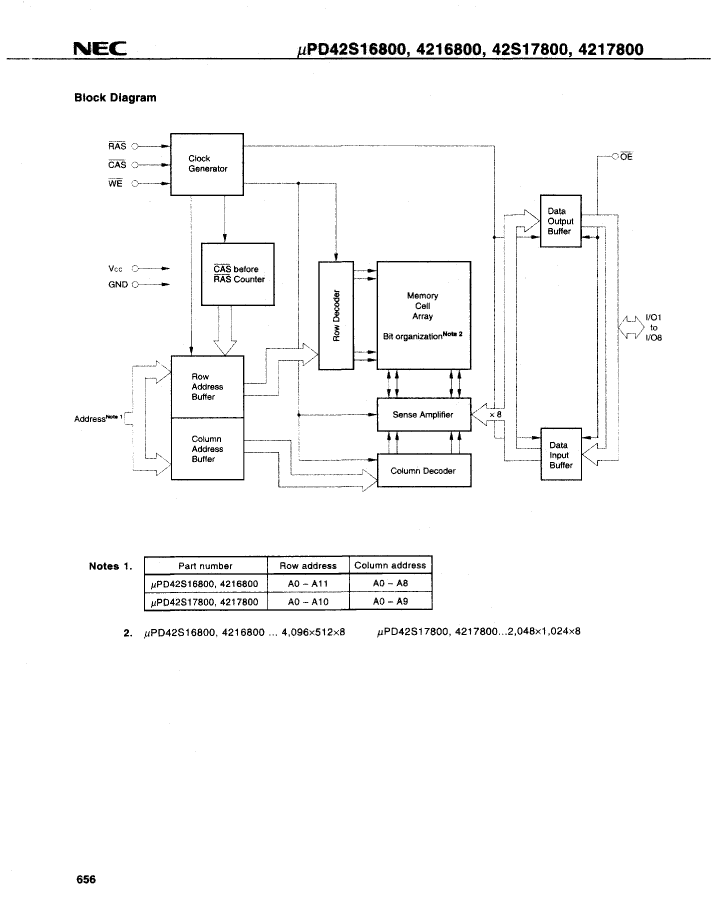

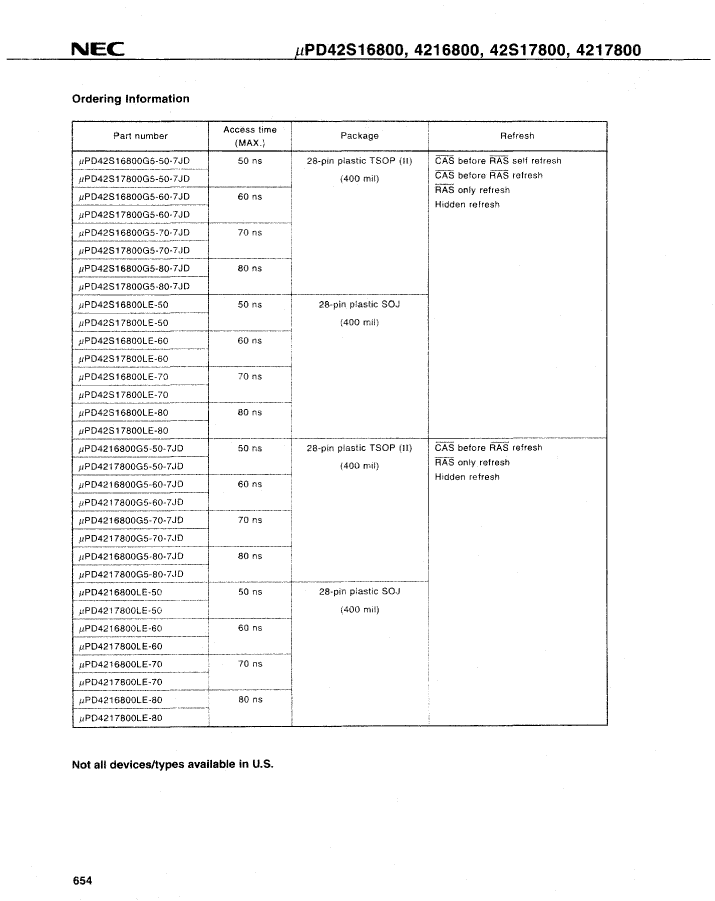

UPD42S16800LE-80 Overview

IC,DRAM,FAST PAGE,2MX8,CMOS,SOJ,28PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation

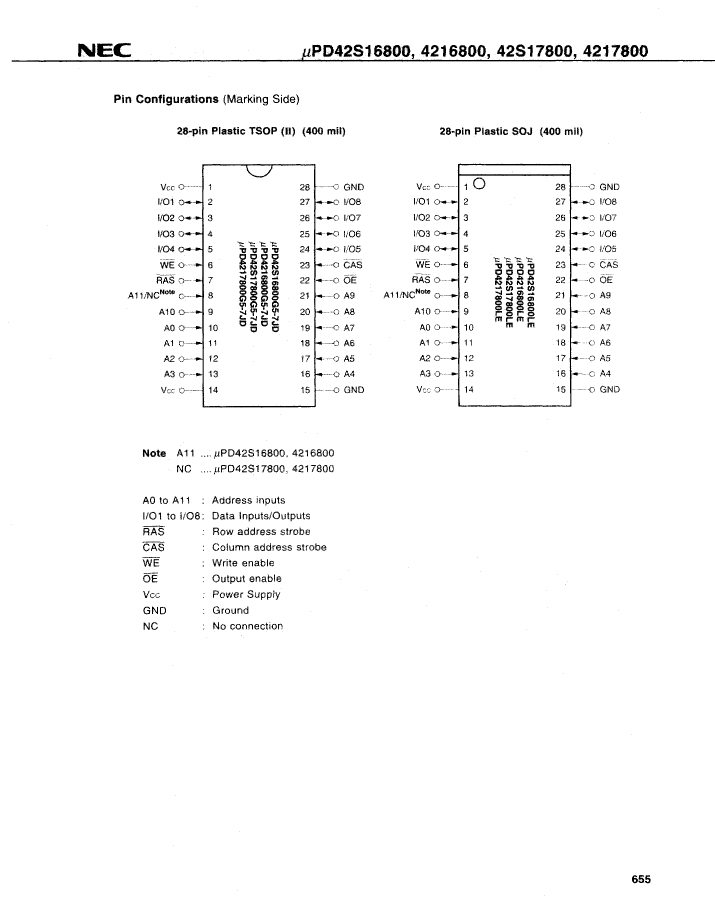

Parts packaging code	SOJ
package instruction	SOJ,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
JESD-30 code	R-PDSO-J28
length	18.67 mm
memory density	16777216 bit
Memory IC Type	FAST PAGE DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	3.7 mm
self refresh	YES
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.16 mm
Base Number Matches	1
