G AUDIO CONNECTORS A, AA, AND QGP SERIES
click here to download a schematic drawing
(you will need to have Adobe Acrobat installed on your system to do this)
®
QGP connectors (3 contacts only) feature Vel
-
Tone non
-
reflective finish, gray TPR
flex relief and plated pins/contacts for the most demanding applications.

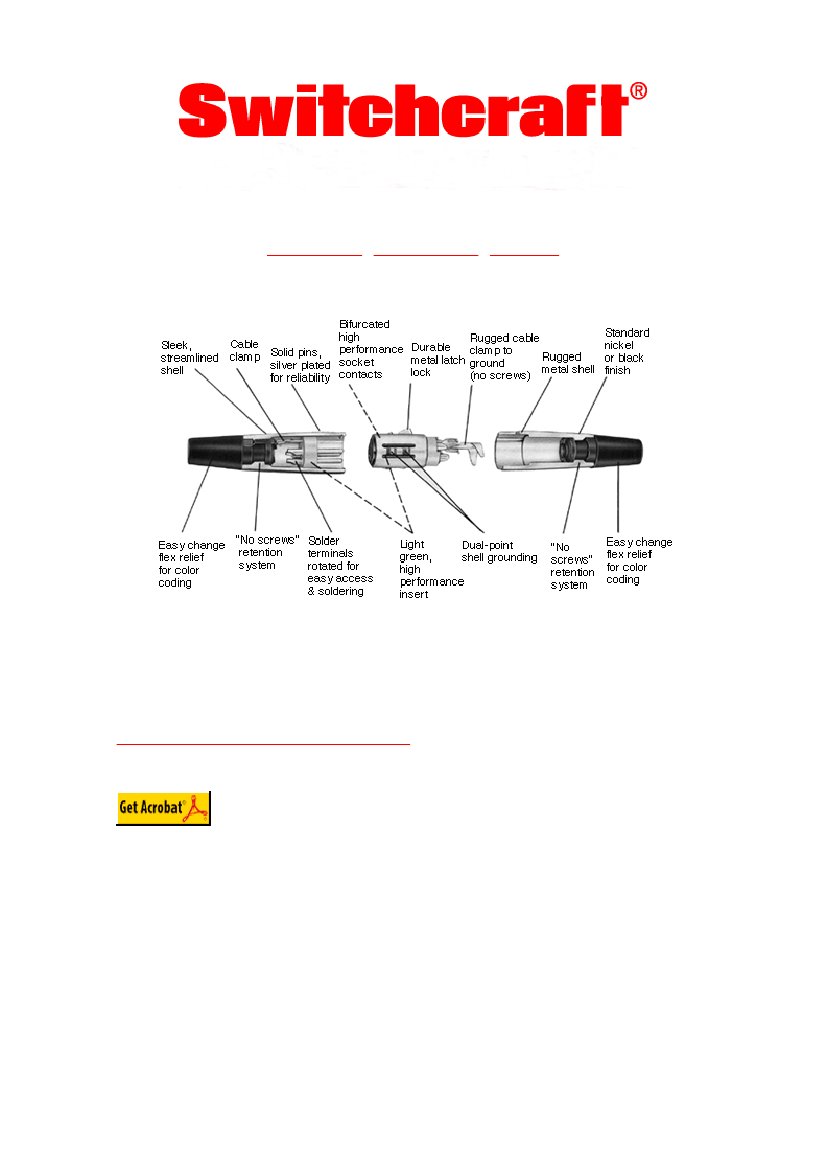

Preferred by audio professionals the world over, Switchcraft QG connectors feature
unsurpassed durability and a choice of finishes and contact platings. Features include:
* High performance inserts in traditional Switchcraft green or black.
* Solder terminals rotated for easier access and soldering.
®
®
®
®
05/02/2006
Switchcraft
Page 2 of 4
* All metal housing.
AA Series Only
* Rugged 1-piece cable clamp to relieve pulling and twisting stresses on terminations.
* No Screws flex relief retention system.
* Integral bump shell grounding system.
SPECIFICATIONS
ELECTRICAL
Contact Resistance:
50 milliohm maximum, per pole.
Current Rating:
3 pole
-
15A, 4 pole
-
10A, 5 and 6 pole
-
7.5A, 7 pole
-
5A @
125VAC.
Insulation Resistance:
1,000 M(omega), minimum.
Dielectric Withstanding Voltage:
1,000 V (rms).
Capacitance:
2 pF between pins and 4 pF between pins and shell, maximum (AA3M
and AA3F).
MECHANICAL
Insertion/Withdrawal Forces:
7 pound maximum,
5 pound nominal, insertion; 7 pound maximum, 5 pound nominal, withdrawal.
Wire Size:
#12 wire gauge solid; #14 wire gauge stranded (3 contact). #14 wire gauge
solid; #16 wire gauge stranded (4 contact). #16 wire gauge solid; #18 wire gauge
stranded (5 and 6 contact). #18 wire gauge solid; #20 stranded (7 contact). (Q-G and
QGP).
MATERIAL
Q-G Connectors (A and AA Series)
Shell:
Die-cast zinc. Satin nickel finish, black velvet.
Insert Insulation:
Molded thermoplastic.
Socket Contacts:
Silver-plated copper alloy tarnish-resistant; bifurcated on 3-contact
type. Gold is available
Pin Contacts:
Silver-plated copper alloy. Resists tarnishing, and provide excellent
electrical conductivity. Gold is available.
http://www.switchcraft.com/products/connectors-4.html
05/02/2006
Switchcraft
Page 3 of 4
Latchlock:
High-strength die-cast zinc.
Latch Release:
Steel, nickel-plated.
Latch Detent:
Formed stainless steel.
Insert Screw:
Stainless steel.
Flex Relief:
TPR (thermoplastic rubber).
QGP Connectors
Shell:
Die
-
cast zinc, non
-
reflective gray Vel
-
Tone finish.
Socket Contacts:
Gold-plated copper alloy
Pin Contact:
Gold-plated copper alloy
PART NUMBERS
-
FEMALE CORD PLUGS
Advanced Q-6® Cord Plugs, Series AA(*)F and AQGP
AA3F AA3FB
¤AA3FBAU ¤AA3FD ¤AA3FL
-
-
-
-
-
-
-
AA3FLD
¤AA4FD ¤AA4FL
¤AA5FD ¤AA5FL
¤AA6FD ¤AA6FL
¤AA7FD ¤AA7FL
¤AA4F ¤AA4FB
¤AA5F ¤AA5FB
¤AA6F ¤AA6FB
¤AA7F ¤AA7FB
¤AQGP322
-
-
-
-
-
3
3
4
5
6
7
®
¤Available
on special order only; contact Switchcraft for price and delivery.
PART NUMBERS
-
MALE CORD PLUGS
Advanced Q-6® Cord Plugs, Series AA(*)M and AQGP
AA3M
¤AA4M
¤AA6M
¤AA7M
¤AA3MB ¤AA3MBAU ¤AA3ML
-
-
-
-
-
-
-
¤AA4ML
¤AA5ML
¤AA6ML
¤AA7ML
¤AQGP323
-
-
-
-
3
4
5
6
7
¤AA5M ¤AA5MB
http://www.switchcraft.com/products/connectors-4.html
05/02/2006
Switchcraft
Page 4 of 4
¤Available
on special order only; contact Switchcraft for price and delivery.
All above part numbers have black flex relief installed. Contact Switchcraft for color
flex relief.
