8SXB33M: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 6.3 V, 47 uF, SURFACE MOUNT, 2917; CategoryPassive components; File Size127KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

8SXB33M Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 6.3 V, 47 uF, SURFACE MOUNT, 2917

8SXB33M Parametric

Parameter Name	Attribute value
Maximum operating temperature	105 Cel
Minimum operating temperature	-55 Cel
negative deviation	20 %
positive deviation	20 %
Rated DC voltage urdc	6.3 V
Processing package description	CHIP, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	NICKEL PALLADIUM GOLD
Installation features	SURFACE MOUNT
Manufacturer Series	SXB
size code	2917
capacitance	47 uF
packaging shape	RECTANGULAR PACKAGE
Capacitor type	SOLID POLYMER
Terminal shape	WRAPAROUND
equivalent series resistance	13mohm@100KHz
polarity	POLARIZED
tangent angle	0.1
ripple current	3000mA@100KHz
leakage current	11.844uA

Preview

Download Datasheet

View All

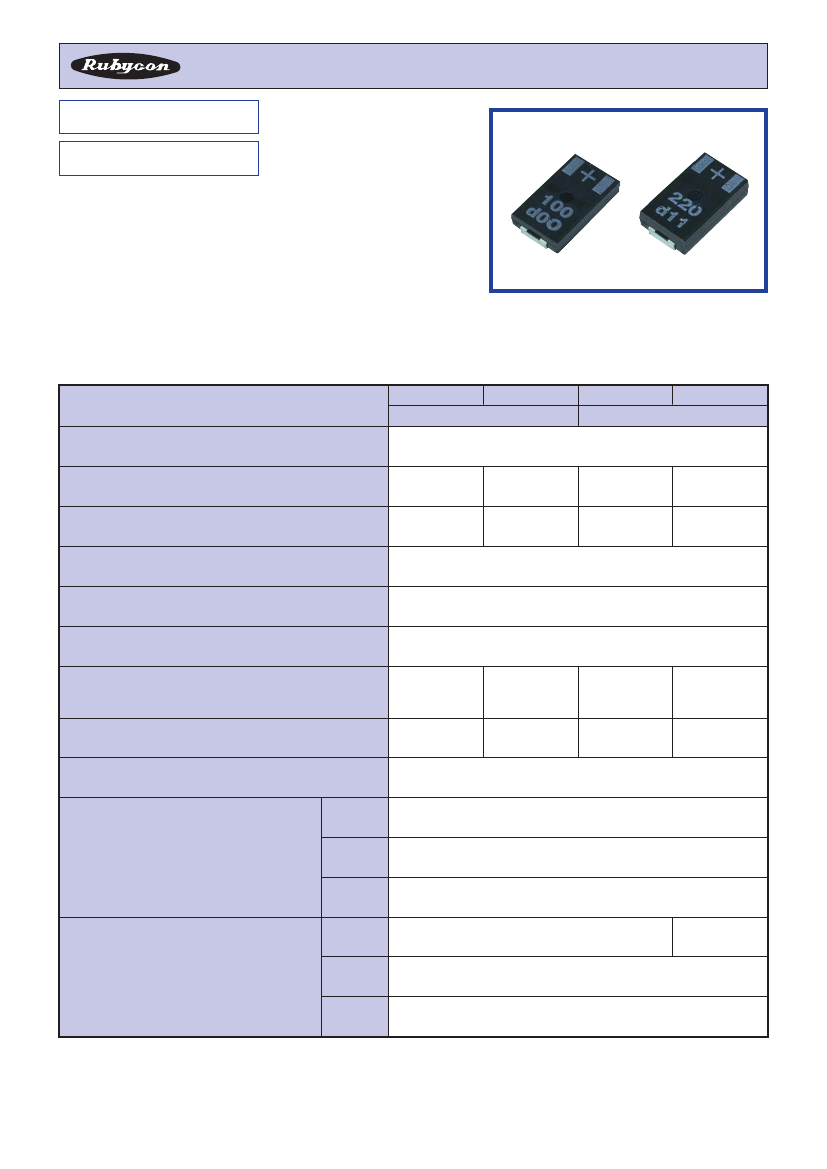

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

PC-CON

SXB/SXE

SLE/SZE

◆FEATURES

SERIES

SXB Standard

：

SXE Low ESR

：

SLE Low Proﬁle,Low ESR

：

SZE Low Proﬁle,Ultra Low ESR

：

・

RoHS Compliance

Lead free reﬂow soldering is available(260℃,10sec):(Available for MSL3)

・

◆SPECIFICATIONS

Series

SXB

1.9mm

SXE

SLE

1.4mm

SZE

Temperature Range(℃)

−55∼＋105℃

2∼10

22∼220

2∼6.3

33∼220

±20％

≦0.04CV

≦0.1

2∼6.3

47∼100

2、

2.5

100∼150

Rated Voltage Range(V.DC)

Capacitance Range(μF)

Capacitance Tolerance(20℃ , 120Hz)

Leakage Current(μA/after 5 minutes)

（tanδ）

Dissipation Factor(20℃ , 120Hz)

Equivalent Series Resistance(ESR)

(mΩ/20℃ , 100kHz)

13∼30

1,600∼

3,000

7∼9

9

5

Maximum Allowable Ripple Current(mA r.m.s/100kHz)

3,000

Surge Voltage

Rated voltage ×1.25

ΔC

Endurance

(105℃, 2000hrs, Rated Voltage applied)

Within ±20% of the initial value

tanδ

LC

ΔC

≦200% of initial speciﬁed value

≦initial speciﬁed value

Within −20∼+60% of the

initial value

Within −20∼+40% of the initial value

Damp heat(Steady state)

(60℃, 90%RH, 500hrs, No-applied voltage)

tanδ

LC

≦200% of initial speciﬁed value

≦300% of initial speciﬁed value
