AT91SAM7XC128 Overview

32-BIT, FLASH, 55 MHz, RISC MICROCONTROLLER, PQFP100

AT91SAM7XC128 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	100
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	1.95 V
Minimum supply/operating voltage	1.65 V
Rated supply voltage	1.8 V
External data bus width	0.0
Number of input and output buses	62
Line speed	55 MHz
Processing package description	Green, MS-026, LQFP-100
state	EOL/LIFEBUY
packaging shape	SQUARE
Package Size	FLATPACK, LOW PROFILE, FINE PITCH
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	0.5000 mm
Terminal location	Four
Packaging Materials	Plastic/Epoxy
Temperature level	INDUSTRIAL
ADC channel	Yes
Address bus width	0.0
Number of digits	32
Maximum FCLK clock frequency	50 MHz
DMA channel	Yes
Microprocessor type	Reduced Instruction Set Microcontroller
PWM channel	Yes
ROM programming	FLASH

Preview

Download Datasheet

View All

Features

•

Incorporates the ARM7TDMI

ARM

Thumb

Processor

– High-performance 32-bit RISC Architecture

– High-density 16-bit Instruction Set

– Leader in MIPS/Watt

– EmbeddedICE

™

In-circuit Emulation, Debug Communication Channel Support

Internal High-speed Flash

– 512 Kbytes (AT91SAM7XC512) Organized in Two Banks of 1024 Pages of 256 Bytes

(Dual Plane)

– 256 Kbytes (AT91SAM7XC256) Organized in 1024 Pages of 256 Bytes (Single

Plane)

– 128 Kbytes (AT91SAM7XC128) Organized in 512 Pages of 256 Bytes (Single Plane)

• Single Cycle Access at Up to 30 MHz in Worst Case Conditions

• Prefetch Buffer Optimizing Thumb Instruction Execution at Maximum Speed

• Page Programming Time: 6 ms, Including Page Auto-erase,

Full Erase Time: 15 ms

• 10,000 Write Cycles, 10-year Data Retention Capability,

Sector Lock Capabilities, Flash Security Bit

• Fast Flash Programming Interface for High Volume Production

Internal High-speed SRAM, Single-cycle Access at Maximum Speed

– 128 Kbytes (AT91SAM7XC512)

– 64 Kbytes (AT91SAM7XC256)

– 32 Kbytes (AT91SAM7XC128)

Memory Controller (MC)

– Embedded Flash Controller, Abort Status and Misalignment Detection

Reset Controller (RSTC)

– Based on Power-on Reset Cells and Low-power Factory-calibrated Brownout

Detector

– Provides External Reset Signal Shaping and Reset Source Status

Clock Generator (CKGR)

– Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and one PLL

Power Management Controller (PMC)

– Power Optimization Capabilities, Including Slow Clock Mode (Down to 500 Hz) and

Idle Mode

– Four Programmable External Clock Signals

Advanced Interrupt Controller (AIC)

– Individually Maskable, Eight-level Priority, Vectored Interrupt Sources

– Two External Interrupt Sources and One Fast Interrupt Source, Spurious Interrupt

Protected

Debug Unit (DBGU)

– 2-wire UART and Support for Debug Communication Channel interrupt,

Programmable ICE Access Prevention

– Mode for General Purpose 2-wire UART Serial Communication

Periodic Interval Timer (PIT)

– 20-bit Programmable Counter plus 12-bit Interval Counter

Windowed Watchdog (WDT)

– 12-bit Key-protected Programmable Counter

– Provides Reset or Interrupt Signals to the System

– Counter May Be Stopped While the Processor is in Debug State or in Idle Mode

•

Product

Description

AT91SAM7XC512

AT91SAM7XC258

AT91SAM7XC128

Summary

•

NOTE:

This is a summary document.

The complete document is available on

the Atmel website at www.atmel.com.

6209DS–ATARM–17-Feb-09

1. Description

Atmel's AT91SAM7XC512/256/128 is a member of a series of highly integrated Flash microcon-

trollers based on the 32-bit ARM RISC processor. It features 512/256/128 Kbyte high-speed

Flash and 128/64/32 Kbyte SRAM, a large set of peripherals, including an 802.3 Ethernet MAC,

a CAN controller, an AES 128 Encryption accelerator and a Triple Data Encryption System. A

complete set of system functions minimizes the number of external components.

The embedded Flash memory can be programmed in-system via the JTAG-ICE interface or via

a parallel interface on a production programmer prior to mounting. Built-in lock bits and a secu-

rity bit protect the firmware from accidental overwrite and preserve its confidentiality.

The AT91SAM7XC512/256/128 system controller includes a reset controller capable of manag-

ing the power-on sequence of the microcontroller and the complete system. Correct device

operation can be monitored by a built-in brownout detector and a watchdog running off an inte-

grated RC oscillator.

By combining the ARM7TDMI processor with on-chip Flash and SRAM, and a wide range of

peripheral functions, including USART, SPI, CAN Controller, Ethernet MAC, AES 128 accelera-

tor, TDES, Timer Counter, RTT and Analog-to-Digital Converters on a monolithic chip, the

AT91SAM7XC512/256/128 is a powerful device that provides a flexible, cost-effective solution

to many embedded control applications requiring secure communication over, for example,

Ethernet, CAN wired and Zigbee

™

wireless networks.

1.1

Configuration Summary of the AT91SAM7XC512/256/128

The AT91SAM7XC512, AT91SAM7XC256 and AT91SAM7XC128 differ only in memory sizes.

Table 1-1

summarizes the configurations of the two devices.

Table 1-1.

Device

Configuration Summary

Flash

512K bytes

256K bytes

128K bytes

Flash Organization

dual plane

single plane

SRAM

128K bytes

64K bytes

32K bytes

AES

1 AES 256/192/128

1 AES 128

TDES

AT91SAM7XC512

AT91SAM7XC256

AT91SAM7XC128

AT91SAM7XC512/256/128 Preliminary

6209DS–ATARM–17-Feb-09

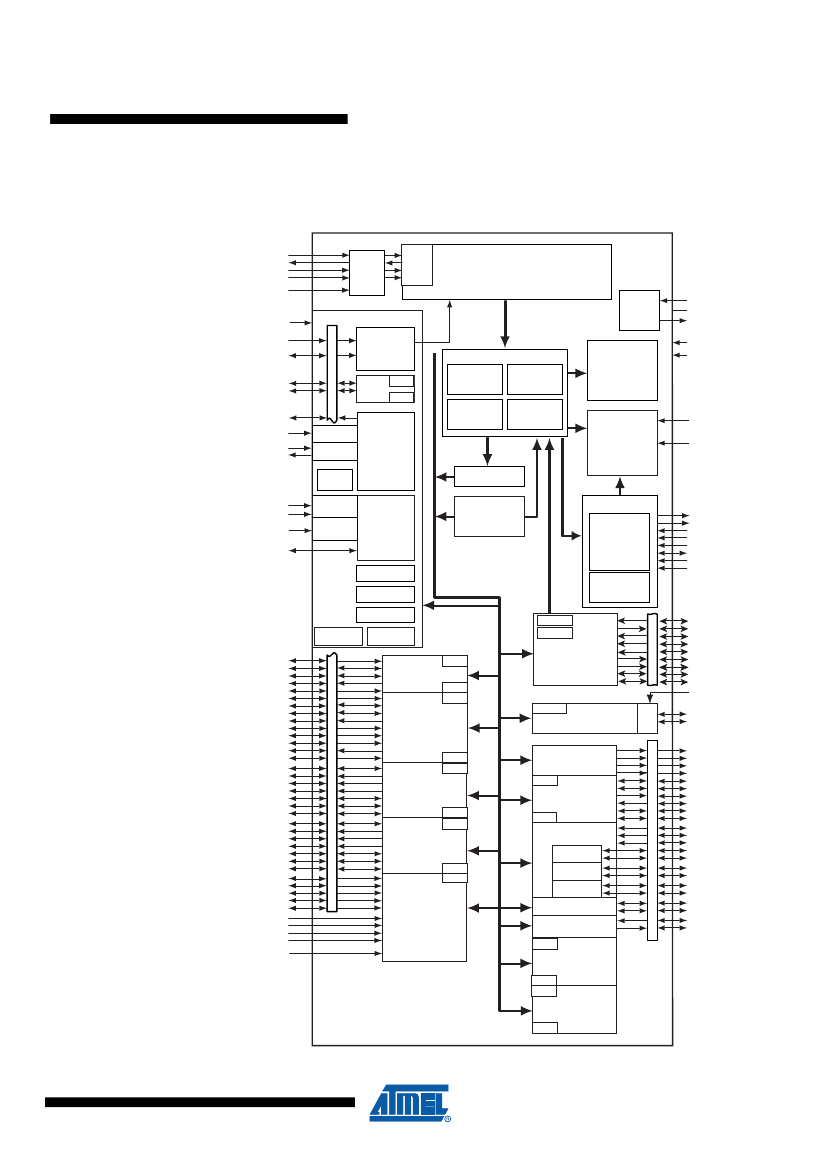

AT91SAM7XC128 Related Products

	AT91SAM7XC128	AT91SAM7XC258	AT91SAM7XC512_09	AT91SAM7XC512-AU	AT91SAM7XC512
Description	32-BIT, FLASH, 55 MHz, RISC MICROCONTROLLER, PQFP100	32-BIT, FLASH, 55 MHz, RISC MICROCONTROLLER, PQFP100	32-BIT, FLASH, 55 MHz, RISC MICROCONTROLLER, PQFP100	32-BIT, FLASH, 55 MHz, RISC MICROCONTROLLER, PQFP100	32-BIT, FLASH, 55 MHz, RISC MICROCONTROLLER, PQFP100
Number of terminals	100	100	100	100	100
Maximum operating temperature	85 Cel	85 Cel	85 Cel	85 °C	85 Cel
Minimum operating temperature	-40 Cel	-40 Cel	-40 Cel	-40 °C	-40 Cel
External data bus width	0.0	0.0	0.0	-	0.0
surface mount	Yes	Yes	Yes	YES	Yes
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	Four	Four	Four	QUAD	Four
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Address bus width	0.0	0.0	0.0	-	0.0
DMA channel	Yes	Yes	Yes	YES	Yes
PWM channel	Yes	Yes	Yes	YES	Yes
Number of functions	1	1	1	-	1
Maximum supply/operating voltage	1.95 V	1.95 V	1.95 V	-	1.95 V
Minimum supply/operating voltage	1.65 V	1.65 V	1.65 V	-	1.65 V
Rated supply voltage	1.8 V	1.8 V	1.8 V	-	1.8 V
Number of input and output buses	62	62	62	-	62
Line speed	55 MHz	55 MHz	55 MHz	-	55 MHz
Processing package description	Green, MS-026, LQFP-100	Green, MS-026, LQFP-100	Green, MS-026, LQFP-100	-	Green, MS-026, LQFP-100
state	EOL/LIFEBUY	EOL/LIFEBUY	EOL/LIFEBUY	-	EOL/LIFEBUY
packaging shape	SQUARE	SQUARE	SQUARE	-	SQUARE
Package Size	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	-	FLATPACK, LOW PROFILE, FINE PITCH
Terminal spacing	0.5000 mm	0.5000 mm	0.5000 mm	-	0.5000 mm
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	-	Plastic/Epoxy
ADC channel	Yes	Yes	Yes	-	Yes
Number of digits	32	32	32	-	32
Maximum FCLK clock frequency	50 MHz	50 MHz	50 MHz	-	50 MHz
Microprocessor type	Reduced Instruction Set Microcontroller	Reduced Instruction Set Microcontroller	Reduced Instruction Set Microcontroller	-	Reduced Instruction Set Microcontroller
ROM programming	FLASH	FLASH	FLASH	-	FLASH
