• Low DCR, suitable for large currents 0.019Ωmax for 5.6uH
• High Energy storage
RoHS
Compliant
18.54 x 15.24 x 7.62mm
APPLICATIONS:
• Portable communication equipment
• OA equipment
• LCD, DVD, modem, set-top box
• DC/ DC converter

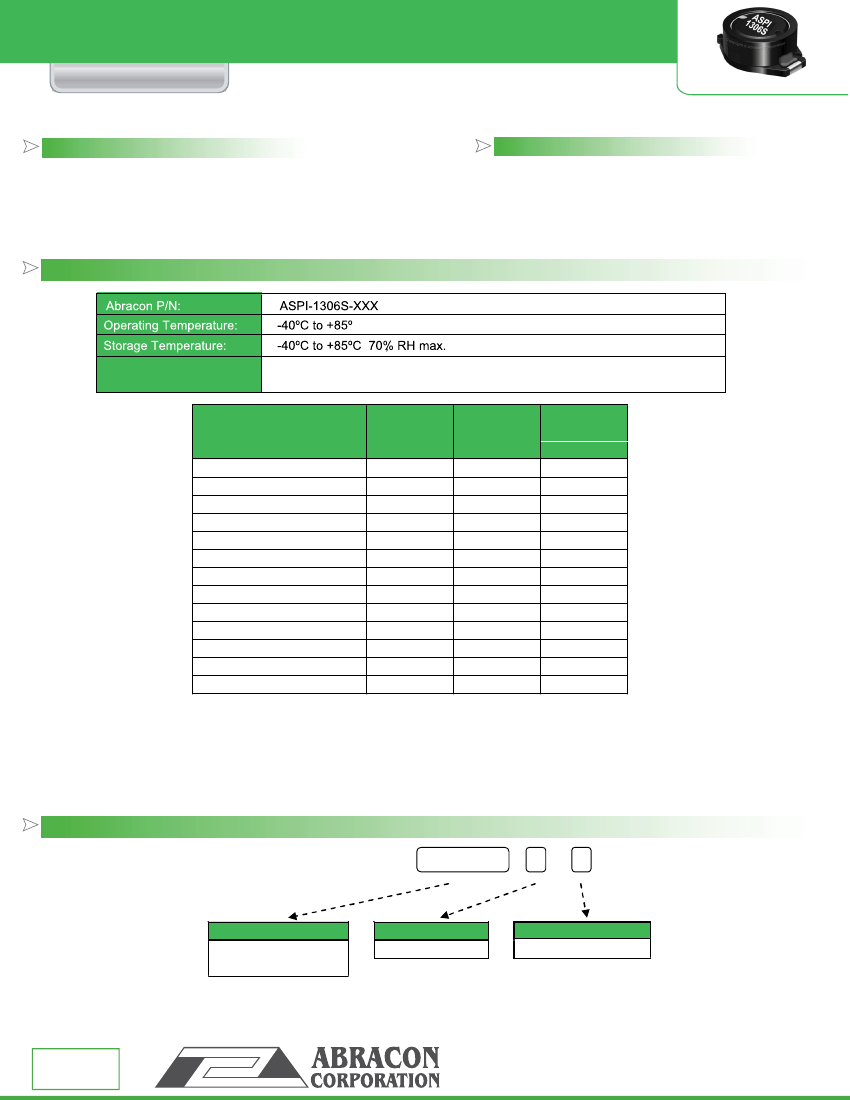

ELECTRICAL SPECIFICATIONS:
Measuring Conditions:
Unless specified, test condition should be Temp.=15½35 ºC, Humidity=25½75%.
If needed, then test condition should be Temp.=18
½22
ºC, Humidity=60½70%.
Part Number
Inductance
(µH)
DCR (
Ω
)
Max
Rated DC
current (A)
Idc
1
, Max
ASPI-1306S-100M
ASPI-1306S-150M
ASPI-1306S-220M
ASPI-1306S-330M
ASPI-1306S-470M
ASPI-1306S-680M
ASPI-1306S-101M
ASPI-1306S-151M
ASPI-1306S-221M
ASPI-1306S-331M
ASPI-1306S-471M
ASPI-1306S-681M
ASPI-1306S-102M
Tolerance: M=20%
10
15
22
33
47
68
100
150
220
330
470
680
1000
0.04
0.048
0.059
0.075
0.097
0.138
0.207
0.293
0.47
0.78
1.08
1.4
2.01
8
7
6
5
4
3
2.4
2.1
1.9
1.1
1.1
0.96
0.8
Note
1. IDC 1 : Base on Inductance change (
∆L/L0∣≦10%), ∆L=L(IDC)-L0
∣
2. Test Freq.：
100kHz、0.1V
OPTIONS AND PART IDENTIFICATION
ASPI-1306S -
Inductance Code
Please refer to the
table above
Tolerance %
M: ±20%
-
-
Packaging
T: Tape and Reel
ABRACON IS
ISO9001:2008
CERTIFIED
、
Revised: 08.11.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
SMD SHIELDED POWER INDUCTOR
ASPI-1306S

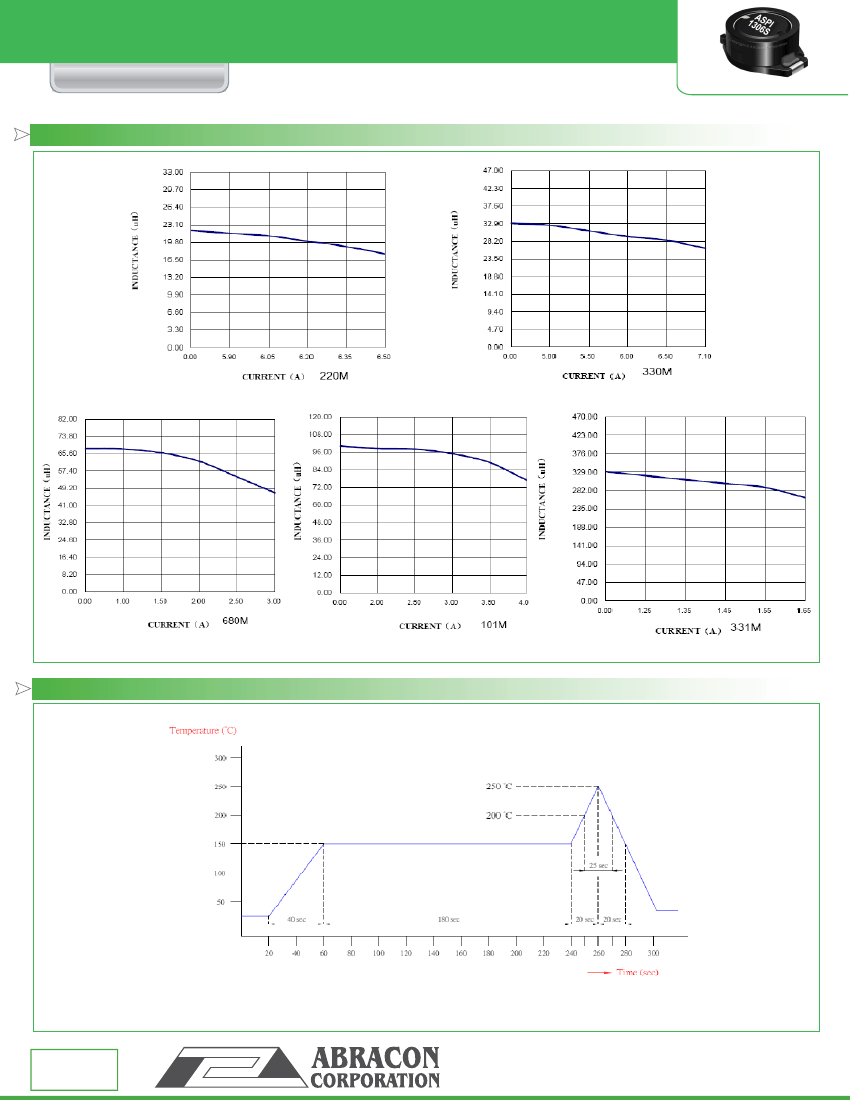

ELECTRICAL SPECIFICATION CHART
RoHS
Compliant
18.54 x 15.24 x 7.62mm
ASPI-1306S-220M
ASPI-1306S-330M
ASPI-1306S-680M
ASPI-1306S-101M
ASPI-1306S-331M
REFLOW PROFILE:
The reflow condition recommended above is according to the machine used by our company. Big differences will arise as a result of the type of machine,
reflow conditions, method, etc used. Hence, before setting up your Reflow Conditions, please contact Abracon Corporation to clear all questions.
、
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.11.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
SMD SHIELDED POWER INDUCTOR
ASPI-1306S

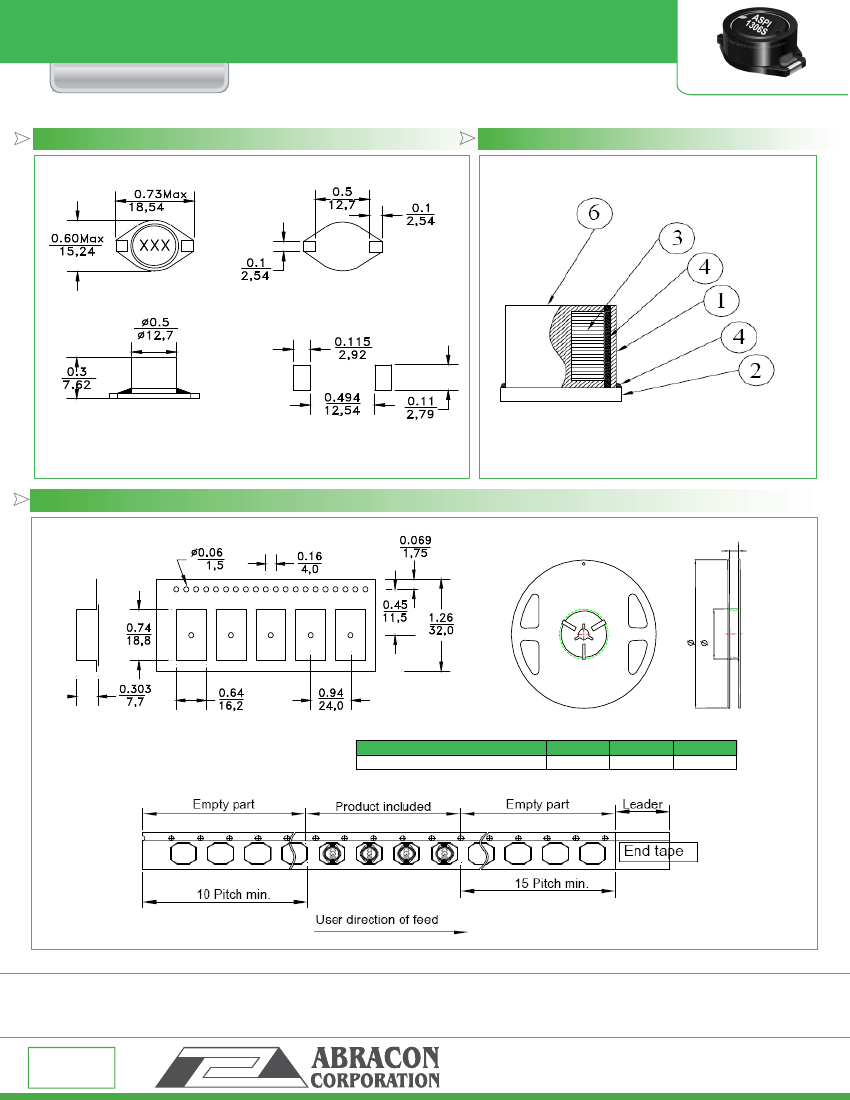

OUTLINE DIMENSIONS:
MATERIALS:
1. Core
2. Base
3. Wire
4. Epoxy
6. Tin
RoHS
Compliant
18.54 x 15.24 x 7.62mm
Dimension : inch/mm (tolerance: +/-0.3 in mm)
Plating material: Ni-Sn
TAPE & REEL:
T= tape and reel (250pcs/reel)
Dimension : mm
Dimension: inch/mm
Tolerance: +/-0.1 in mm
series
ASPI-1306S
A
330±2.0
C
32.5
Z
100±1.0
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent
and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CERTIFIED
、
Revised: 08.11.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
