SPECIFICATION
Part No.：
Features：
High radiometric power per LED
Very long operating life
(up to 100K hours)
Low voltage DC operated
More Energy Efficient than Incandescent
and most Halogen lamps
Good color uniformity
NO UV
Superior ESD protection
Easy installation with Screws
High Heat dissipstion Efficiency
Typical Applications：
Reading lights(car,bus,aircraft)
Portable(flashlight,bicycle)
Automotive Exterior(Stop-Tail-Turn,
CHMSL,Mirror Side Repeat)
Decorative/Entertainment
Dental curing lights
Uplighters/Downlighters
Bollards/Security/Garden
Cove/Undershelf/Task
Indoor/Outdoor Commercial and Residential Architectural
Automotive Ext(stop-Tail-Turn)
Street Lamp
NOTE:

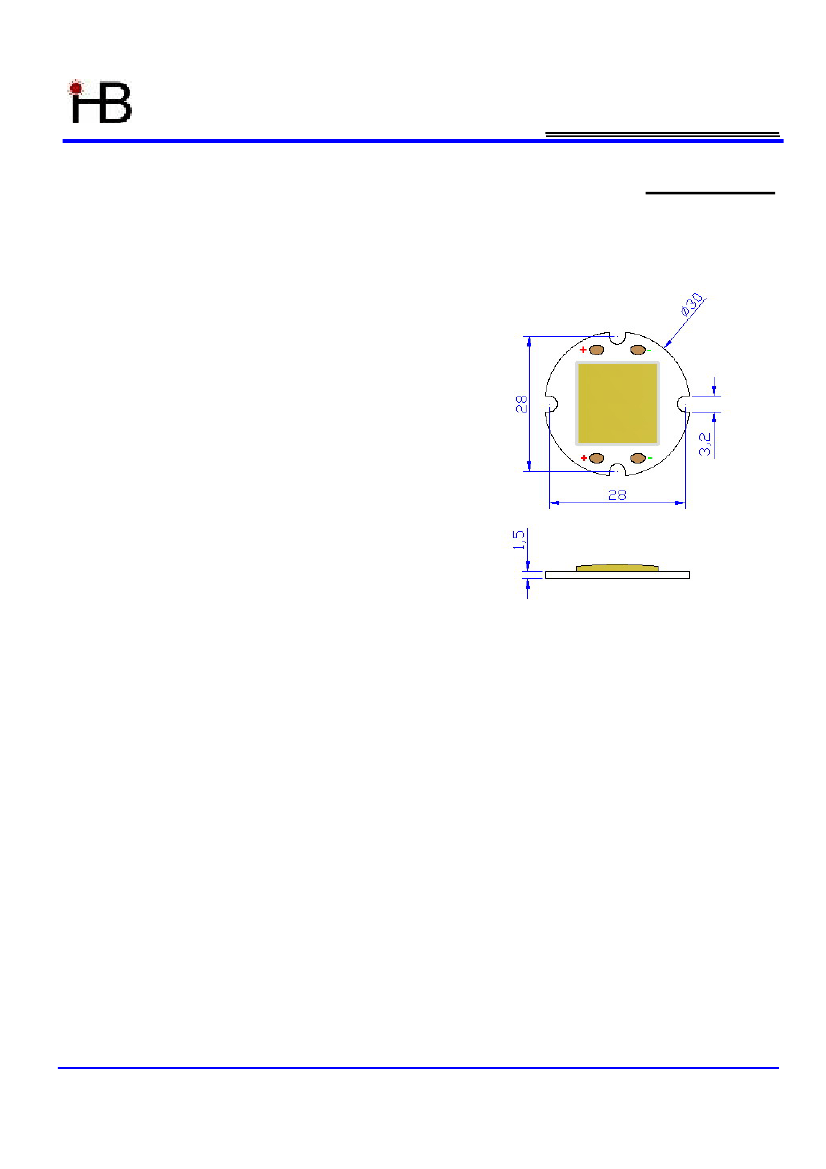

All dimensions are millimeter.
Tolerance is ±0.1mm unless otherwise noted.
It is strongly recommended that the temperature
of lead be not higher than 60℃.
The appearance and specifications of the product
may be modified for improvement without notice.
H
Page 1 of 3

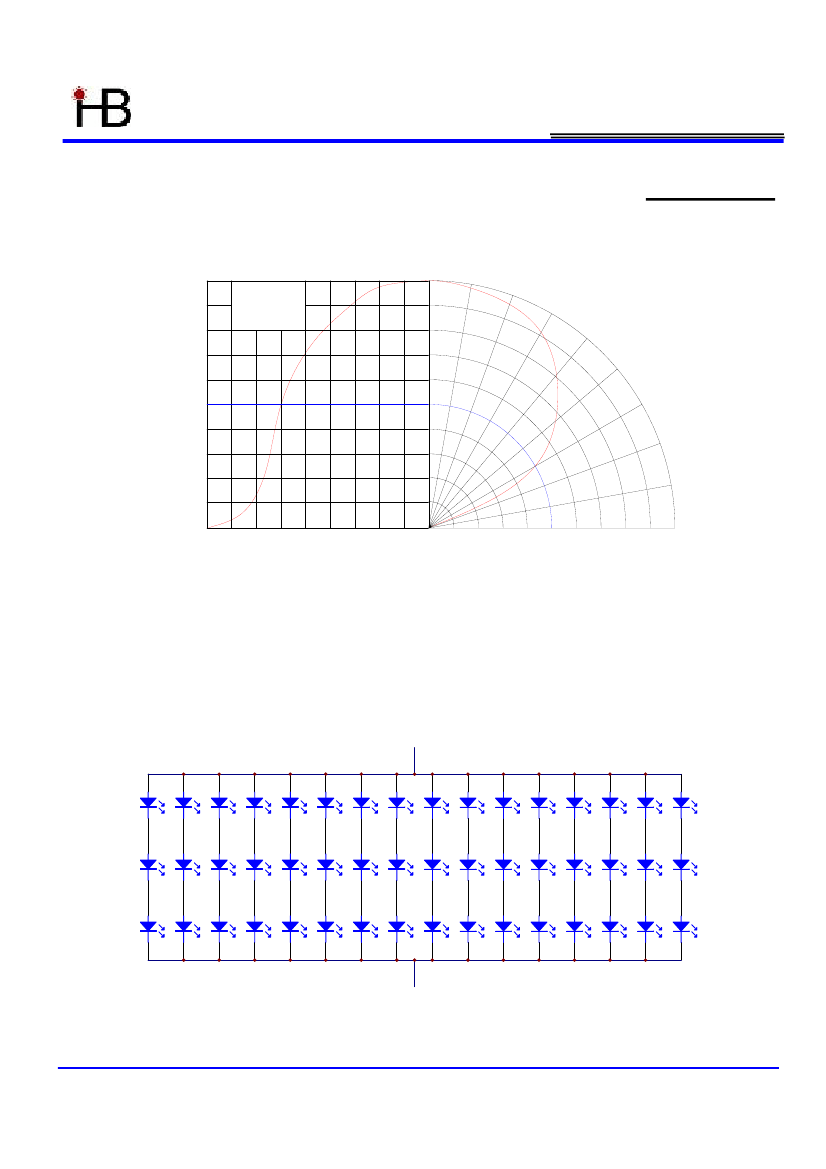

SPECIFICATION
Part No.
Absolute maximum ratings（Ta = 25℃）
Value
Parameter
DC Forward Current
Peak Pulse Current
Power Dissipation
LED Junction Temperature
Operating Temperature
Storage Temperature
ESD Sensitivity
Soldering Temperature
Symbol
IF
Ipeak
Pd
Tj
Topr
Tstr
----
----
Test
Condition
Min.
----
Duty=0.1mS，1kHz
----
----
----
----
HBM
----
Max.
Unit
----
400
mA
----
800
mA
----
3.5
W
----
120
℃
-25
+80
℃
-40
+100
℃
8000
----
V
220℃ for 5 Seconds max
Electrical and optical characteristics
（Ta
= 25℃）
Value
Parameter
Forward Voltage
Luminous Flux
Viewing Angle
Color Temperature
Symbol
VF
Φv
2θ1/2
CCT
Test
Condition
Min.
9.0
----
----
5000
Typ.
9.2
200
120
----
Max.
10
----
----
8000
V
lm
Deg.
K
Unit
IF = 320mA
Luminous Flux Bins（Ta = 25℃）
Bin
Min
Max
R
160
180
S
180
200
T
200
240
U
240
280
Unit: lm
CCT Bins（Ta = 25℃）
Bin
Min
Max
Note
1． Flux is measured with an accuracy of ±15%
2． CCT is measured with an accuracy of ± 200K
3． Forward Voltage is measured with an accuracy of ± 0.15V
Unit: K
W7
5600
6300
W8
6300
7000
W9
7000
8000
W6
5000
5600
Page 3 of 3
