CDRH73NP-101MC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CDRH73NP-101MC

CDRH73NP-101MC: DescriptionGeneral Purpose Inductor, 100uH, 20%, 1 Element, Ferrite-Core, SMD, 3030, CHIP, 3030, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components inductor; File Size261KB，5 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH73NP-101MC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDRH73NP-101MC	-	-	View	Buy Now

CDRH73NP-101MC Overview

General Purpose Inductor, 100uH, 20%, 1 Element, Ferrite-Core, SMD, 3030, CHIP, 3030, HALOGEN FREE AND ROHS COMPLIANT

CDRH73NP-101MC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	3030
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	3030
structure	Magnetically Shielded
core material	FERRITE
DC Resistance	0.79 Ω
Nominal inductance(L)	100 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH73
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	3.2 mm
Package length	7.3 mm
Package form	SMT
Package width	7.3 mm
method of packing	Tape
Maximum rated current	0.5 A
series	CDRH73
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.01 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

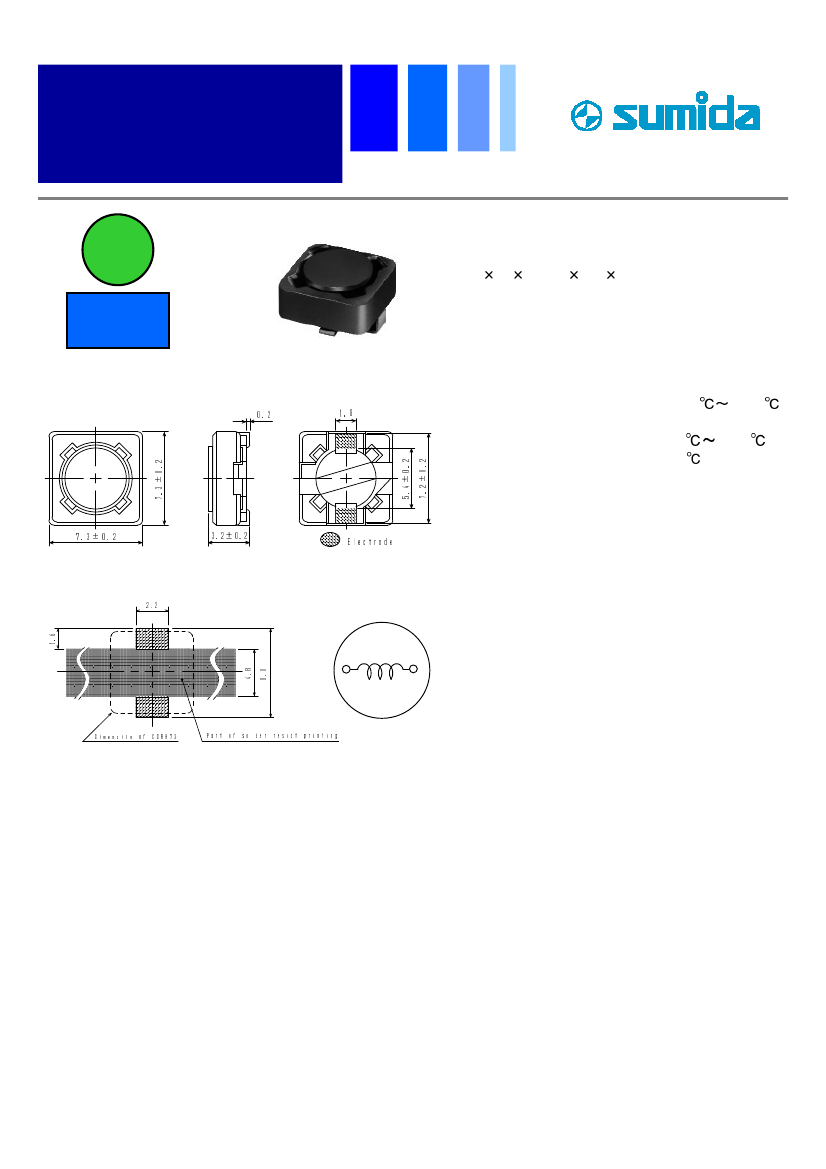

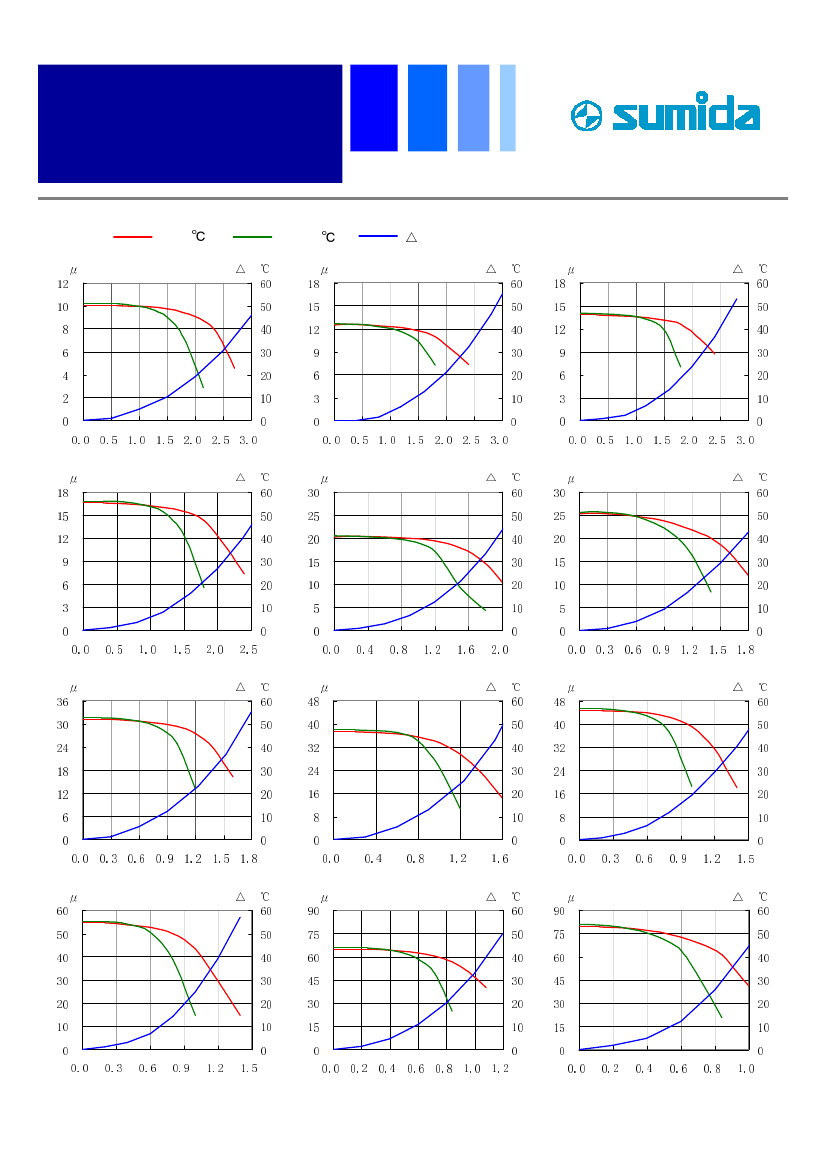

SMD Power Inductor

CDRH73

Description

• Ferrite drum core construction.

• Magnetically shielded.

• L W H: 7.5 7.5 3.4 mm Max.

• Product weight: 0.63g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -40

+100

(including coil’s self temperature rise)

+100

• Storage temperature range: -40

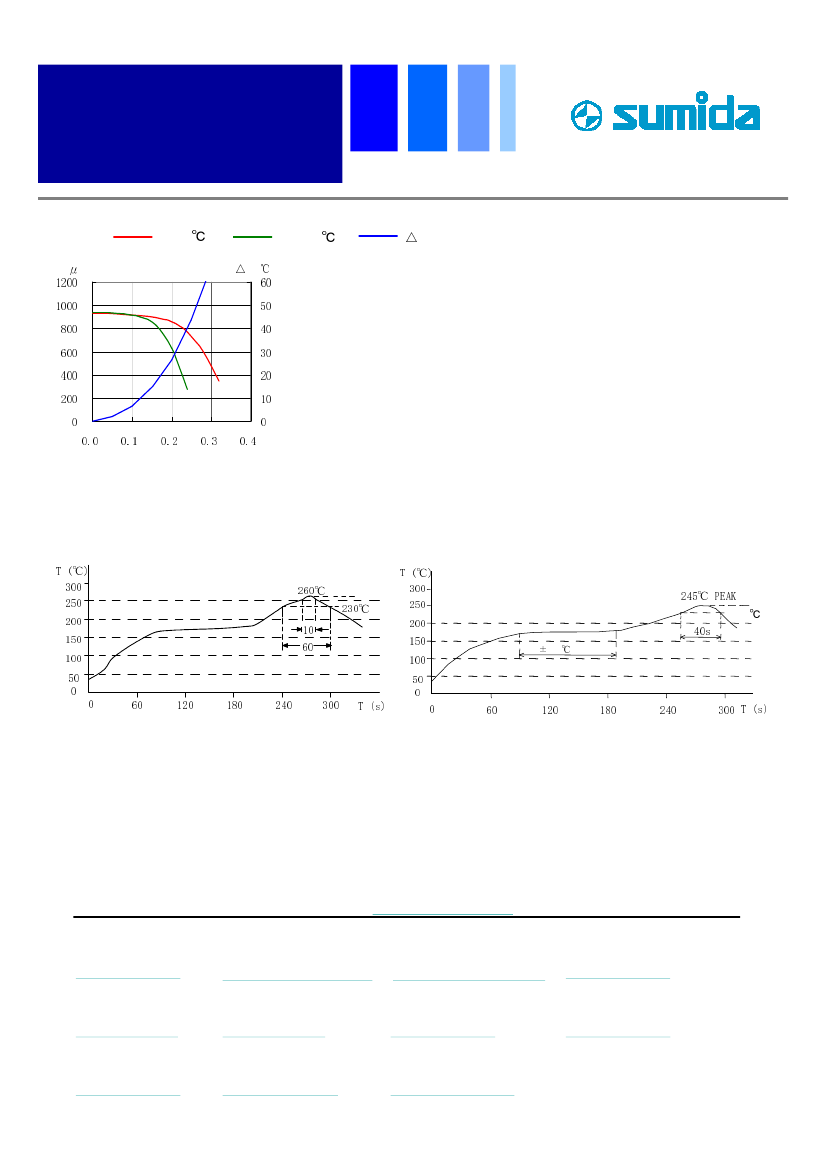

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging

• 12.9”diameter reel

• 1000pcs per reel

RoHS

Halogen

Free

Dimension - [mm]

8.1

2.0

Land pattern and Schematics - [mm]

2.2

Applications

• Ideally used in Notebook PC, LCD TV,DVD,

Game machine, STB ,Projector etc as DC-DC

converter inductors.

Page 1 of 5

Revised: 22-Aug-12

℃

℃ ½℃

× ×

7 5

. .

2 4

± ±

0 0

. .

2 2

edortcelE

gn it n ir p ts is er r ed l os f o tr aP

2.0±2.3

37 H RD C fo n oi s ne mi D

2.0±3.7
